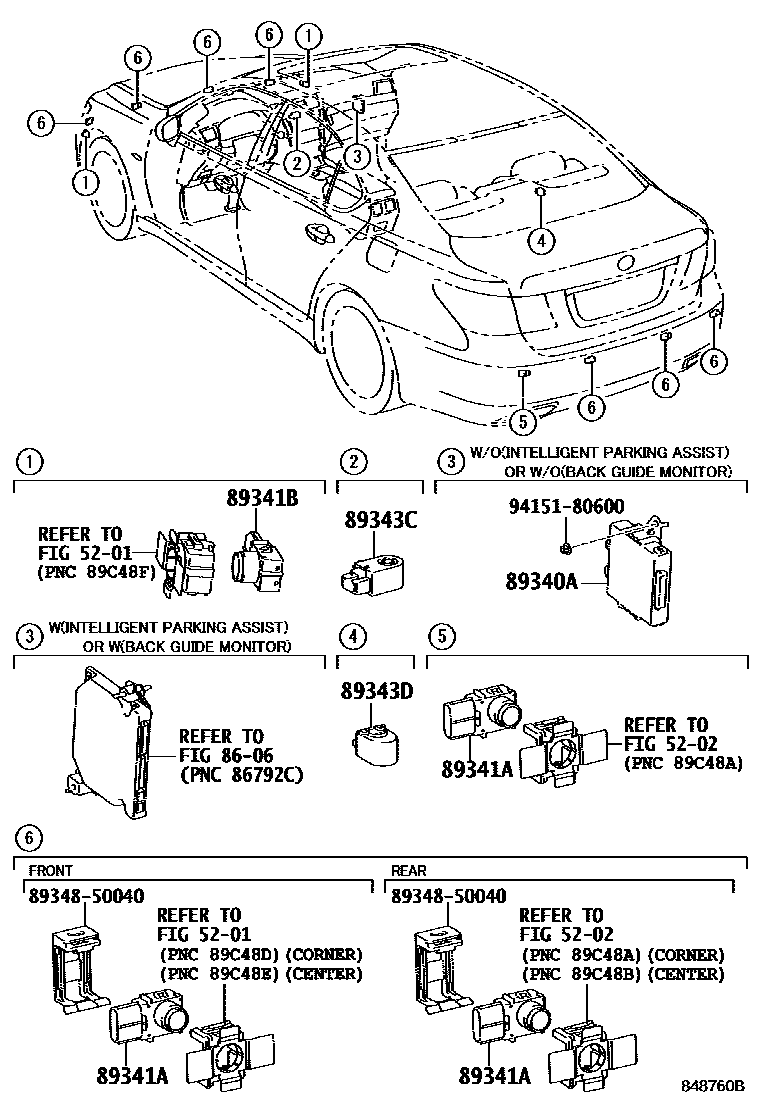

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-50030i200809-200911

BACK MONITOR (REAR TELEVISION CAMERA)-WITH; EMV & NAVIGATION SYSTEM-W(EMV) & W/O(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH

main89340-50040i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH

89341ASENSOR, ULTRASONIC, NO.1

main89341-50060-A1×8i200704-200707

BLUISH PEARL CS.,074

main89341-50060-A2×8i200809-200911

WHITE PEARL CS.,077

main89341-50060-B0×8i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,PREMIUM SILVER,1F2; PREMIUM SILVER,1F2

main89341-50060-B1×8i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,DK.GRAY MC.,1G0; DK.GRAY MC.,1G0

main89341-50060-B2×8i200709-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,FROSTY PEARL MC.,1G5; FROSTY PEARL MC.,1G5

main89341-50060-B3×8i201109-201209

MERCURY GRAY MC.,1H9

main89341-50060-C0×8i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,BLACK,212; BLACK,212

main89341-50060-C1×8i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,BLACK OPAL MC.,214; BLACK OPAL MC.,214

main89341-50060-C2×8i201009-201209

STARLIGHT BLACK GF.,217

main89341-50060-D1×8i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,DK.RED MC.CS.,3R7; DK.RED MC.CS.,3R7

main89341-50060-D2×8i200911-201209

RED MC.CS.,3R1

main89341-50060-E0×8i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,BEIGE ME.,4T1; BEIGE ME.,4T1

main89341-50060-E1×8i200809-200911

SABLE M.M.,4T5

main89341-50060-E2×8i200911-201209

SLEEK ECRU ME.,4U7

main89341-50060-G0×8i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,JADE GREEN ME.,6V0; JADE GREEN ME.,6V0

main89341-50060-G1×8i200911-201209

DEEP PERIDOT MC.,6V6

main89341-50060-J0×8i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,DK.BLUE MC. CC.,8U0; DK.BLUE MC. CC.,8U0

main89341-50060-J1×8i200911-201209

LAPIS LAZULI MC.,8V3

main89341-50060-J2×8i200911-201209

SHADOW SAPPHIRE ME.,8V4

89341BSENSOR, ULTRASONIC, NO.2

main89341-50070-A1×2i200704-200707

BLUISH PEARL CS.,074

main89341-50070-A2×2i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,WHITE PEARL CS.,077; WHITE PEARL CS.,077

main89341-50070-B0×2i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,PREMIUM SILVER,1F2; PREMIUM SILVER,1F2

main89341-50070-B1×2i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,DK.GRAY MC.,1G0; DK.GRAY MC.,1G0

main89341-50070-B2×2i200709-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,FROSTY PEARL MC.,1G5; FROSTY PEARL MC.,1G5

main89341-50070-B3×2i201109-201209

MERCURY GRAY MC.,1H9

main89341-50070-C0×2i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,BLACK,212; BLACK,212

main89341-50070-C1×2i200809-200911

BLACK OPAL MC.,214

main89341-50070-C2×2i201009-201209

STARLIGHT BLACK GF.,217

main89341-50070-D1×2i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,DK.RED MC.CS.,3R7; DK.RED MC.CS.,3R7

main89341-50070-D2×2i200911-201209

RED MC.CS.,3R1

main89341-50070-E0×2i200809-200911

BEIGE ME.,4T1

main89341-50070-E1×2i200911-201009

SABLE M.M.,4T5

main89341-50070-E2×2i200911-201209

SLEEK ECRU ME.,4U7

main89341-50070-G0×2i200809-200911

JADE GREEN ME.,6V0

main89341-50070-G1×2i200911-201209

DEEP PERIDOT MC.,6V6

main89341-50070-J0×2i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH,DK.BLUE MC. CC.,8U0; DK.BLUE MC. CC.,8U0

main89341-50070-J1×2i200911-201209

LAPIS LAZULI MC.,8V3

main89341-50070-J2×2i200911-201209

SHADOW SAPPHIRE ME.,8V4

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-50050i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-48020i200704-200809

BACK MONITOR (REAR TELEVISION CAMERA)-WITH

8934850040RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50040

9415180600

main94151-80600

10 parts on this diagram · 4 diagrams in section
