ARMREST & VISOR
7404ASH RECEPTACLE
74207PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH
ASH TRAY-FRONT 1,REAR 2
ASH TRAY-WITHOUT
74208PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH
ASH TRAY-FRONT 1,REAR 2
ASH TRAY-WITHOUT
74231PANEL, FRONT ARMREST BASE, UPPER RH
GRAY,TRIM1#
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
GRAY,TRIM08,15
SILVER,TRIM05,1#
SILVER,TRIM05,14
BROWN,TRIM02,2#
BROWN,TRIM07
MD.GRAY,TRIM1#
GRAY,TRIM1#
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
GRAY,TRIM08,15
SILVER,TRIM05,14
BROWN,TRIM02,2#
BROWN,TRIM07
74232PANEL, FRONT ARMREST BASE, UPPER LH
GRAY,TRIM1#
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
GRAY,TRIM08,15
SILVER,TRIM05,1#
SILVER,TRIM05,14
BROWN,TRIM02,2#
BROWN,TRIM07
MD.GRAY,TRIM1#
GRAY,TRIM1#
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
GRAY,TRIM08,15
SILVER,TRIM05,14
BROWN,TRIM02,2#
BROWN,TRIM07
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
GRAY,TRIM1#
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
ASH TRAY-FRONT 1,REAR 2,SILVER,TRIM05,14
SILVER,TRIM05,1#
BROWN,TRIM02,2#
ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM02,2#
BROWN,TRIM07
ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM07
GRAY,TRIM08,15
SILVER,TRIM05,14
ASH TRAY-WITHOUT,SILVER,TRIM05,1#
ASH TRAY-WITHOUT,BROWN,TRIM02,2#
BROWN,TRIM02,2#
BROWN,TRIM07
ASH TRAY-WITHOUT,BROWN,TRIM07
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
GRAY,TRIM1#
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
ASH TRAY-FRONT 1,REAR 2,SILVER,TRIM05,14
SILVER,TRIM05,1#
ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM02,2#
BROWN,TRIM02,2#
BROWN,TRIM07
ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM07
GRAY,TRIM08,15
SILVER,TRIM05,14
ASH TRAY-WITHOUT,SILVER,TRIM05,1#
BROWN,TRIM02,2#
ASH TRAY-WITHOUT,BROWN,TRIM02,2#
BROWN,TRIM07
ASH TRAY-WITHOUT,BROWN,TRIM07
8401SWITCH & RELAY & COMPUTER
9046710203
main90467-10203

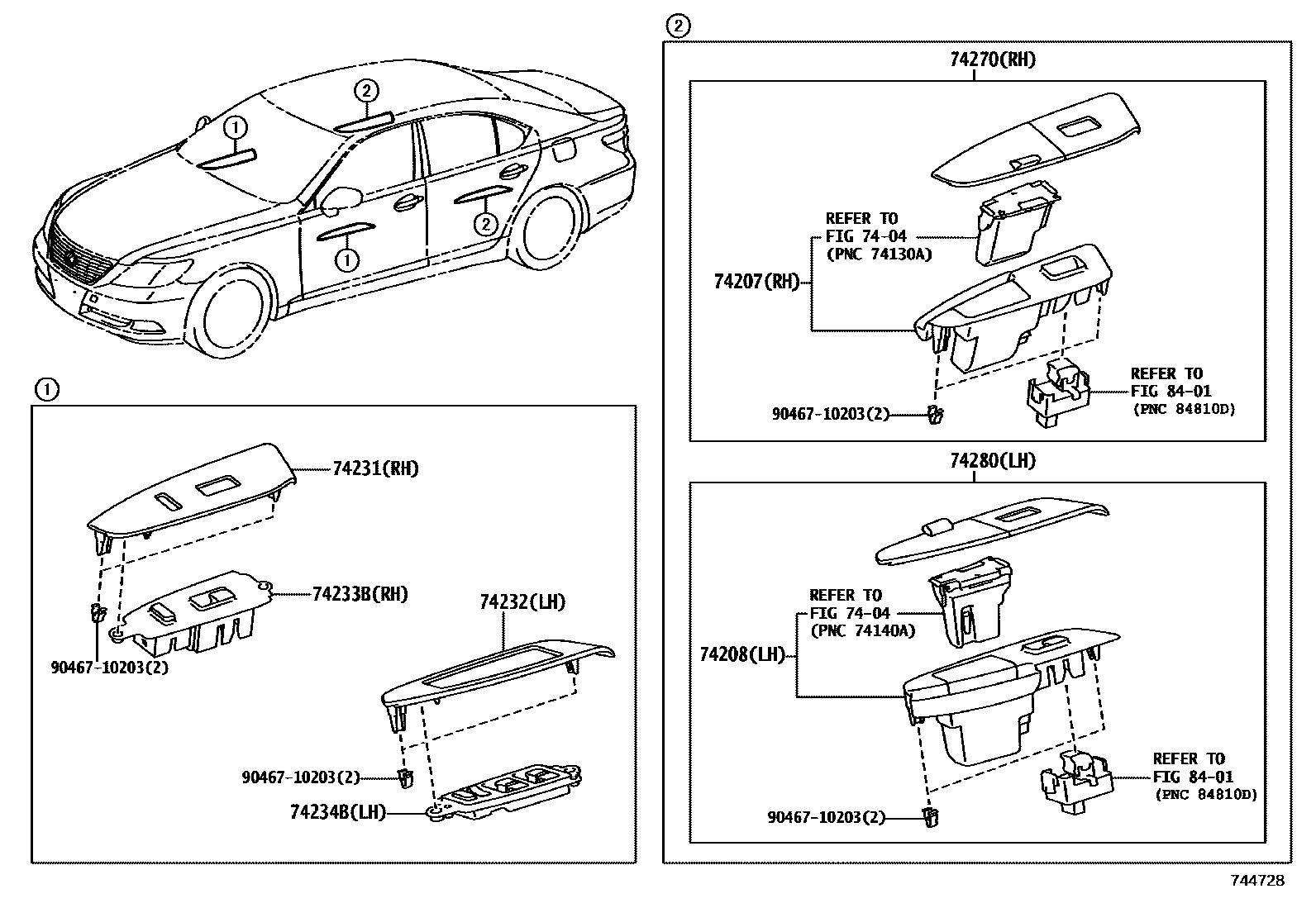

11 parts on this diagram · 3 diagrams in section
