6705REAR DOOR PANEL & GLASS

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-50040i200809-200911

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-50040i200704-200809

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main67607-50230-A0supersedes 67607-50240-A0i200809-200911

BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),IVORY,TRIM00; BEIJING SPEC,IVORY,TRIM00; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),IVORY,TRIM00; CHINA(EXCEPT BEIJING) SPEC,IVORY,TRIM00; IVORY,TRIM00; WITH(REAR POWER SEAT)&INTERIOR PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00; WITH(REAR POWER SEAT)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00

main67607-50230-A1supersedes 67607-50240-A1i200911-201209

BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(LOWER)&AUDIO-DVD CHANGER,MARK LEVINSON,MELLOW WHITE,TRIM07; BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&AUDIO-DVD CHANGER,MARK LEVINSON,MELLOW WHITE,TRIM07; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(LOWER)&AUDIO-DVD CHANGER,MARK LEVINSON,MELLOW WHITE,TRIM07; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&AUDIO-DVD CHANGER,MARK LEVINSON,MELLOW WHITE,TRIM07; MELLOW WHITE,TRIM07; WITH(REAR POWER SEAT)&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),MELLOW WHITE,TRIM07; WITH(REAR POWER SEAT),MELLOW WHITE,TRIM07

main67607-50230-A3supersedes 67607-50240-A3i200911-201209

BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(LOWER)&AUDIO-DVD CHANGER,MARK LEVINSON,WATER WHITE,TRIM1#; BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&AUDIO-DVD CHANGER,MARK LEVINSON,WATER WHITE,TRIM1#; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(LOWER)&AUDIO-DVD CHANGER,MARK LEVINSON,WATER WHITE,TRIM1#; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&AUDIO-DVD CHANGER,MARK LEVINSON,WATER WHITE,TRIM1#; WATER WHITE,TRIM1#; WITH(REAR POWER SEAT)&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),WATER WHITE,TRIM1#; WITH(REAR POWER SEAT),WATER WHITE,TRIM1#

main67607-50230-B0supersedes 67607-50240-B0i200704-200809

BEIJING SPEC&WITH(REAR COOLER),LT.GRAY,TRIM1#; BEIJING SPEC,LT.GRAY,TRIM1#; CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER),LT.GRAY,TRIM1#; CHINA(EXCEPT BEIJING) SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#; WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1#; WITH(REAR POWER SEAT)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1#

main67607-50230-C0supersedes 67607-50240-C0i200809-200911

BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM05,12,2#; BEIJING SPEC,BLACK,TRIM05,12,2#; BLACK,TRIM05,12,2#; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM05,12,2#; CHINA(EXCEPT BEIJING) SPEC,BLACK,TRIM05,12,2#; WITH(REAR POWER SEAT)&INTERIOR PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM05,12,2#; WITH(REAR POWER SEAT)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM05,12,2#

main67607-50240-A1i200911-201209

INSTRUMENT FINISH PANEL-NOMAL TYPE(THERMO PLASTIC URETHANE),MELLOW WHITE,TRIM07; MELLOW WHITE,TRIM07

main67607-50240-A3i200911-201209

INSTRUMENT FINISH PANEL-NOMAL TYPE(THERMO PLASTIC URETHANE),WATER WHITE,TRIM1#; WATER WHITE,TRIM1#

main67607-50240-C0i200911-201209

BLACK,TRIM00,02,05,06,08,2#; INSTRUMENT FINISH PANEL-NOMAL TYPE(THERMO PLASTIC URETHANE),BLACK,TRIM00,02,05,06,08,2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main67608-50230-A0supersedes 67608-50240-A0i200704-200809

BEIJING SPEC&WITH(REAR COOLER),IVORY,TRIM00; BEIJING SPEC,IVORY,TRIM00; CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER),IVORY,TRIM00; CHINA(EXCEPT BEIJING) SPEC,IVORY,TRIM00; IVORY,TRIM00; WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00; WITH(REAR POWER SEAT)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,IVORY,TRIM00

main67608-50230-A1supersedes 67608-50240-A1i200911-201209

BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(LOWER)&AUDIO-DVD CHANGER,MARK LEVINSON,MELLOW WHITE,TRIM07; BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&AUDIO-DVD CHANGER,MARK LEVINSON,MELLOW WHITE,TRIM07; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(LOWER)&AUDIO-DVD CHANGER,MARK LEVINSON,MELLOW WHITE,TRIM07; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&AUDIO-DVD CHANGER,MARK LEVINSON,MELLOW WHITE,TRIM07; MELLOW WHITE,TRIM07; WITH(REAR POWER SEAT)&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),MELLOW WHITE,TRIM07; WITH(REAR POWER SEAT),MELLOW WHITE,TRIM07

main67608-50230-A3supersedes 67608-50240-A3i200911-201209

BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(LOWER)&AUDIO-DVD CHANGER,MARK LEVINSON,WATER WHITE,TRIM1#; BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&AUDIO-DVD CHANGER,MARK LEVINSON,WATER WHITE,TRIM1#; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(LOWER)&AUDIO-DVD CHANGER,MARK LEVINSON,WATER WHITE,TRIM1#; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&AUDIO-DVD CHANGER,MARK LEVINSON,WATER WHITE,TRIM1#; WATER WHITE,TRIM1#; WITH(REAR POWER SEAT)&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),WATER WHITE,TRIM1#; WITH(REAR POWER SEAT),WATER WHITE,TRIM1#

main67608-50230-B0supersedes 67608-50240-B0i200704-200809

BEIJING SPEC&WITH(REAR COOLER),LT.GRAY,TRIM1#; BEIJING SPEC,LT.GRAY,TRIM1#; CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER),LT.GRAY,TRIM1#; CHINA(EXCEPT BEIJING) SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#; WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1#; WITH(REAR POWER SEAT)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LT.GRAY,TRIM1#

main67608-50230-C0supersedes 67608-50240-C0i200809-200911

BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM05,12,2#; BEIJING SPEC,BLACK,TRIM05,12,2#; BLACK,TRIM05,12,2#; CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM05,12,2#; CHINA(EXCEPT BEIJING) SPEC,BLACK,TRIM05,12,2#; WITH(REAR POWER SEAT)&INTERIOR PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM05,12,2#; WITH(REAR POWER SEAT)&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,BLACK,TRIM05,12,2#

main67608-50240-A1i200911-201209

INSTRUMENT FINISH PANEL-NOMAL TYPE(THERMO PLASTIC URETHANE),MELLOW WHITE,TRIM07; MELLOW WHITE,TRIM07

main67608-50240-A3i200911-201209

INSTRUMENT FINISH PANEL-NOMAL TYPE(THERMO PLASTIC URETHANE),WATER WHITE,TRIM1#; WATER WHITE,TRIM1#

main67608-50240-C0i200911-201209

BLACK,TRIM00,02,05,06,08,2#; INSTRUMENT FINISH PANEL-NOMAL TYPE(THERMO PLASTIC URETHANE),BLACK,TRIM00,02,05,06,08,2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-33060i200704-200809

PLATED

main69227-50050i200804-200809

*CR,RUSSIA SPEC

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-33040i200911

PLATED

main69228-50030i200804-200809

*CR,RUSSIA SPEC

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-33090i200809-200911

PLATED

main69210-50080i200809-200911

PLATED,RUSSIA SPEC

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-33060i200911-201209

PLATED

main69220-50050i200804-200809

PLATED,RUSSIA SPEC

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-53010i200704-200809

RH

main69242-53010i200704-200809

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-50030i200704-200809

RH

main69242-50030i200809-200911

LH

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30050-A0i200809-200911

IVORY,TRIM00

main69283-30050-A1i200704-200809

MELLOW WHITE,TRIM01

main69283-30050-A3i200911-201209

WATER WHITE,TRIM1#

main69283-30050-B0i200704-200809

LT.GRAY,TRIM1#

main69283-30050-C0i200911-201209

BLACK,TRIM00,02,05,06,08,2#; BLACK,TRIM02,05,2#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30050-A0i200809-200911

IVORY,TRIM00

main69284-30050-A1i200911-201209

MELLOW WHITE,TRIM07

main69284-30050-A3i200911-201209

WATER WHITE,TRIM1#

main69284-30050-B0i200809-200911

LT.GRAY,TRIM10

main69284-30050-C0i200809-200911

BLACK,TRIM05,12,2#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i200911-201209

69330LOCK ASSY, REAR DOOR, RH

main69050-50091i200809-200911

main69050-50101i200704-200809

main69050-50110i200911-201209

AUSTRALIA SPEC; FORMOSA SPEC; HONG KONG SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; MALAYSIA SPEC; NEW ZEALAND SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SINGAPORE SPEC; SOUTH AMERICA SPEC; THAILAND SPEC; TURKY SPEC

main69050-50120i200911-201209

main69050-50130i200911-201209

main69050-50080i200809-200911

AUSTRALIA SPEC; FORMOSA SPEC; HONG KONG SPEC; NEW ZEALAND SPEC; RUSSIA SPEC; SINGAPORE SPEC

69340LOCK ASSY, REAR DOOR, LH

main69060-50091i200704-200809

main69060-50101i200809-200911

main69060-50110i200911-201209

AUSTRALIA SPEC; FORMOSA SPEC; HONG KONG SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; MALAYSIA SPEC; NEW ZEALAND SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SINGAPORE SPEC; SOUTH AMERICA SPEC; THAILAND SPEC; TURKY SPEC

main69060-50120i200911-201209

main69060-50130i200911-201209

main69060-50080i200809-200911

AUSTRALIA SPEC; FORMOSA SPEC; HONG KONG SPEC; NEW ZEALAND SPEC; RUSSIA SPEC; SINGAPORE SPEC

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-30060×2i200911

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-33010×2i200809-200911

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-50030i200911-201209

main69730-50040i200911-201209

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-50030i200911-201209

main69730-50040i200809-200911

69742CKNOB, FRONT DOOR LOCK CONTROL, LH

main69742-50020-A0i200809-200911

IVORY,TRIM00

main69742-50020-A1i200704-200809

MELLOW WHITE,TRIM01

main69742-50020-A3i200911-201209

WATER WHITE,TRIM1#

main69742-50020-B0i200704-200809

LT.GRAY,TRIM1#

main69742-50020-C0i200704-200809

BLACK,TRIM05,2#

69743AKNOB, REAR DOOR LOCK CONTROL, RH

main69741-50020-A0i200809-200911

IVORY,TRIM00

main69741-50020-A1i200911-201209

MELLOW WHITE,TRIM07

main69741-50020-A3i200911-201209

WATER WHITE,TRIM1#

main69741-50020-B0i200704-200809

LT.GRAY,TRIM1#

main69741-50020-C0i200911-201209

BLACK,TRIM00,02,05,06,08,2#; BLACK,TRIM02,05,2#

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-50050i200911-201209

main69770-50060i200704-200809

main69770-50080i200911-201209

AUSTRALIA SPEC; FORMOSA SPEC; HONG KONG SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; MALAYSIA SPEC; NEW ZEALAND SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SINGAPORE SPEC; SOUTH AMERICA SPEC; THAILAND SPEC; TURKY SPEC

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-50050i200704-200809

main69770-50060i200704-200809

main69770-50080i200911-201209

AUSTRALIA SPEC; FORMOSA SPEC; HONG KONG SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; MALAYSIA SPEC; NEW ZEALAND SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SINGAPORE SPEC; SOUTH AMERICA SPEC; THAILAND SPEC; TURKY SPEC

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89743EBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-53010i200911-201209

RH

main89743-53020i200809-200911

LH

9011906786

main90119-06786

9014860022

main90148-60022

9014880066

main90148-80066

9015940202

main90159-40202

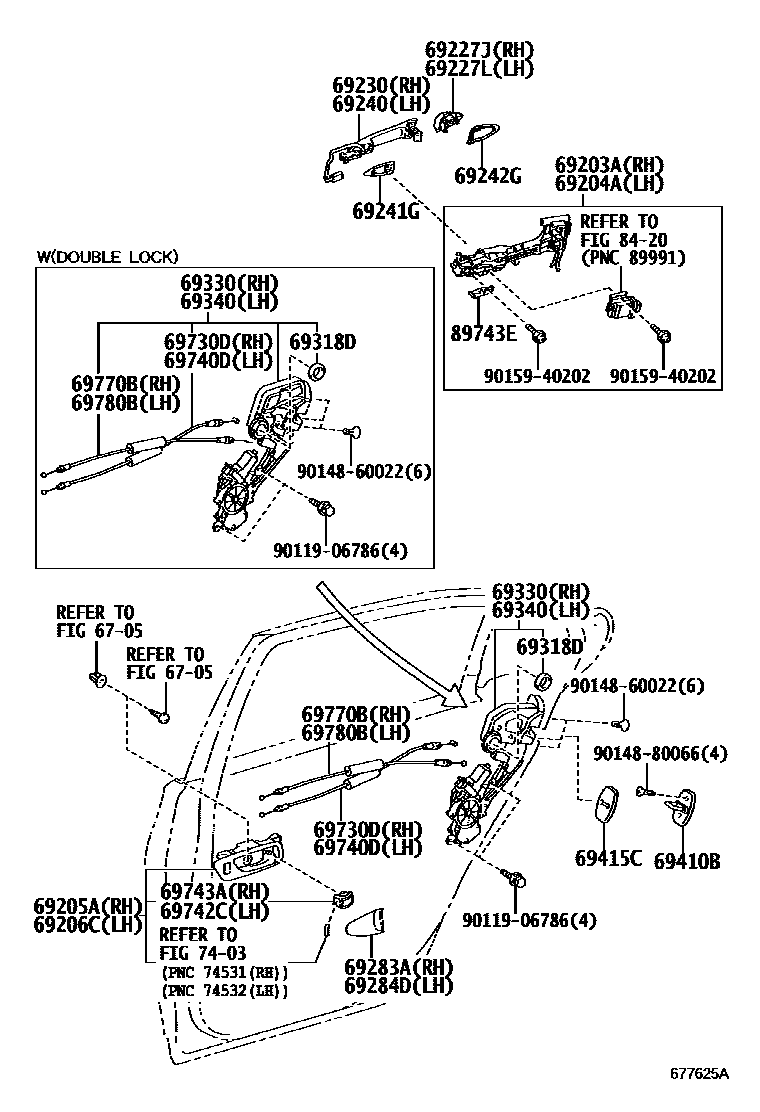

REAR DOOR LOCK & HANDLE
