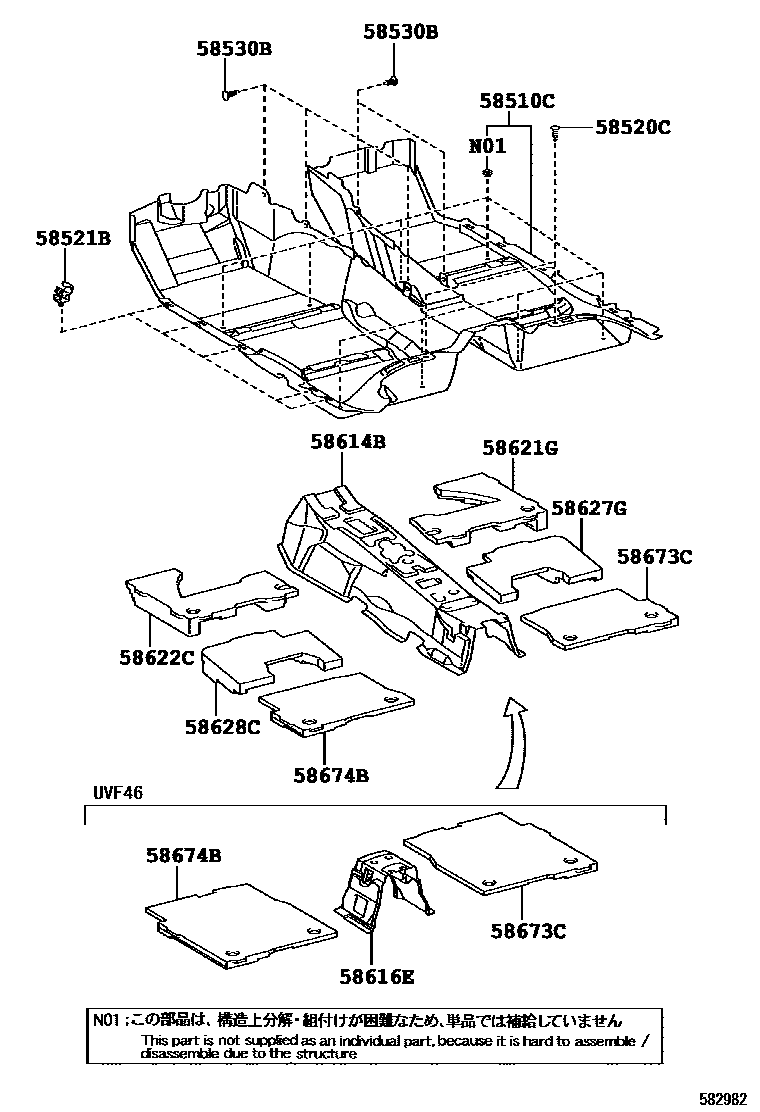

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
IVORY,TRIM00
MELLOW WHITE,TRIM01,05
IVORY,TRIM02
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM00
MELLOW WHITE,TRIM01,05
IVORY,TRIM02
LT.GRAY,TRIM1#
BLACK,TRIM2#
REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),IVORY,TRIM00; REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),IVORY,TRIM00
WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08; WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM05,07; WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08; WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM05,07
WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02; WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02
REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),LT.GRAY,TRIM1#; REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),LT.GRAY,TRIM1#
REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),BLACK,TRIM2#; REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),BLACK,TRIM2#
REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),IVORY,TRIM00; REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),IVORY,TRIM00
WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08; WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08
WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02; WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02
REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),LT.GRAY,TRIM1#; REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),LT.GRAY,TRIM1#
REAR ARMREST-W/OTTOMAN CIGARETTE),BLACK,TRIM2#; REAR ARMREST-WITH(W/OTTOMAN 12V),BLACK,TRIM2#
BEIJING SPEC,IVORY,TRIM00; CHINA(EXCEPT BEIJING) SPEC,IVORY,TRIM00
BEIJING SPEC,MELLOW WHITE,TRIM01,05; CHINA(EXCEPT BEIJING) SPEC,MELLOW WHITE,TRIM01,05
BEIJING SPEC,LT.GRAY,TRIM1#; CHINA(EXCEPT BEIJING) SPEC,LT.GRAY,TRIM1#
BEIJING SPEC,BLACK,TRIM2#; CHINA(EXCEPT BEIJING) SPEC,BLACK,TRIM2#
BEIJING SPEC&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),IVORY,TRIM00; BEIJING SPEC&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),IVORY,TRIM00; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),IVORY,TRIM00; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),IVORY,TRIM00
BEIJING SPEC&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05; BEIJING SPEC&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),MELLOW WHITE,TRIM01,05; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),MELLOW WHITE,TRIM01,05
BEIJING SPEC&WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM00,02,06; BEIJING SPEC&WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM00,02,06; CHINA(EXCEPT BEIJING) SPEC&WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM00,02,06; CHINA(EXCEPT BEIJING) SPEC&WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM00,02,06
BEIJING SPEC&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),LT.GRAY,TRIM1#; BEIJING SPEC&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),LT.GRAY,TRIM1#; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER),LT.GRAY,TRIM1#; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET),LT.GRAY,TRIM1#
BEIJING SPEC&REAR ARMREST-W/OTTOMAN CIGARETTE),BLACK,TRIM2#; BEIJING SPEC&REAR ARMREST-WITH(W/OTTOMAN 12V),BLACK,TRIM2#; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-W/OTTOMAN CIGARETTE),BLACK,TRIM2#; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(W/OTTOMAN 12V),BLACK,TRIM2#
WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08; WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM05,07
WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02
WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM1#,2#
WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08
WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02
WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM1#,2#
BEIJING SPEC&WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08; CHINA(EXCEPT BEIJING) SPEC&WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08
BEIJING SPEC&WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02; CHINA(EXCEPT BEIJING) SPEC&WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02
BEIJING SPEC&WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM1#,2#; CHINA(EXCEPT BEIJING) SPEC&WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM1#,2#
58520CCLIP(FOR FRONT FLOOR CARPET)
BEIJING SPEC&REAR ARMREST-W/OTTOMAN CIGARETTE),LT.GRAY; BEIJING SPEC&REAR ARMREST-WITH(W/OTTOMAN 12V),LT.GRAY; BEIJING SPEC,LT.GRAY; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-W/OTTOMAN CIGARETTE),LT.GRAY; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(W/OTTOMAN 12V),LT.GRAY; CHINA(EXCEPT BEIJING) SPEC,LT.GRAY; LT.GRAY
58521BHOOK, FLOOR CARPET
BEIJING SPEC; BEIJING SPEC&REAR ARMREST-W/OTTOMAN CIGARETTE); BEIJING SPEC&REAR ARMREST-WITH(W/OTTOMAN 12V); CHINA(EXCEPT BEIJING) SPEC; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-W/OTTOMAN CIGARETTE); CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(W/OTTOMAN 12V)
58530BCLIP(FOR FRONT FLOOR CARPET)
BEIJING SPEC&REAR ARMREST-W/OTTOMAN CIGARETTE),BLACK; BEIJING SPEC&REAR ARMREST-WITH(W/OTTOMAN 12V),BLACK; BEIJING SPEC,BLACK; BLACK; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-W/OTTOMAN CIGARETTE),BLACK; CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(W/OTTOMAN 12V),BLACK; CHINA(EXCEPT BEIJING) SPEC,BLACK
58614BSHEET, CENTER FLOOR SILENCER
58616ESHEET, CENTER FLOOR SILENCER, CENTER
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
58627GPAD, CENTER FLOOR SILENCER, REAR RH
58628CPAD, CENTER FLOOR SILENCER, REAR LH
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
12 parts on this diagram · 1 diagram in section
