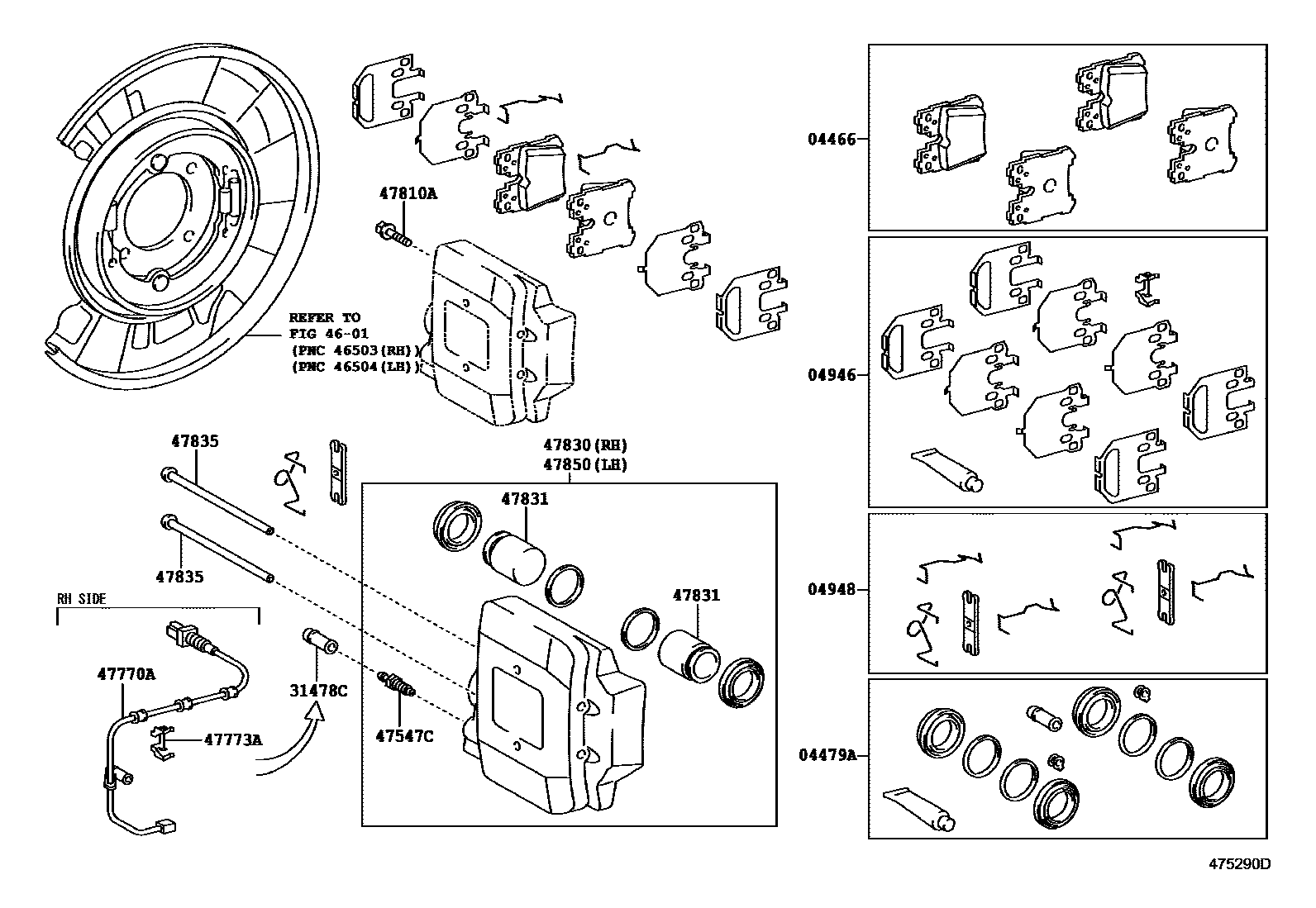

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0W020i200911-201208

MARK TEXTAR T4146

main04466-50170i201208-201209

MARK TEXTAR T4146

main04466-50150i200801-200809

MARK ADVICS PV565H,FORMOSA SPEC; MARK ADVICS PV565H,HONG KONG SPEC; MARK ADVICS PV565H,SINGAPORE SPEC

main04466-50160i201101-201209

MARK ADVICS PV565H,FORMOSA SPEC; MARK ADVICS PV565H,HONG KONG SPEC; MARK ADVICS PV565H,SINGAPORE SPEC

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50180i200704-200809

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-50070i200809-200911

main04946-50080i200704-200809

FORMOSA SPEC; HONG KONG SPEC; SINGAPORE SPEC

main04946-50110i200911-201012

FORMOSA SPEC; HONG KONG SPEC; SINGAPORE SPEC

04948FITTING KIT, DISC BRAKE, REAR

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010i200809-200911

4601PARKING BRAKE & CABLE

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010×2i200911

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-50100i200704-200809

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030×2i200704-200809

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main91552-L1245×4i200809-200911

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-50150i200704-200809

47831PISTON, REAR DISC BRAKE

main47831-50140×4i200704-200809

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140×4i200704-200809

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-50150i200704-200809

14 parts on this diagram · 2 diagrams in section
