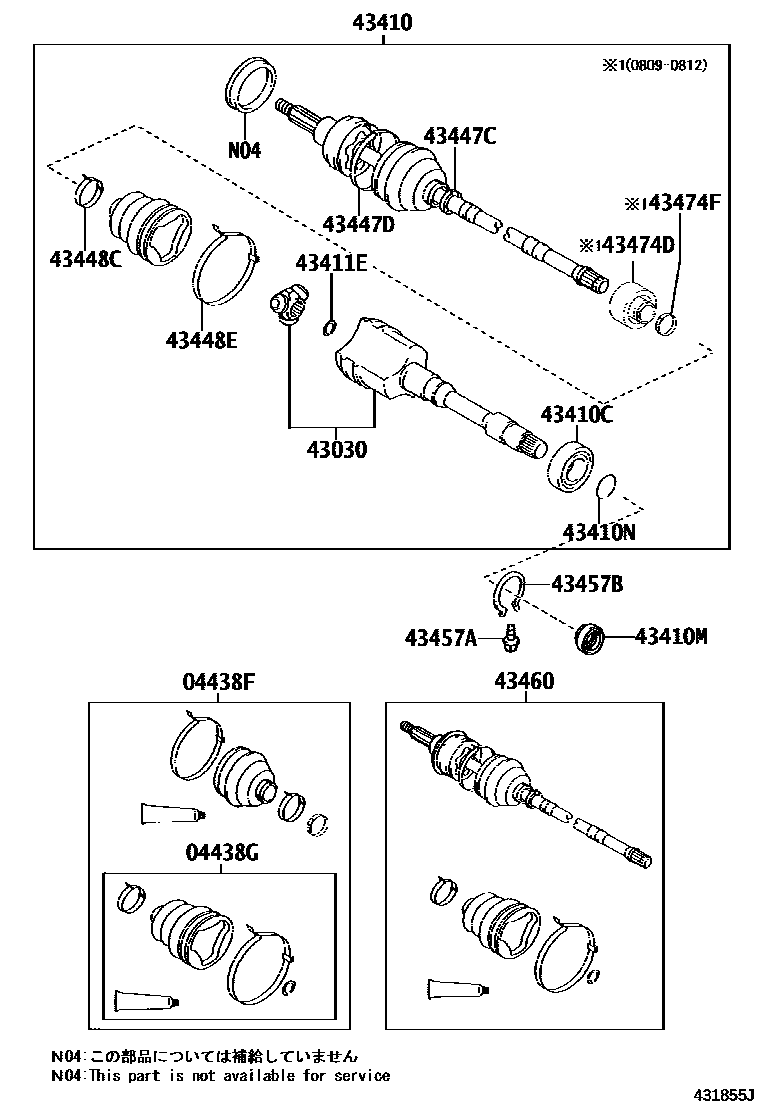

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-50010iUVF4#200704-200806

main04427-50020iUVF4#200806-201007

main04427-50040iUVF4#201008

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-50030iUVF4#200704-200911

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-50010iUVF4#200704-201209

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-50011iUVF4#200704-200812

main43410-50012iUVF4#200812-201007

main43410-50013iUVF4#201008

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iUVF4#200704-200805

main90363-36010iUVF4#200806-200911

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35060iUVF4#200704-201209

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iUVF4#200704-200911

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-07020iUVF4#200704-200911

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-07080iUVF4#200704-200911

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05270iUVF4#200704-200911

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-22020iUVF4#200704-201208

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42346-22010iUVF4#200704-201208

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iUVF4#200704-200911

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iUVF4#200704-200911

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59645iUVF4#200704-200811

main43460-59646iUVF4#200812-201008

main43460-59647iUVF4#201008-201209

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-50010iUVF4#200704-200812

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-22020iUVF4#200806-200812

main42345-50040iUVF4#200704-200806

17 parts on this diagram · 2 diagrams in section
