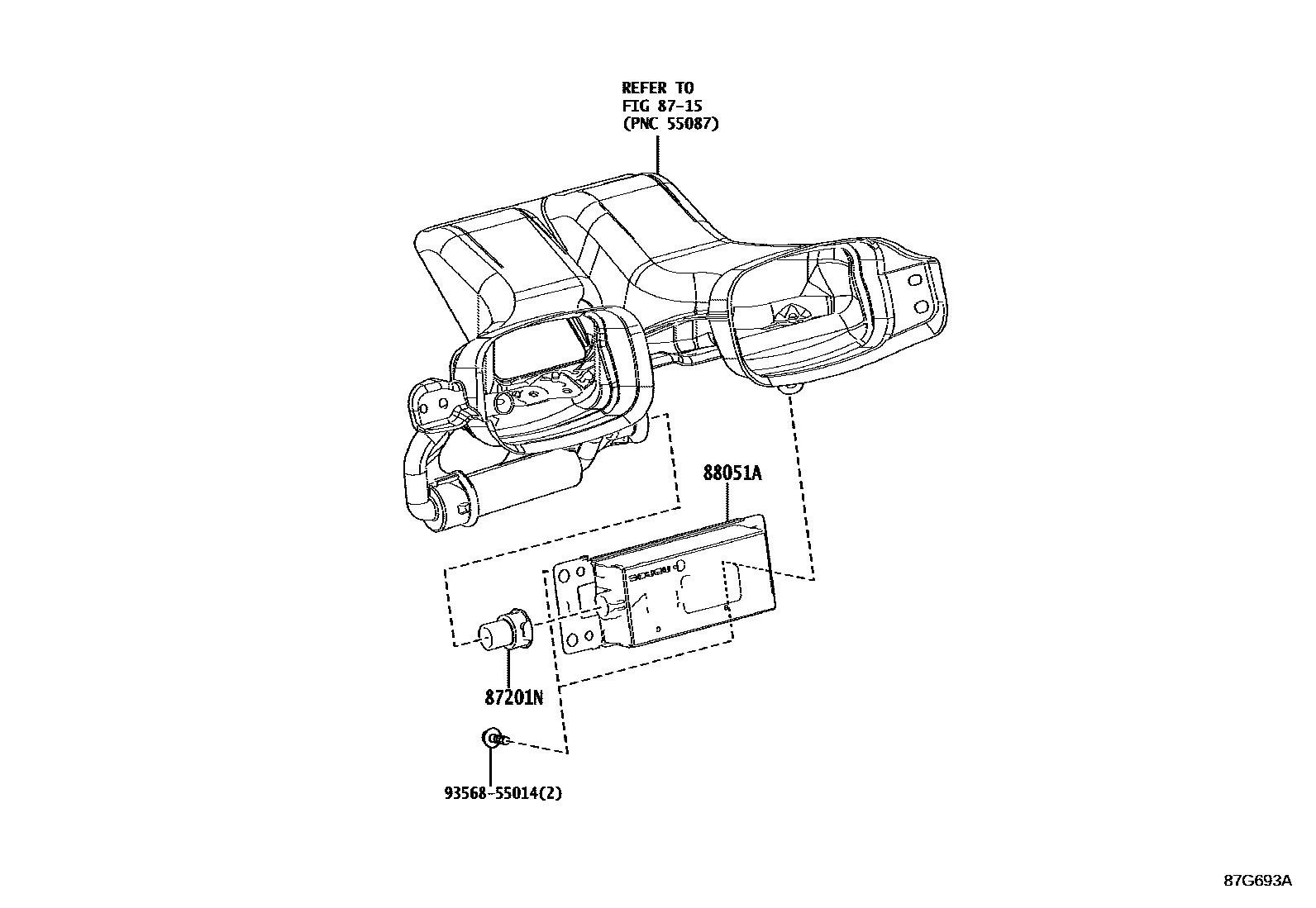

AIR PURIFIER OR ION GENERATOR

0001 1 0003 1

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-50010iGSF50,GVF50,VXFA50201710-202010

88051AGENERATOR SUB-ASSY,ION

main88051-28060iGSF50,GVF50,VXFA50201710-202010

main88051-48010iGSF50..GEN202111-202509

9356855014

main93568-55014

4 parts on this diagram · 2 diagrams in section
