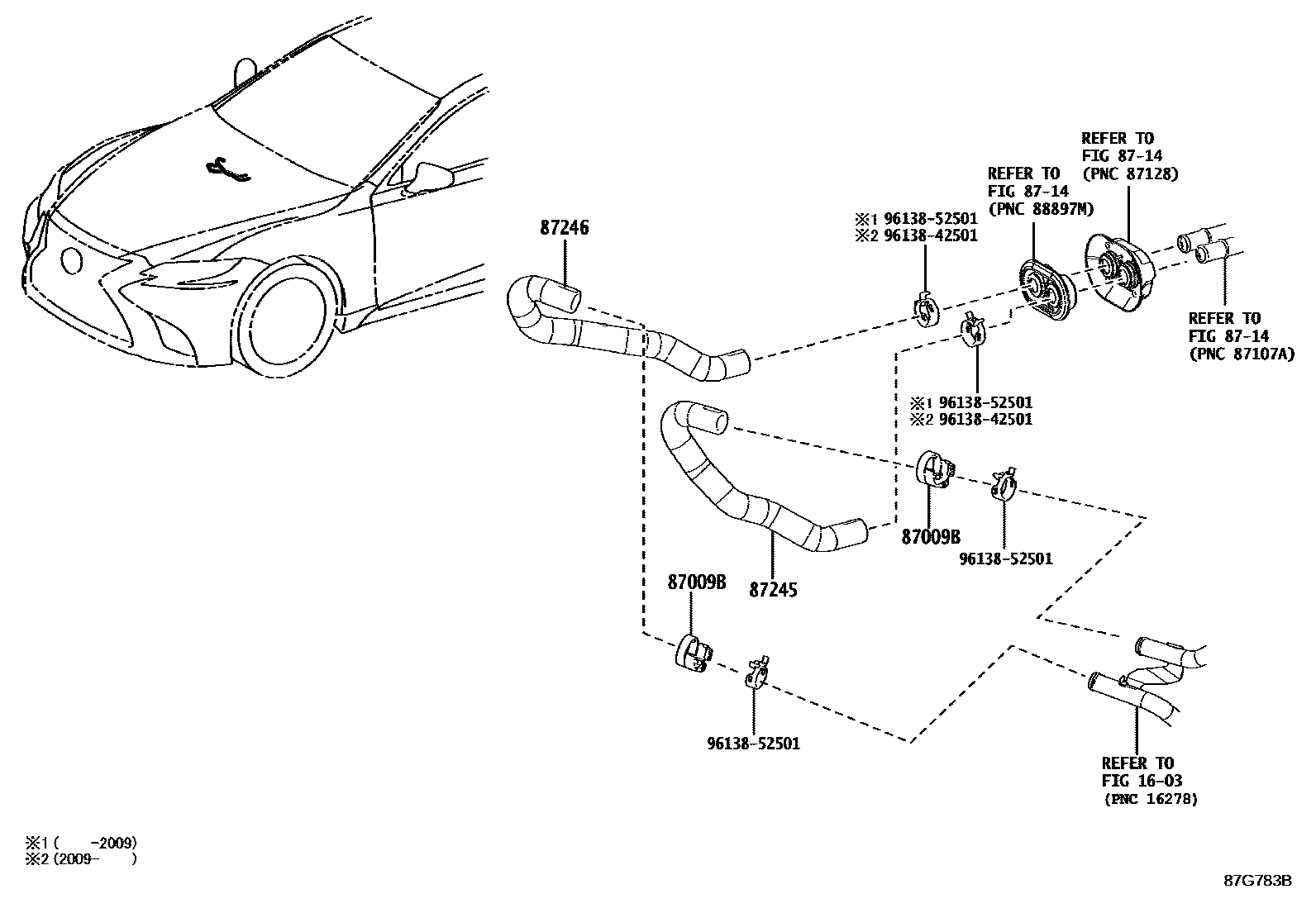

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0003 1 0005 1 0007 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87009BHOSE SET, WATER

main87009-11010×2iGSF50..GEN202010-202509

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-11030iGVF50201710-202010

main87245-50470iVXFA50..LHD201712-202010

main87245-50500iGSF50201710-202010

main87245-50600iVXFA50..RHD202011

87246HOSE, HEATER WATER, OUTLET

main87245-11040iGVF50202010

main87245-50460iVXFA50..LHD201712-202010

main87245-50510iGSF50201710-202010

main87245-50590iVXFA50..RHD201712-202010

9613842501

main96138-42501

9613852501

main96138-52501

7 parts on this diagram · 4 diagrams in section
