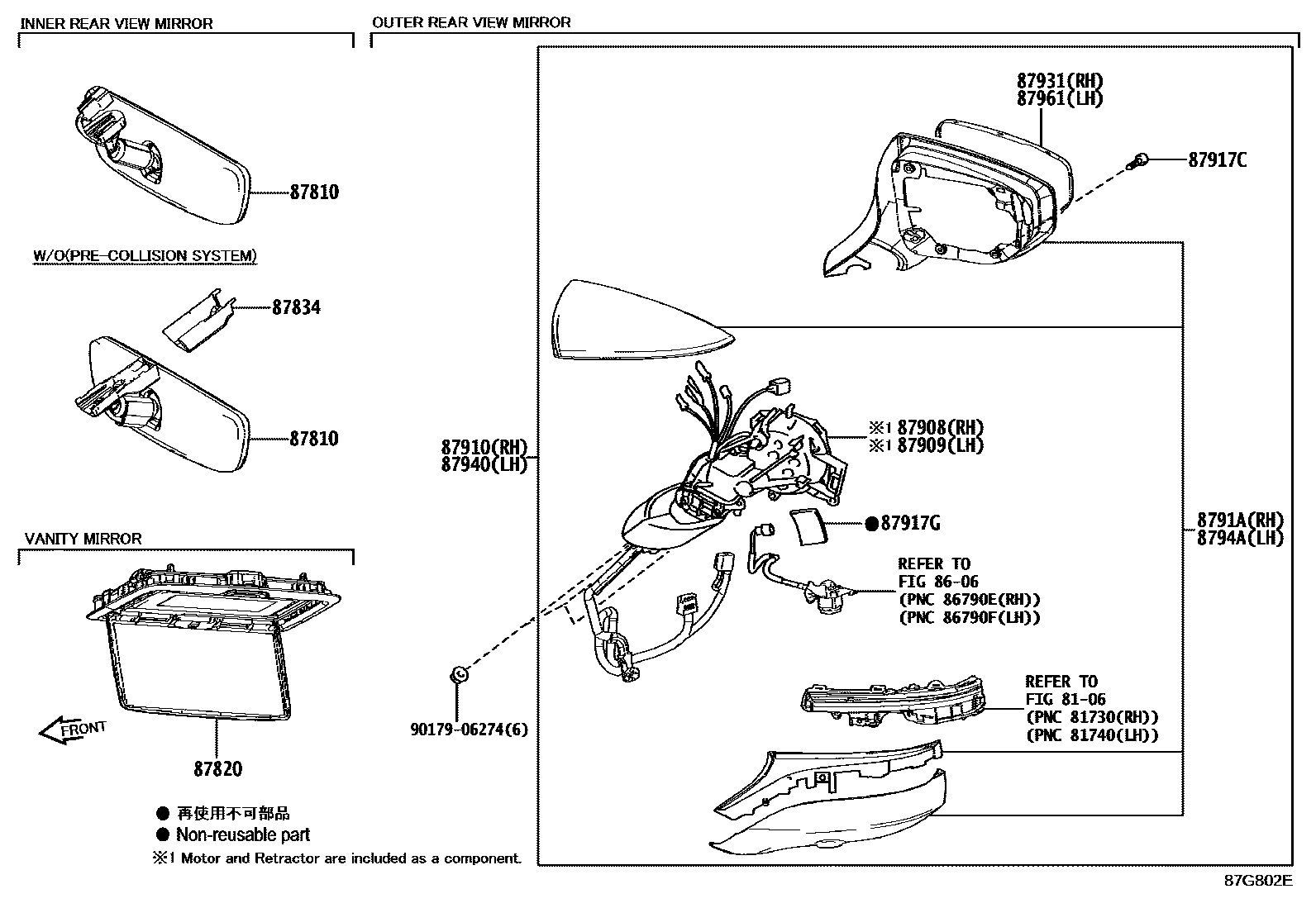

Toyota LEXUS LS500/500H/350431 — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
87820MIRROR ASSY, VANITY
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87917CSCREW, OUTER MIRROR
87917GTAPE, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
87940MIRROR ASSY, OUTER REAR VIEW, LH
8794ACOVER, OUTER MIRROR, LH NO.2
9017906274
16 parts on this diagram · 3 diagrams in section
MIRROR for Toyota LEXUS LS500/500H/350431
This section contains 20 genuine Toyota parts for the MIRROR system of the Toyota LEXUS LS500/500H/350431. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, VANITY, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
