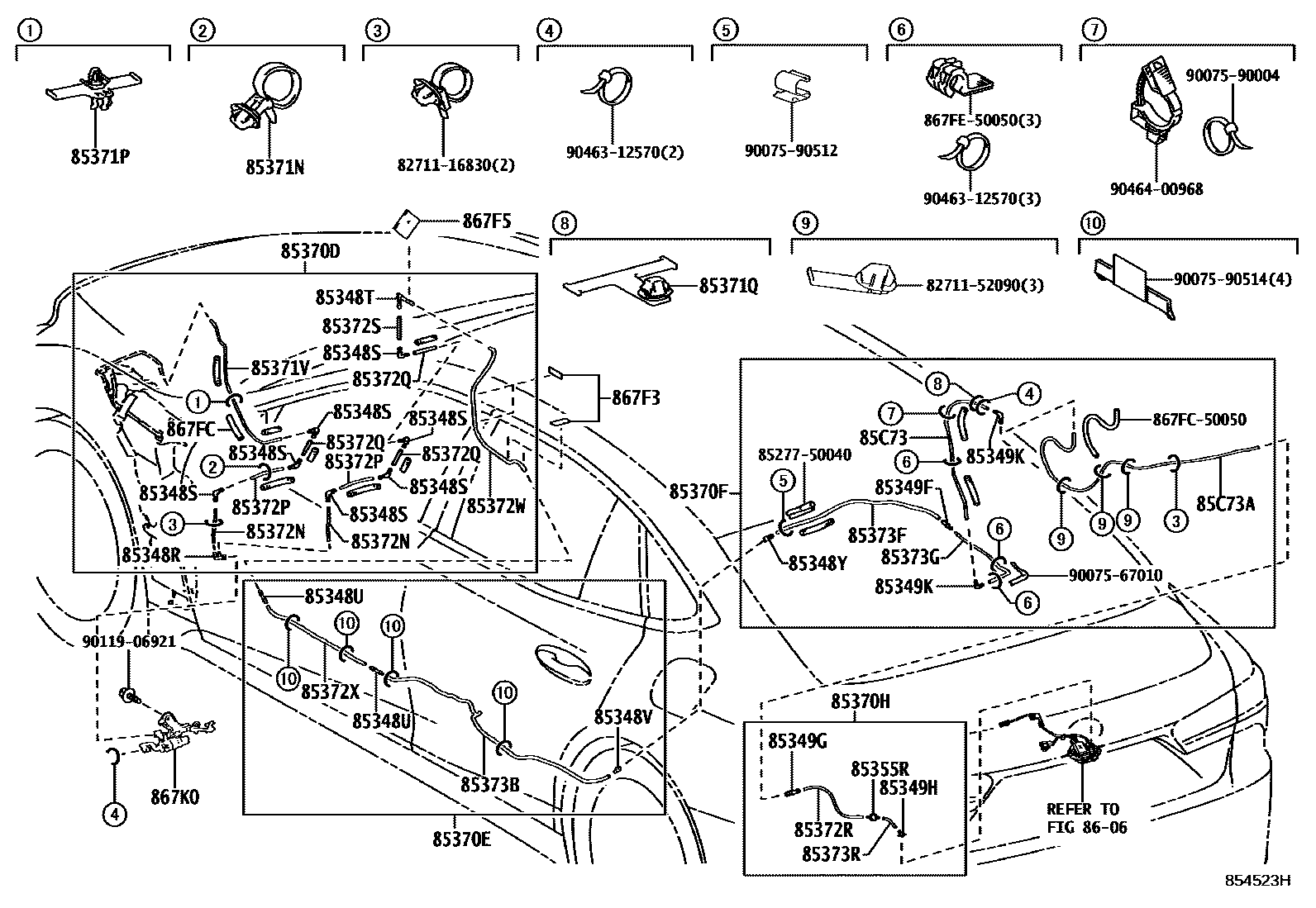

REAR WASHER

0001 1 0002 1

85348RJOINT, REAR WASHER HOSE, NO.1

main867FD-50010iGVF50,VXFA50..GCC,GEN202310

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200×7iGVF50,VXFA50..GCC,GEN202310

85348TJOINT, REAR WASHER HOSE, NO.2

main867FD-62050iGVF50,VXFA50..GCC,GEN202310

85348UJOINT, REAR WASHER HOSE, NO.3

main867FD-62020×2iGVF50,VXFA50..GCC,GEN202310

85348VJOINT, REAR WASHER HOSE, NO.4

main90075-17012iGVF50,VXFA50..GCC,GEN202310

85348YJOINT, REAR WASHER HOSE, NO.5

main90075-17011iGVF50,VXFA50..GCC,GEN202310

85349FJOINT, REAR WASHER HOSE, NO.1

main867FD-50050iGVF50,VXFA50..GCC,GEN202310

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-89122iGVF50,VXFA50..GCC,GEN202310

85349HJOINT, REAR WASHER HOSE, NO.3

main867FD-50060iGVF50,VXFA50..GCC,GEN202310

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200×2iGVF50..GCC,GEN; VXFA50202310

85355RVALVE, REAR WASHER HOSE

main867FB-50060iGVF50,VXFA50..GCC,GEN202310

85370DHOSE ASSY, REAR WASHER, NO.1

main867F2-50010iGVF50,VXFA50..GCC,GEN202310

85370EHOSE ASSY, REAR WASHER, NO.2

main881E6-50040iGVF50,VXFA50..GCC,GEN202310

85370FHOSE ASSY, REAR WASHER, NO.3

main867F2-50040iVXFA50202310

main867F2-50050iGVF50..GCC,GEN202310

85370HHOSE ASSY, REAR WASHER, NO.4

main867F2-50060iGVF50,VXFA50..GCC,GEN202310

85371NCLAMP, REAR WASHER HOSE

main82711-41090iGVF50,VXFA50..GCC,GEN202310

85371PCLAMP, REAR WASHER HOSE, NO.2

main82711-22A00iGVF50,VXFA50..GCC,GEN202310

85371QCLAMP, REAR WASHER HOSE, NO.3

main82711-47080iGVF50,VXFA50..GCC,GEN202310

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90075-15132iGVF50,VXFA50..GCC,GEN202310

L=460

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90075-15118×2iGVF50,VXFA50..GCC,GEN202310

L=45

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90075-15119×2iGVF50,VXFA50..GCC,GEN202310

L=155

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90075-15117×3iGVF50,VXFA50..GCC,GEN202310

L=80

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90075-15122iGVF50,VXFA50..GCC,GEN202310

L=250

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90075-15114iGVF50,VXFA50..GCC,GEN202310

L=120

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90075-15136iGVF50,VXFA50..GCC,GEN202310

L=585

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90075-15102iGVF50,VXFA50..GCC,GEN202310

L=550

85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7

main90075-15141iGVF50,VXFA50..GCC,GEN202310

85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8

main85275-60090iGVF50,VXFA50..GCC,GEN202310

L=600

85373GHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9

main90075-15124iVXFA50202310

L=310

main90075-15131iGVF50..GCC,GEN202310

L=325

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90075-15115iGVF50,VXFA50..GCC,GEN202310

L=55

85C73HOSE, REAR WASHER, NO.12(FROM JOINT TO JOINT)

main90075-15128iGVF50,VXFA50..GCC,GEN202310

85C73AHOSE, REAR WASHER, NO.13(FROM JOINT TO JOINT)

main90075-15130iGVF50,VXFA50..GCC,GEN202310

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

867F3TAPE, WASHER HOSE

main867F3-50010iGVF50,VXFA50..GCC,GEN202310

867F5SILENCER, WASHER HOSE

main867F5-50010iGVF50,VXFA50..GCC,GEN202310

867FCCUSHION, CLEANER HOSE

main867FC-62080iGVF50,VXFA50..GCC,GEN202310

867K0HOSE & PUMP ASSY, SENSOR WASHER

main867K0-50010iGVF50,VXFA50..GCC,GEN202310

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8527750040HOSE, HEADLAMP CLEANER, C

main85277-50040

867FC50050CUSHION, CLEANER HOSE

main867FC-50050

867FE50050

main867FE-50050

9007567010

main90075-67010

9007590004

main90075-90004

9007590512

main90075-90512

9007590514

main90075-90514

9011906921

main90119-06921

9046312570

main90463-12570

9046400968

main90464-00968

49 parts on this diagram · 2 diagrams in section
