Toyota LEXUS LS500/500H/350431 — SWITCH & RELAY & COMPUTER

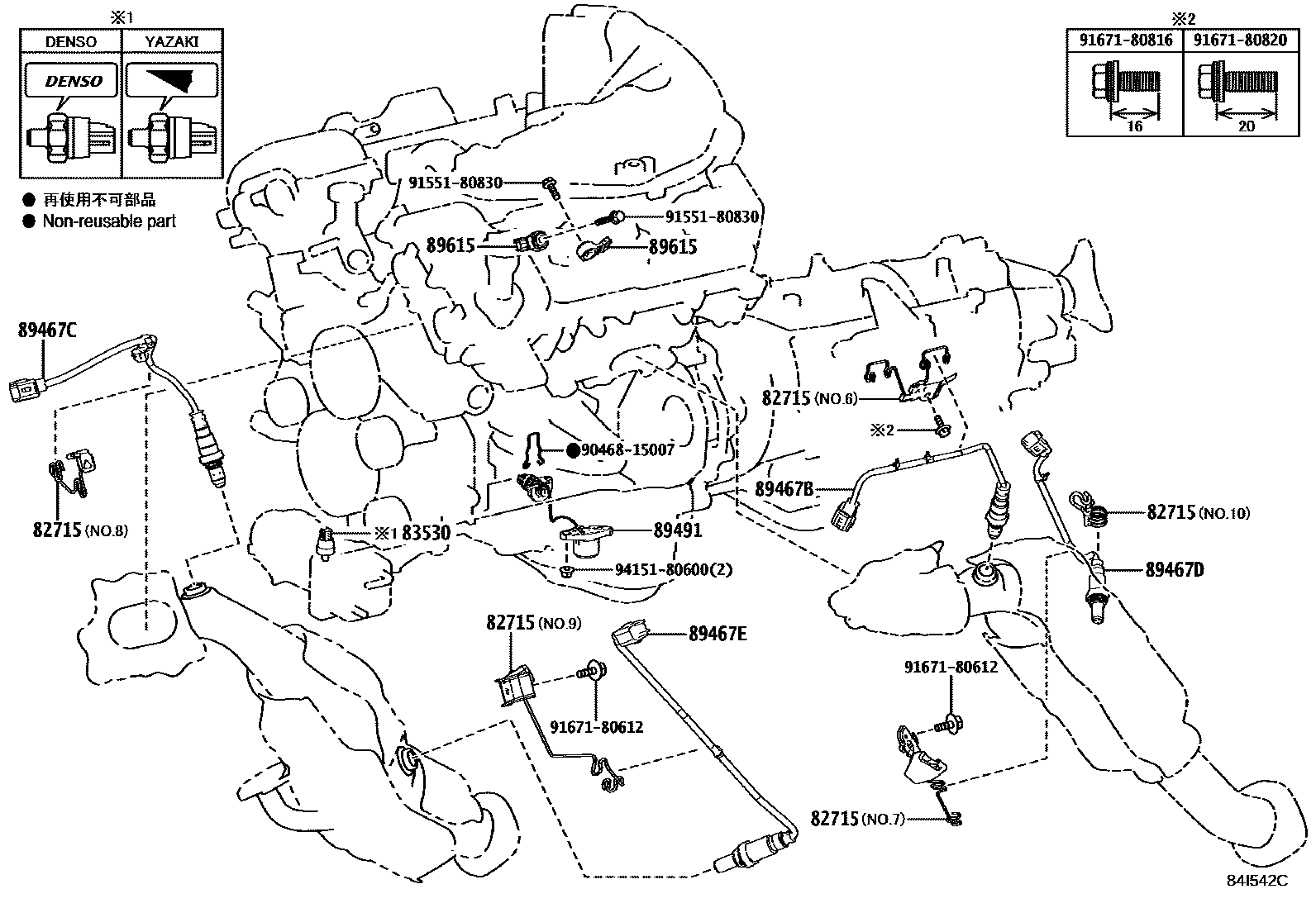

Parts diagram

82715BRACKET,WIRING HARNESS CLAMP

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89467BSENSOR, AIR FUEL RATIO

89467CSENSOR, AIR FUEL RATIO, NO.2

89467DSENSOR, AIR FUEL RATIO, NO.3

89467ESENSOR, AIR FUEL RATIO, NO.4

89491SENSOR, ENGINE OIL LEVEL

89615SENSOR, KNOCK CONTROL

9046815007

9155180830

9167180612

9167180816

9167180820

9415180600

14 parts on this diagram · 32 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS LS500/500H/350431

This section contains 246 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS LS500/500H/350431. Key components include: RELAY ASSY, STARTER, NO.1, RELAY ASSY, STARTER, NO.2, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2, RELAY, IGP, NO.2.
