Toyota LEXUS LS500/500H/350431 — BATTERY & BATTERY CABLE

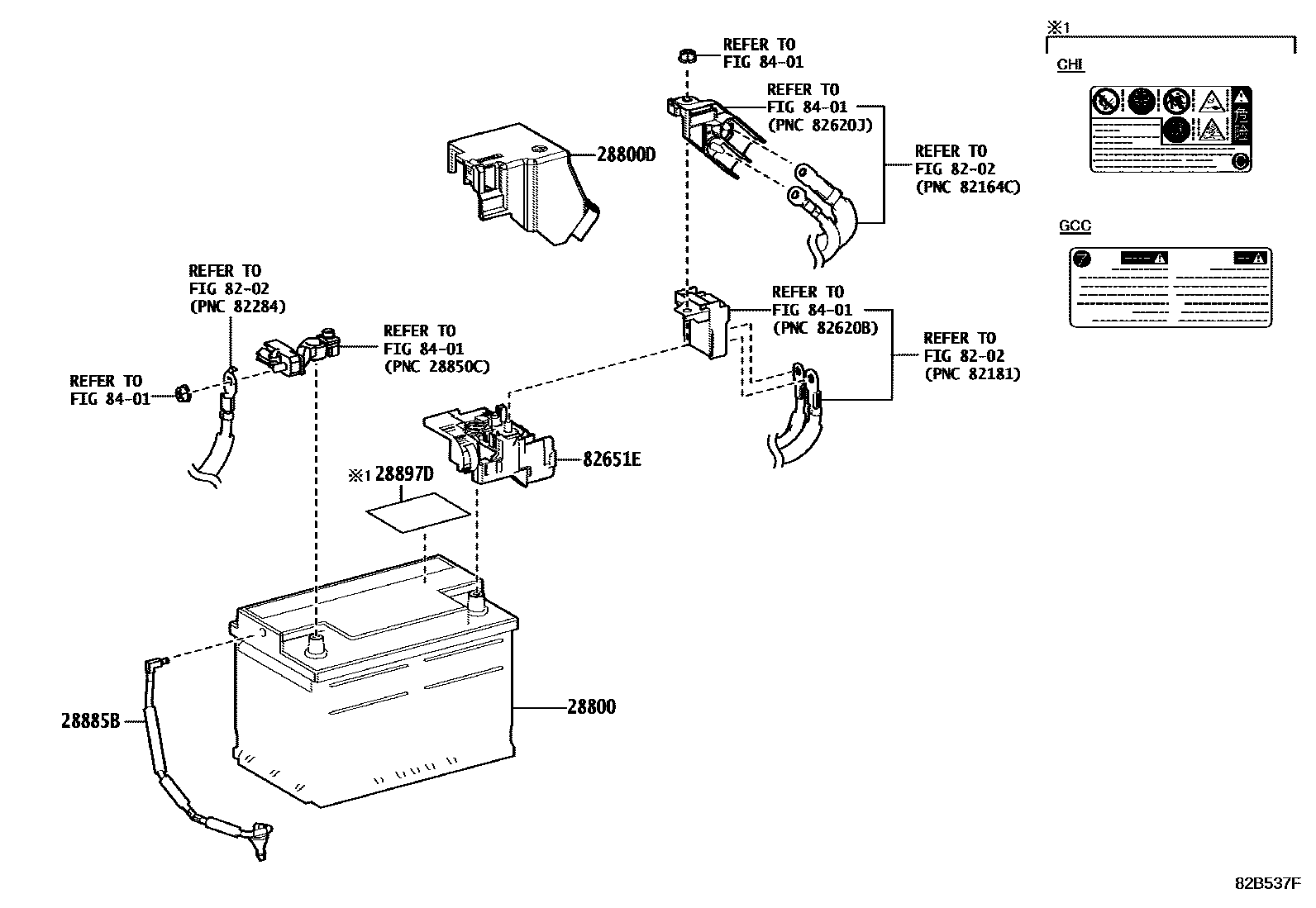

Parts diagram
28800BATTERY
28800-31450
28800-31451
28800-31452
28800-31453
28800-31460
28800-31461
28800-31462
28800-31470
28800-31471
28800-31472
28800-31473
28800-31480
28800-31481
28800-31482
28800-31483
28800-31590
28800-31591
28800-31592
82821-50730
82821-50830
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
28885BHOSE, BATTERY
28897DLABEL, BATTERY CAUTION
8202WIRING & CLAMP
→ Go to FIG 82-02
82651EBLOCK, TERMINAL
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01

7 parts on this diagram · 5 diagrams in section

BATTERY & BATTERY CABLE for Toyota LEXUS LS500/500H/350431

This section contains 58 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota LEXUS LS500/500H/350431. Key components include: BATTERY, COVER, CONNECTOR(FOR BATTERY TERMINAL), SUB-BATTERY ASSY, W/CONTROL, LABEL, SUB-BATTERY CAUTION, BRACKET, SUB-BATTERY.
