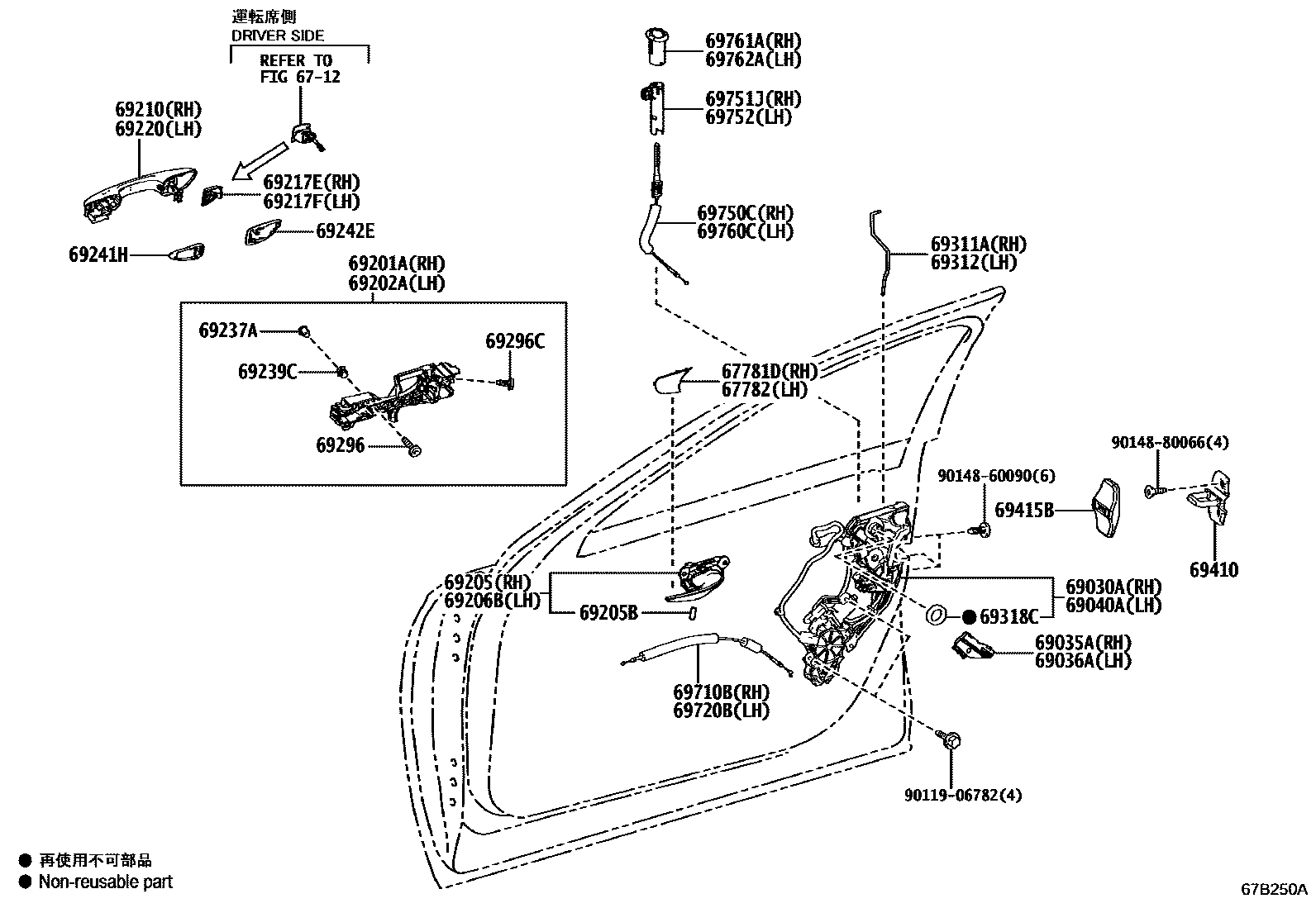

FRONT DOOR LOCK & HANDLE
6712LOCK CYLINDER SET
67781DCOVER, FRONT DOOR TRIM, UPPER RH
67782COVER, FRONT DOOR TRIM, UPPER LH
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
ARGENTINA SPEC; CHILE SPEC; COSTARICA,GUATEMALA SPEC; HONDURAS SPEC; MIDDLE & SOUTH AMERICA SPEC; NICARAGUA,ARUBA,CURACAO SPEC
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
I SILVER,1L3
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
GIN-EI LUSTER,1L3
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
I SILVER,1L3
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
GIN-EI LUSTER,1L3
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69296SCREW, DOOR INSIDE HANDLE
69296CSCREW, DOOR INSIDE HANDLE
ARGENTINA SPEC,LH; CHILE SPEC,LH; COSTARICA,GUATEMALA SPEC,LH; HONDURAS SPEC,LH; MIDDLE & SOUTH AMERICA SPEC,LH; NICARAGUA,ARUBA,CURACAO SPEC,LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69751JHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
NOBLE BROWN,TRIM0#,1#,4#,51,57,59,9#; NOBLE BROWN,TRIM04,05,1#,4#,51,57,59,9#
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
NOBLE BROWN,TRIM03,04,05,4#,51,59,9#; NOBLE BROWN,TRIM04,05,4#,59,9#
9011906782
main90119-06782
9014860090
main90148-60090
9014880066
main90148-80066
38 parts on this diagram · 1 diagram in section
