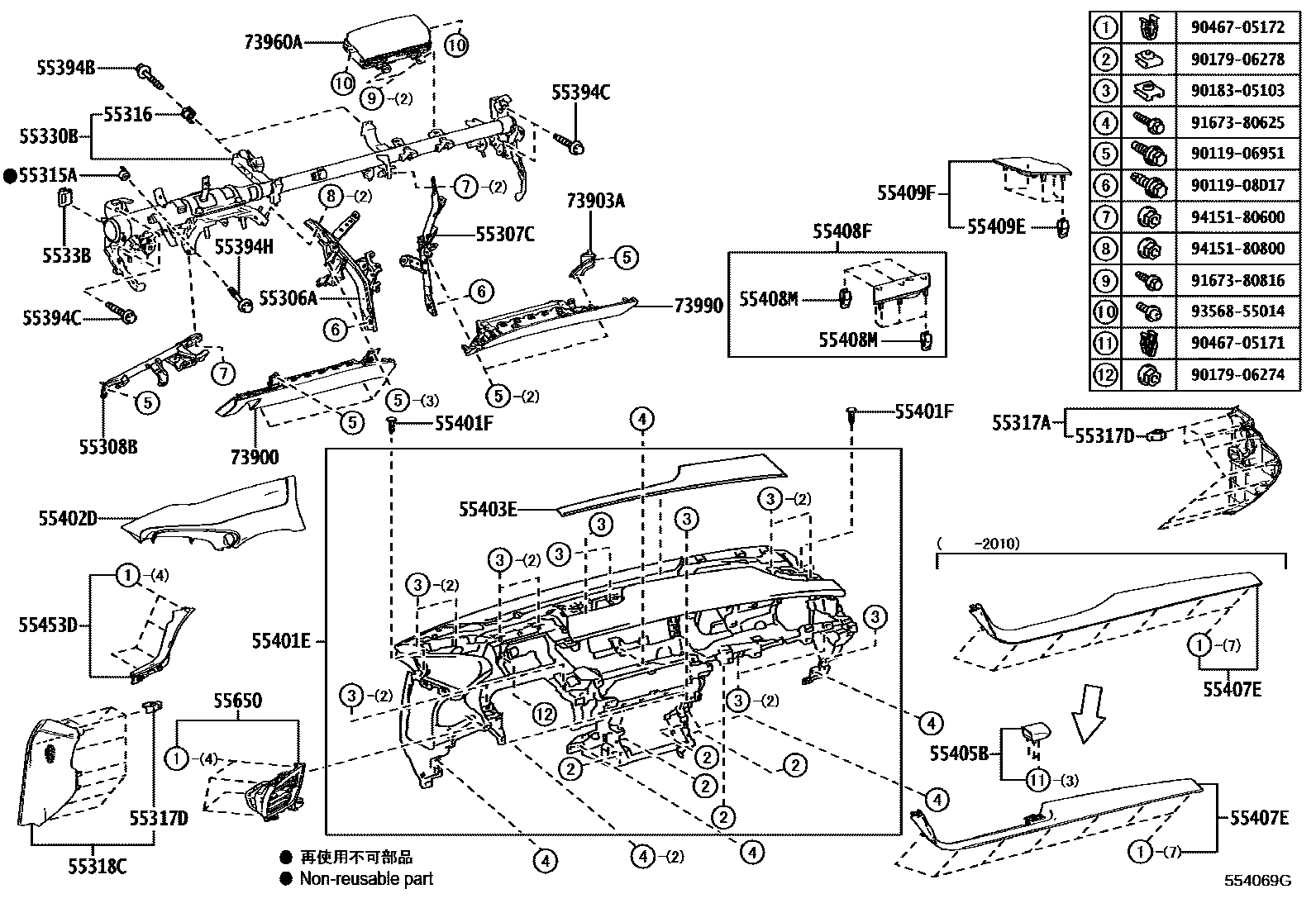

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55315ASPACER, INSTRUMENT PANEL, NO.1
55316SPACER, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM06,2#,36,52,53
CRIMSON,TRIM3#
NOBLE BROWN,TRIM04,05,4#,59,9#
BLACK,TRIM0#,1#,2#,36,38,4#,5#; BLACK,TRIM0#,1#,2#,4#,5#
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
NOBLE BROWN,TRIM0#,1#,4#,51,57,59,9#; NOBLE BROWN,TRIM04,05,1#,4#,51,57,59,9#
55317DCLIP, INSTRUMENT SIDE PANEL
MELLOW WHITE
55318CPANEL, INSTRUMENT SIDE, LH
main55317-50090-C0iGSF50,GVF50,VXFA50..GCC; GVF50..LHD..(CHI,GEN);GSF50,VXFA50..LHD..GEN201710-202010
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
NOBLE BROWN,TRIM0#,1#,4#,51,57,59,9#; NOBLE BROWN,TRIM04,05,1#,4#,51,57,59,9#
BLACK,TRIM06,2#,36,52,53
CRIMSON,TRIM3#
NOBLE BROWN,TRIM04,05,4#,59,9#
SOUTH AFRICA SPEC,BLACK,TRIM06,2#,36,52,53
SOUTH AFRICA SPEC,CRIMSON,TRIM30,32,33
SOUTH AFRICA SPEC,NOBLE BROWN,TRIM04,05,4#,59,9#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
5533BSPACER, INSTRUMENT PANEL EXTENSION
NATURAL(WHITE)
PINK
YELLOW
GREEN
BLACK
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55394HBOLT, INSTRUMENT PANEL, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK/LT.GRAY,TRIM0#,2#,4#,5#
CRIMSON/SHELL,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#; BLACK/LT.GRAY,TRIM0#,2#,4#,5#; HEAD UP DISPLAY-WITH,BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
BLACK/FLARE RED,TRIM36,38
CRIMSON/SHELL,TRIM30,37
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
CRIMSON/SHELL,TRIM3#
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
BLACK/FLARE RED,TRIM36
CRIMSON/SHELL,TRIM30,37
main55400-50900-C0supersedes 55400-50901-C0iGSF50,GVF50,VXFA50..LHD..GEN; GVF50..CHI,GCC;GSF50,VXFA50..GCC201710-202010
HEAD UP DISPLAY-WITH,BLACK,TRIM06,2#,36,52,53; HEAD UP DISPLAY-WITH,BLACK,TRIM06,2#,36,53
HEAD UP DISPLAY-WITH,CRIMSON,TRIM3#
main55400-50900-E0supersedes 55400-50901-E0iGSF50,GVF50,VXFA50..GCC; GSF50,GVF50,VXFA50..LHD..GEN201710-202010
HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM03,04,05,4#,51,59,9#; HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM04,05,4#,59,9#
HEAD UP DISPLAY-WITH,BLACK,TRIM06,2#,36,52,53
HEAD UP DISPLAY-WITH,CRIMSON,TRIM30,33
HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM04,05,4#,59,9#
HEAD UP DISPLAY-WITH(LARGE),BLACK/FLARE RED,TRIM36,38
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#; HEAD UP DISPLAY-WITHOUT,BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
HEAD UP DISPLAY-WITHOUT,BLACK/FLARE RED,TRIM36,38
HEAD UP DISPLAY-WITHOUT,CRIMSON/SHELL,TRIM30,37
55401FCLIP(FOR SAFETY PAD)
55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
BLACK,TRIM0#,1#,2#,36,38,4#,5#; BLACK,TRIM0#,1#,2#,4#,5#; HEAD UP DISPLAY-WITH,BLACK,TRIM0#,1#,2#,36,38,4#,5#
CRIMSON,TRIM3#; CRIMSON,TRIM30,37; HEAD UP DISPLAY-WITH,CRIMSON,TRIM30,37
BLACK,TRIM0#,1#,2#,36,38,4#,5#; BLACK,TRIM0#,1#,2#,4#,5#
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
BLACK,TRIM0#,1#,2#,36,38,4#,5#
CRIMSON,TRIM3#
main55401-50370-E2supersedes 55401-50380-E2iGSF50,GVF50,VXFA50..GCC; GSF50,GVF50,VXFA50..LHD..GEN201710-202010
HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM03,04,05,4#,51,59,9#; HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM04,05,4#,59,9#
HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM04,05,4#,59,9#
55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
BLACK,TRIM0#,1#,2#,4#,5#
CRIMSON,TRIM3#
NOBLE BROWN,TRIM0#,1#,4#,51,57,59,9#; NOBLE BROWN,TRIM04,05,1#,4#,51,57,59,9#
BLACK,TRIM06,2#,36,52,53
CRIMSON,TRIM3#
NOBLE BROWN,TRIM04,05,4#,59,9#
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
BLACK,TRIM0#,1#,2#,36,38,4#,5#; BLACK,TRIM0#,1#,2#,4#,5#
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
BLACK,TRIM0#,1#,2#,36,38,4#,5#
CRIMSON,TRIM30,37
55407EINSERT SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
CRIMSON/SHELL,TRIM3#; CRIMSON/SHELL,TRIM30,33
NOBLE BROWN/SHELL,TRIM03,04,05,4#,51,59,9#; NOBLE BROWN/SHELL,TRIM04,05,4#,59,9#
BLACK,TRIM06,2#,36,52,53
CRIMSON/SHELL,TRIM30,32,33
NOBLE BROWN/SHELL,TRIM04,05,4#,59,9#
BLACK/FLARE RED,TRIM36,38
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
BLACK/FLARE RED,TRIM36,38
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
CRIMSON,TRIM3#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
main55408-50180-C0iGSF50,GVF50,VXFA50..GCC; GVF50..LHD..(CHI,GEN);GSF50,VXFA50..LHD..GEN201710-202010
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
CRIMSON,TRIM3#
NOBLE BROWN,TRIM03,04,05,4#,51,59,9#; NOBLE BROWN,TRIM04,05,4#,59,9#
BLACK,TRIM0#,1#,2#,36,38,4#,5#
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,4#,59,9#
55408MCLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
MELLOW WHITE
55409ECLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
MELLOW WHITE
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
main55409-50130-C0iGSF50,GVF50,VXFA50..GCC; GVF50..LHD..(CHI,GEN);GSF50,VXFA50..LHD..GEN201710-202010
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
NOBLE BROWN,TRIM0#,1#,4#,51,57,59,9#; NOBLE BROWN,TRIM04,1#,4#,51,57,59,9#
BLACK,TRIM06,2#,36,52,53
CRIMSON,TRIM3#
NOBLE BROWN,TRIM04,05,4#,59,9#
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
BLACK/FLARE RED,TRIM36,38
CRIMSON/SHELL,TRIM3#; CRIMSON/SHELL,TRIM30,37
NOBLE BROWN/SHELL,TRIM0#,1#,4#,51,57,59,9#; NOBLE BROWN/SHELL,TRIM04,1#,4#,51,57,59,9#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK/FLARE RED,TRIM36,38
CRIMSON/SHELL,TRIM3#
NOBLE BROWN/SHELL,TRIM04,05,4#,59,9#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
main73900-50090-C0iGSF50,GVF50,VXFA50..GCC; GVF50..LHD..(CHI,GEN);GSF50,VXFA50..LHD..GEN201710-202010
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
NOBLE BROWN,TRIM0#,1#,4#,51,57,59,9#; NOBLE BROWN,TRIM04,05,1#,4#,51,57,59,9#
BLACK,TRIM06,2#,36,52,53
CRIMSON,TRIM3#
NOBLE BROWN,TRIM04,05,4#,59,9#
73903ABRACKET SUB-ASSY, AIRBAG INSTRUMENT PANEL, LOWER
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2
main73990-50060-C0iGSF50,GVF50,VXFA50..GCC; GVF50..LHD..(CHI,GEN);GSF50,VXFA50..LHD..GEN201710-202010
BLACK,TRIM06,2#,36,52,53; BLACK,TRIM06,2#,36,53
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
NOBLE BROWN,TRIM0#,1#,4#,51,57,59,9#; NOBLE BROWN,TRIM04,05,1#,4#,51,57,59,9#
BLACK,TRIM0#,1#,2#,4#,5#
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,4#,59,9#
9011906951
main90119-06951
9011908D17
main90119-08D17
9017906274
main90179-06274
9017906278
main90179-06278
9018305103
main90183-05103
9046705171
main90467-05171
9046705172
main90467-05172
9167380625
main91673-80625
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
