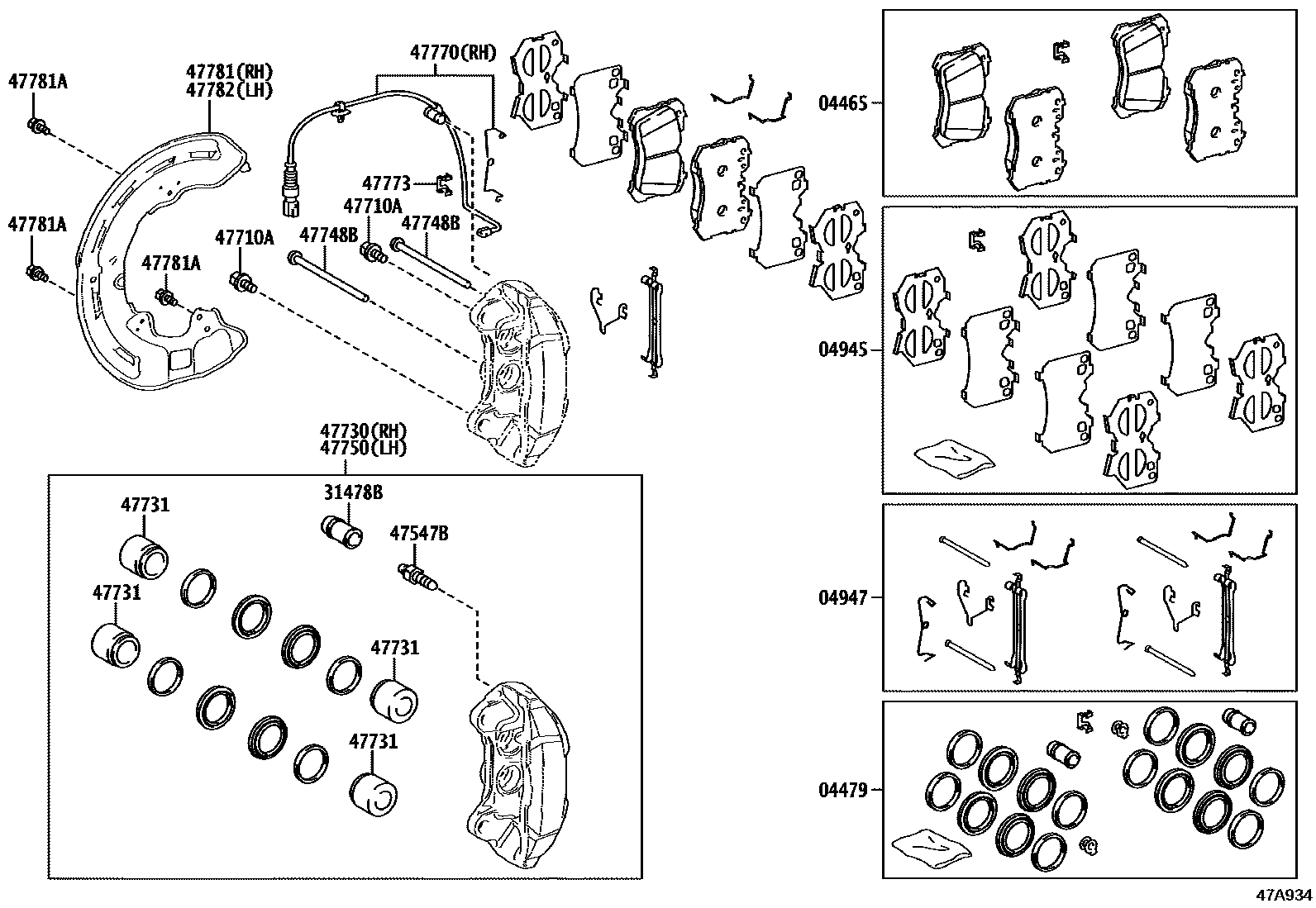

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-11010201712-201906

main04465-11011201906-202310

main04465-11030202310-202501

main04465-50280201710-202310

main04465-50290201710-202010

main04465-50300202310-202509

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-11010201712-202010

main04478-50050201710-202509

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-11010201712-201809

main04945-11011201809-202010

main04945-50080201710-202509

04947FITTING KIT, DISC BRAKE, FRONT

main04947-11010201712-202010

main04947-50140201710-202509

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010201710-202509

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010201710-202509

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180201710-202509

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50180201710-202509

main47730-50260201712-202010

47731PISTON, FRONT DISC BRAKE

main47731-11050201712-202010

main47731-50180201710-202509

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-11050

main47748-11051

main47735-50200

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50200201710-202310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50280201710-202509

main47750-50300201712-202010

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-11010201712-202010

main47770-50120201710-202509

47773RETAINER, PAD WEAR INDICATOR

main47773-50030201710-202310

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-11010201712-202010

main47781-50080201710-202509

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508201710-202509

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-11010201712-202010

main47782-50080201710-202509

17 parts on this diagram · 5 diagrams in section
