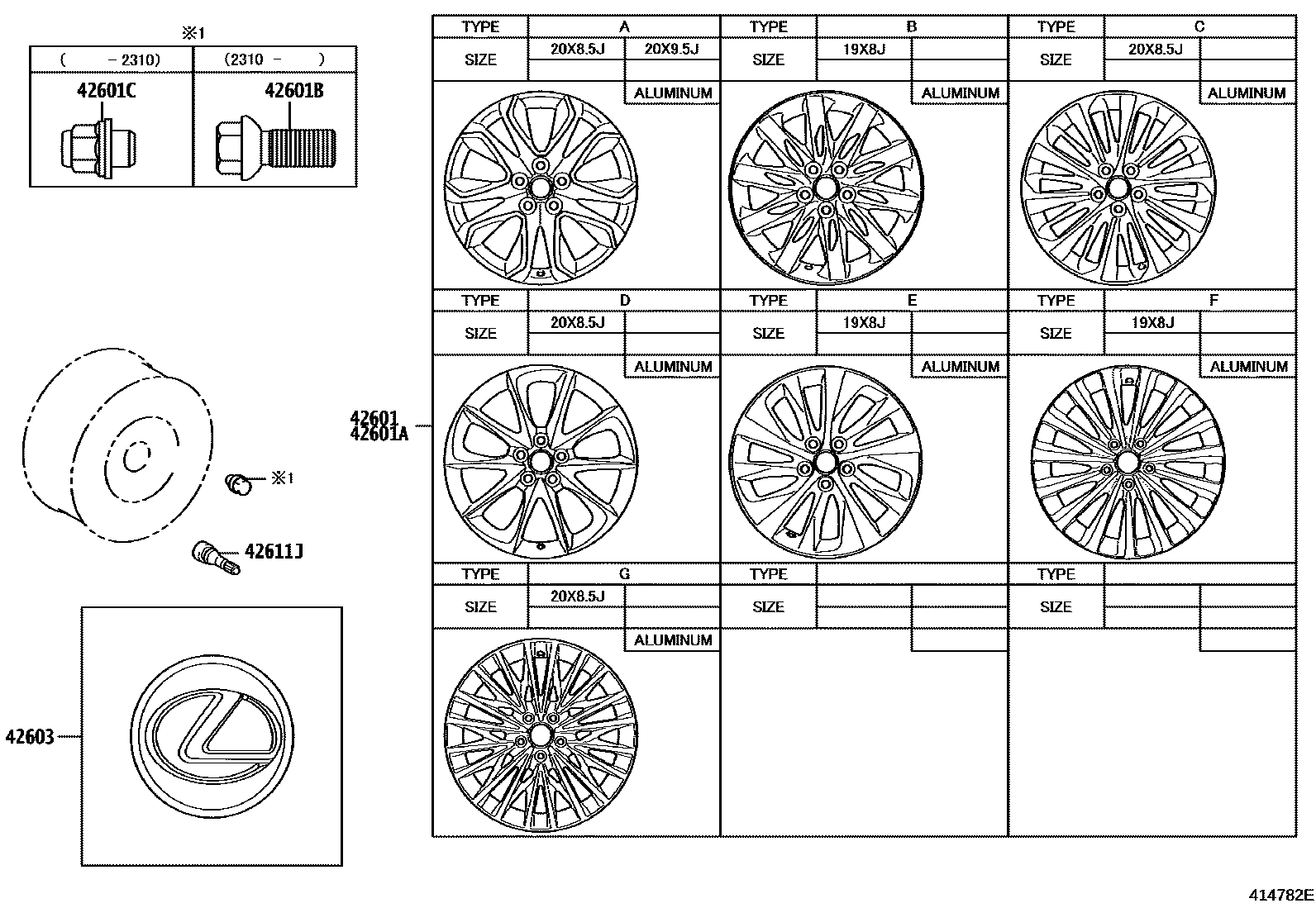

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-50780×4supersedes 42611-50660i202010-202310

20X8.5J,*SPR,EGYPT SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE C:REFER ILLUST.; 20X8.5J,*SPR,TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE,TYPE C:REFERILLUST.; 20X8.5J,*SPR,TYPE C:REFER ILLUST.

main42611-50890×4i202010-202310

19X8J,TYPE E:REFER ILLUST.

main42611-50A10×4i202310

19X8J,TYPE E:REFER ILLUST.

main42611-11120×4i201710-202010

20X8.5J,#,AUSTRALIA OR NEW ZEALAND SPEC&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE,TYPE D:REFER ILLUST.; 20X8.5J,#,BRAZIL SPEC&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE,TYPE D:REFER ILLUST.; 20X8.5J,#,CHILE SPEC&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE,TYPE D:REFER ILLUST.; 20X8.5J,#,TAIWAN SPEC&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE,TYPE D:REFER ILLUST.; 20X8.5J,#,TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE,TYPE D:REFER ILLUST.

main42611-50790×4supersedes 42611-50670i201711-201909

20X8.5J,#,TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE,TYPE C:REFER ILLUST.

main42611-50820×4i201909-202010

20X8.5J,#,AUSTRALIA OR NEW ZEALAND SPEC&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.,TYPE C:REFER ILLUST.; 20X8.5J,#,BRAZIL SPEC&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.,TYPE C:REFER ILLUST.; 20X8.5J,#,CHILE SPEC&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.,TYPE C:REFER ILLUST.; 20X8.5J,#,TAIWAN SPEC&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.,TYPE C:REFER ILLUST.; 20X8.5J,#,TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.,TYPE C:REFER ILLUST.

main42611-50830×4i202011-202111

20X8.5J,BRAZIL SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE C:REFER ILLUST.

main42611-50850×2i202010-202310

20X8.5J,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,FR,TYPE A:REF ILL.

main42611-50870×2i202011-202310

20X9.5J,AUSTRALIA OR NEW ZEALAND SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,RR,TYPE A:REF ILL.; 20X9.5J,CHILE SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,RR,TYPE A:REF ILL.; 20X9.5J,TAIWAN SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,RR,TYPE A:REF ILL.

main42611-50A30×4i202310

19X8J,BURNEI SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE F:REFER ILLUST.; 19X8J,CHILE SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE F:REFER ILLUST.; 19X8J,HONG KONG OR MACAU SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE F:REFER ILLUST.; 19X8J,INDONESIA SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPEF:REFER ILLUST.; 19X8J,MALAYSIA SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE F:REFER ILLUST.; 19X8J,SINGAPORE SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPEF:REFER ILLUST.; 19X8J,THAILAND SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE F:REFER ILLUST.; 19X8J,TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE F:REFER ILLUST.; 19X8J,TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE,TYPE F:REFER ILLUST.

main42611-50A50×4i202310

20X8.5J,BURNEI SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,CHILE SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,EGYPT SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,HONG KONG OR MACAU SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMERTIRE,TYPE G:REFER ILLUST.; 20X8.5J,INDONESIA SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,MALAYSIA SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPEG:REFER ILLUST.; 20X8.5J,SINGAPORE SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,THAILAND SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPEG:REFER ILLUST.; 20X8.5J,TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.

main4261A-50080×2i202310

20X8.5J,BURNEI SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.; 20X8.5J,CHILE SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.; 20X8.5J,HONG KONG OR MACAU SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.; 20X8.5J,INDONESIA SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.; 20X8.5J,MALAYSIA SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.; 20X8.5J,SINGAPORE SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.; 20X8.5J,THAILAND SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.; 20X8.5J,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.

main4261A-50230×4i202011-202310

19X8J,*HCMP,AUSTRALIA OR NEW ZEALAND SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE B:REFER ILLUST.; 19X8J,*HCMP,CHILE SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE B:REFER ILLUST.; 19X8J,*HCMP,TAIWAN SPEC&TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE B:REFER ILLUST.; 19X8J,*HCMP,TIRE & DISK WHEEL-245/50R19 NOISE REDUCTION,SUMMER TIRE,TYPE B:REFER ILLUST.

main4261A-50240×4supersedes 42611-50670i201711-201909

19X8J,#,TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE,TYPE B:REFER ILLUST.

main4261A-50270×2i201710-202010

20X8.5J,*DPMP,AUSTRALIA OR NEW ZEALAND SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,FR,TYPE A:REF ILL.; 20X8.5J,*DPMP,CHILE SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,FR,TYPE A:REF ILL.; 20X8.5J,*DPMP,TAIWAN SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,FR,TYPE A:REF ILL.; 20X8.5J,*DPMP,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,FR,TYPE A:REF ILL.

main4261A-50280×2i201711-201909

20X8.5J,#,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,FR,TYPE A:REF ILL.

main4261A-50290×2i201710-201909

20X9.5J,*DPMP,CHILE SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,RR,TYPE A:REF ILL.; 20X9.5J,*DPMP,TAIWAN SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,RR,TYPE A:REF ILL.; 20X9.5J,*DPMP,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,RR,TYPE A:REF ILL.

main4261A-50300×2i201711-201909

20X9.5J,#,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,RR,TYPE A:REF ILL.

main4261A-50350×2i202310-202411

20X9.5J,INDONESIA SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.

main4261A-50370×4i202310

20X8.5J,BURNEI SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,CHILE SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,HONG KONG OR MACAU SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMERTIRE,TYPE G:REFER ILLUST.; 20X8.5J,INDONESIA SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,MALAYSIA SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPEG:REFER ILLUST.; 20X8.5J,SINGAPORE SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,THAILAND SPEC&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPEG:REFER ILLUST.; 20X8.5J,TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE,TYPE G:REFER ILLUST.; 20X8.5J,TYPE G:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-50780i201710-201909

20X8.5J,*SPR,INDONESIA SPEC,TYPE C:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-02103×20i202310

42601CNUT, HUB (FOR AXLE)

main90942-01121×20i201710-202010

main90942-01122×20i201710-201909

TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50380×4i201710-201912

*ALU

main42603-50381×4i202010-202310

*ALU

main42603-53130×4i202310

*ALU

main42603-53110×4i201710-201909

*ALU,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main42603-53140×4i202310

*ALU,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201710-201909

INDONESIA SPEC

6 parts on this diagram · 3 diagrams in section
