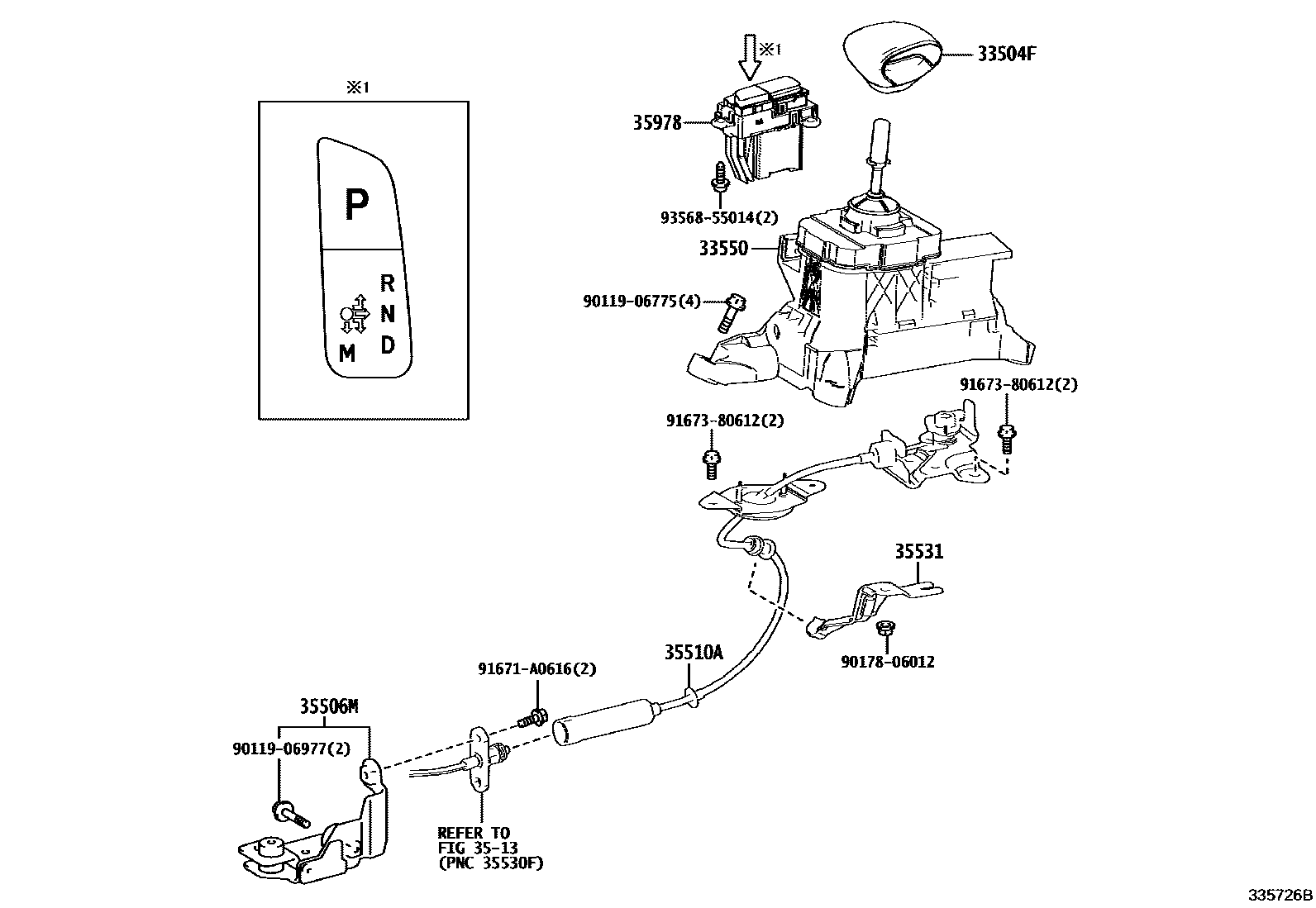

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-50390-C4iGSF50,GVF50,VXFA50..CHI,GEN; GSF50,GVF50,VXFA50..GCC201710-202010

BLACK,TRIM2#,3#,52,53; BLACK,TRIM2#,3#,53

main33504-50390-E4iGSF50,GVF50,VXFA50..GCC; GSF50,GVF50,VXFA50..GEN201710-202010

NOBLE BROWN,TRIM0#,4#,51,59,9#; NOBLE BROWN,TRIM0#,4#,59,9#

main33504-50400-C1iGSF50..GCC,GEN201710-201909

"F SPORT"*(F),BLACK,TRIM0#,2#,3#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-50630iGSF50,GVF50,VXFA50..LHD202010

main33550-50640iGSF50,GVF50,VXFA50..RHD202011

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35506MBRACKET SUB-ASSY, PARKING RELEASE CABLE, NO.2

main35506-50040iGVF50201710-202010

main35506-50050iGSF50,VXFA50201710-202010

35510ALEVER ASSY, PARKING LOCK RELEASE

main35510-11050iGVF50..RHD201710-201808

main35510-11060iGVF50..LHD201710-201808

main35510-11070iGVF50..RHD201809-202010

main35510-11080iGVF50..LHD201809-202010

main35510-50090iGSF50..GEN202011-202509

main35510-50100iGSF50,VXFA50..LHD201809-202010

35531BRACKET, PARKING LOCK RELEASE CABLE CLAMP, NO.1

main35531-11030iGSF50,GVF50,VXFA50201710-202010

35978INDICATOR, SHIFT POSITION

main35978-50180iGSF50,GVF50,VXFA50..LHD201710-202010

main35978-50190iGSF50,GVF50,VXFA50..RHD202011

9011906775

main90119-06775

9011906977

main90119-06977

9017806012

main90178-06012

91671A0616

main91671-A0616

9167380612

main91673-80612

9356855014

main93568-55014

13 parts on this diagram · 4 diagrams in section
