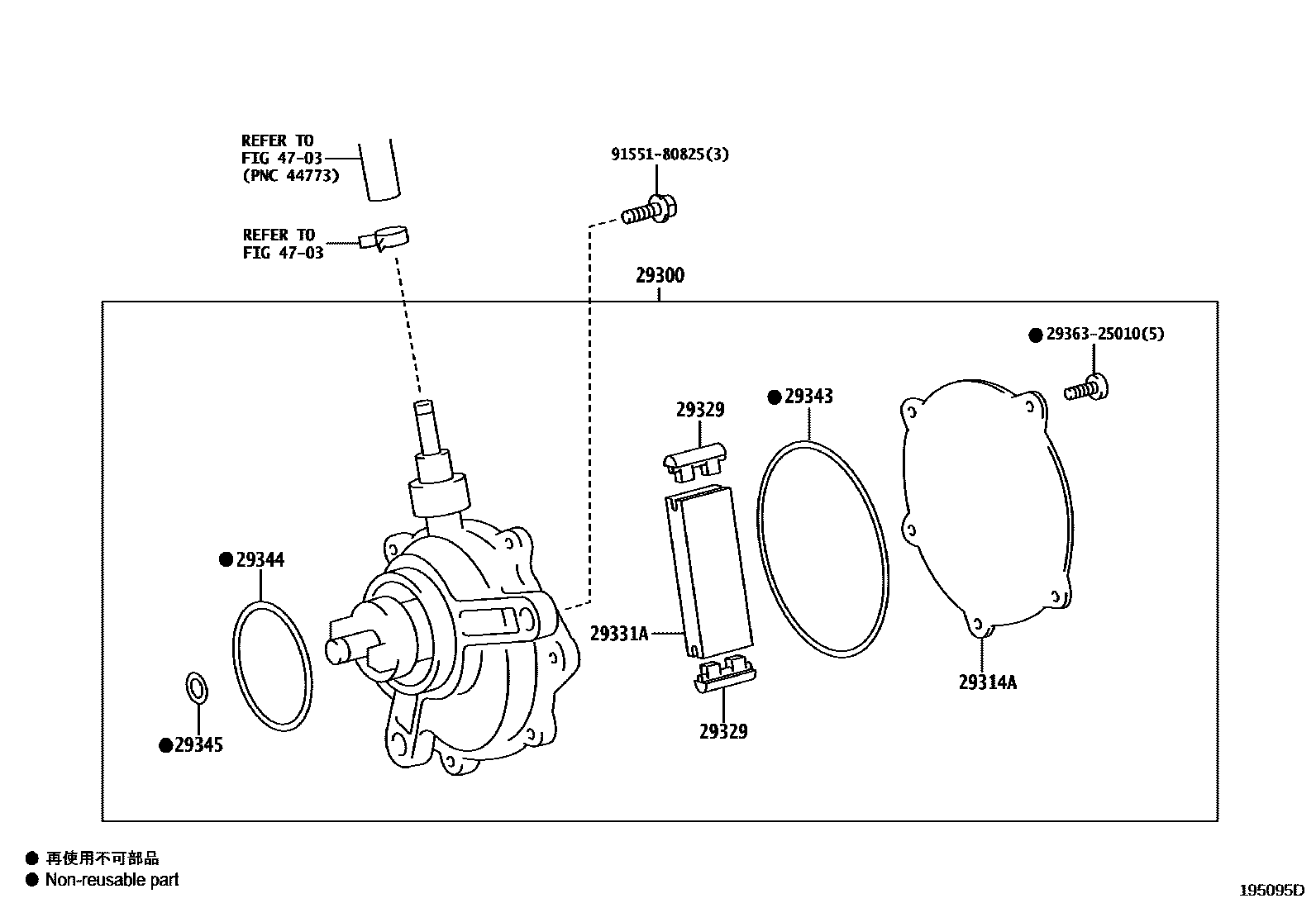

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-25011iV35AFTS..VXFA50201712-202010

main29300-25012iV35AFTS..VXFA50202111

main29300-31021i8GRFKS..GSF50201710-202010

29314ACOVER, END

main29314-25010iV35AFTS..VXFA50202010

main29314-31010i8GRFKS..GSF50..GEN202010-202509

29329CAP, VACUUM PUMP VANE

main29329-25011×2iV35AFTS..VXFA50201712-202010

main29329-37010×2i8GRFKS..GSF50201710-202010

29331AVANE, VACUUM PUMP

main29331-25010iV35AFTS..VXFA50201712-202010

main29331-36010i8GRFKS..GSF50201710-202010

main29331-36011i8GRFKS..GSF50..GCC202010

main29331-37010iV35AFTS..VXFA50202111

29343RING, O VACUUM PUMP, NO.1

main29343-25010iV35AFTS..VXFA50202010

main29343-36010i8GRFKS..GSF50..GCC202010

29344RING, O VACUUM PUMP, NO.2

main29344-22011i8GRFKS..GSF50201710-202010

29345RING, O VACUUM PUMP, NO.3

main29345-22011i8GRFKS..GSF50201710-202010

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180825

main91551-80825

10 parts on this diagram · 2 diagrams in section
