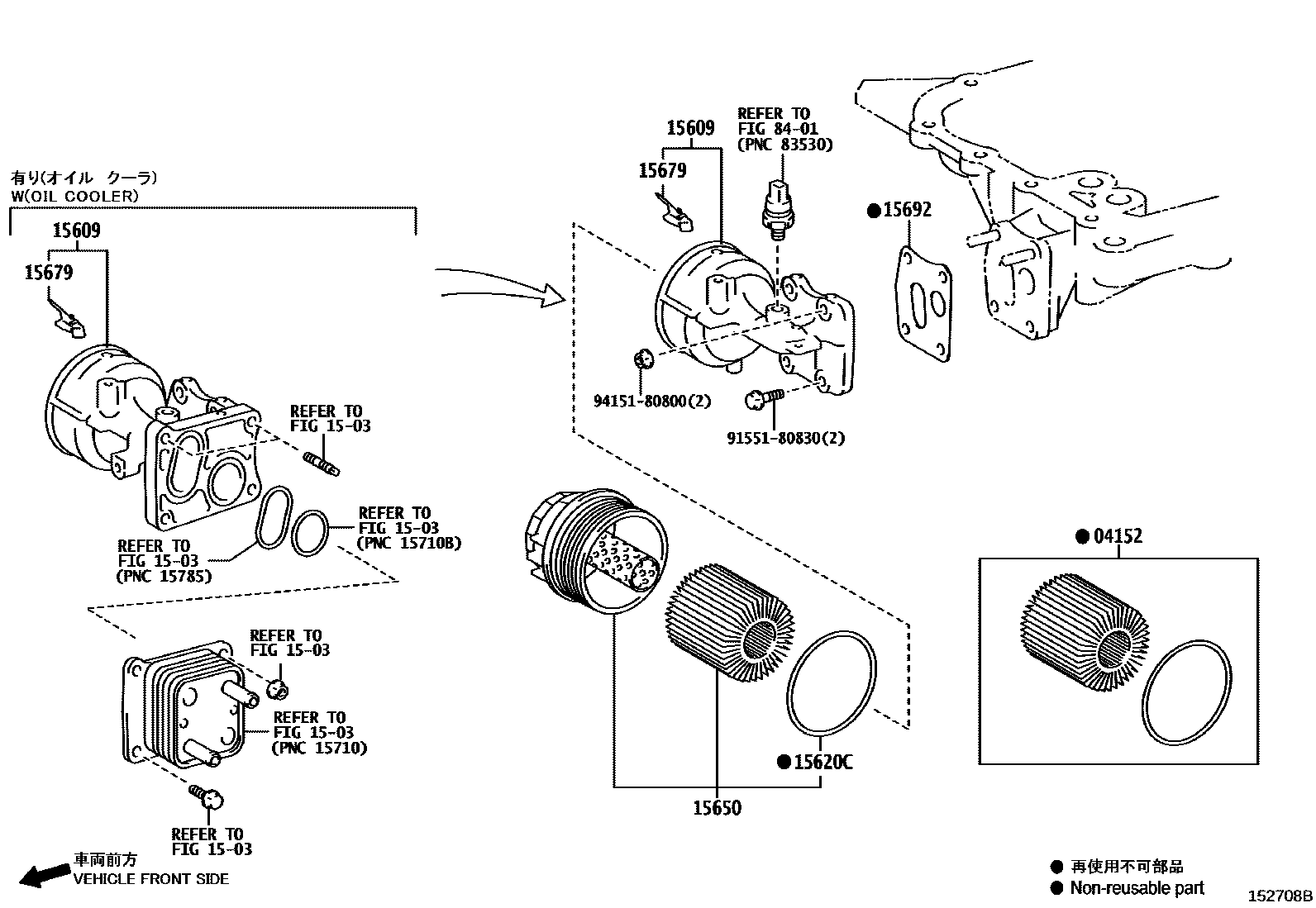

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-31110i8GR#..GSF50,GVF50201710-202010

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15609BRACKET SUB-ASSY, OIL FILTER

main15609-31051supersedes 15609-31061i8GRFXS..GVF50..GEN201710-202010

main15609-31061supersedes 15609-31051i8GRFKS..GSF50..GEN202010-202509

main15609-70010iV35AFTS..VXFA50201712-202010

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i8GRFKS..GSF50..GEN202010-202509

15650CAP ASSY, OIL FILTER W/ELEMEMT

main15650-31060i8GR#..GSF50,GVF50201710-202010

15679CLIP, OIL FILTER BRACKET

main15679-37011i8GR#..GSF50,GVF50201710-202010

15692GASKET, OIL FILTER BRACKET

main15692-31080i8GR#..GSF50,GVF50201710-202010

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9155180830

main91551-80830

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
