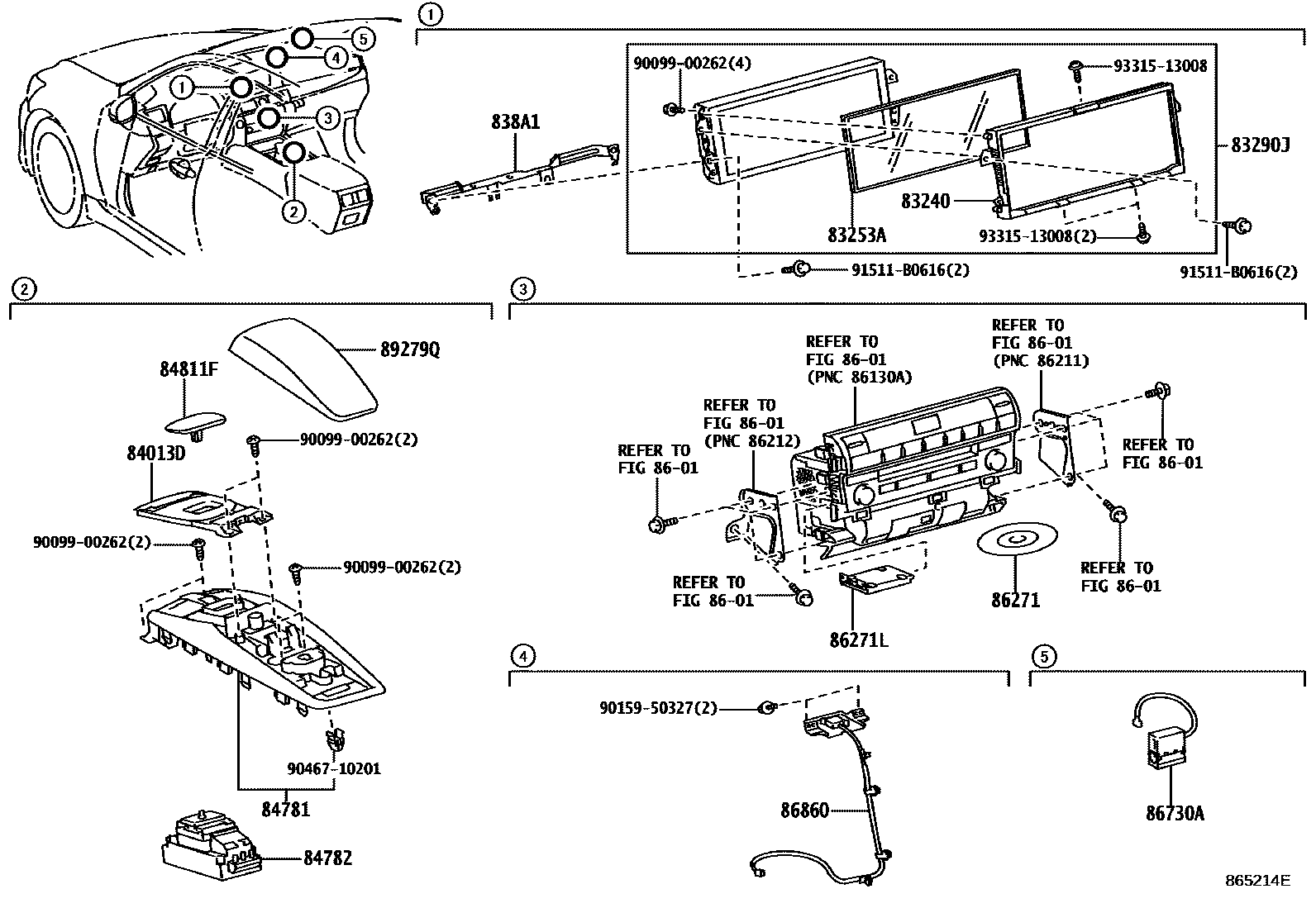

83240CASE ASSY, MULTI INFORMATION DISPLAY

main83811-50010i201209-201309

main83811-50080i201309

83253AGLASS, ACCESSORY METER

main83253-50010i201209-201309

main83253-50080i201309

83290JMETER ASSY, ACCESSORY

main83290-50020i201209-201309

HONGKONG,MACAO SPEC

main83290-50030i201209-201309

PHILIPPINES,VIETNAM SPEC; SOUTHEAST ASIA SPEC; THAILAND SPEC

main83290-50040i201209-201309

TAIWAN SPEC

main83290-50090i201309-201410

HONGKONG,MACAO SPEC

main83290-50100i201309-201410

MOROCCO SPEC; PHILIPPINES,VIETNAM SPEC; SOUTHEAST ASIA SPEC; THAILAND SPEC

main83290-50110i201309-201410

TAIWAN SPEC

main83290-50160i201410-201509

main83290-50170supersedes 83290-50200i201410-201509

MOROCCO SPEC; PHILIPPINES,VIETNAM SPEC; SOUTHEAST ASIA SPEC; THAILAND SPEC

main83290-50180i201410-201509

HONGKONG,MACAO SPEC

main83290-50230i201509-201706

main83290-50231i201707

main83290-50200i201410-201509

TAIWAN SPEC

838A1BRACKET, COMBINATION METER

main838A1-50020i201209

main838A1-50030i201209

84013DPANEL SUB-ASSY, INTEGRATION

main84013-50010i201209-201509

main84013-50020i201509-201708

84781SWITCH, REMOTE OPERATION

main84781-50010supersedes 84781-50020i201209-201509

BRAZIL SPEC

main84781-50030i201209-201509

main84781-50070supersedes 84781-50060i201509

BRAZIL SPEC

main84781-50090i201509

main84781-50020i201209-201410

PHILIPPINES,VIETNAM SPEC

main84781-50040i201209-201410

SOUTHEAST ASIA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main84781-50060i201609

LATIN AMERICA SPEC; PHILIPPINES,VIETNAM SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

84782BOARD, REMOTE OPERATION

main84782-50010i201302-201410

main84782-50011i201210-201302

main84782-50020i201410-201509

main84782-50030i201509

84811FKNOB, SWITCH

main84811-50010i201209-201410

main84811-50011i201410-201506

main84811-50020i201509

main84811-50030i201507-201509

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86271DISC, DISC PLAYER

main86271-30A91i201410-201412

MICRO SD CARD

main86271-30A92i201501-201507

MICRO SD CARD

main86271-30A93i201507-201509

MICRO SD CARD

main86271-30B11i201410-201507

MICRO SD CARD

main86271-30B12i201507-201509

MICRO SD CARD

main86271-30B31i201410-201507

MICRO SD CARD; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; PHILIPPINES,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICROSD CARD; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-30B32i201507-201509

MICRO SD CARD; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; PHILIPPINES,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICROSD CARD; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-30B41i201410-201509

MICRO SD CARD; TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-48330i201509-201608

MICRO SD CARD

main86271-48331i201608-201708

MICRO SD CARD

main86271-48340i201509-201512

MICRO SD CARD

main86271-48341i201601-201608

MICRO SD CARD

main86271-48342i201608-201702

MICRO SD CARD

main86271-48343i201702-201708

MICRO SD CARD

main86271-48370i201509-201608

MICRO SD CARD; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; PHILIPPINES,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICROSD CARD; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-48371i201608-201708

MICRO SD CARD; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; PHILIPPINES,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICROSD CARD; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-53381i201509-201609

MICRO SD CARD; TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86807-0W221i201309-201408

TAIWAN SPEC

main86807-0W222i201409-201410

TAIWAN SPEC

main86807-30131i201209-201408

main86807-30132i201409-201410

main86807-30151i201209-201408

MOROCCO SPEC; SOUTHEAST ASIA SPEC; THAILAND SPEC

main86807-30152i201409-201410

MOROCCO SPEC; SOUTHEAST ASIA SPEC; THAILAND SPEC

main86271-30B20i201410-201507

SOUTH AFRICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,MICROSD CARD

main86271-30B21i201507-201509

SOUTH AFRICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,MICROSD CARD

main86271-48350i201509-201608

BRAZIL SPEC,MICRO SD CARD

main86271-48351i201608-201708

BRAZIL SPEC,MICRO SD CARD

main86271-48380i201509-201609

AUSTRALIA,NEW ZEALAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-48381i201609-201708

AUSTRALIA,NEW ZEALAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-48390i201509-201608

SOUTH AFRICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,MICROSD CARD

main86271-48391i201608-201708

SOUTH AFRICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,MICROSD CARD

main86271-50B10i201410-201507

BRAZIL SPEC,MICRO SD CARD

main86271-50B11i201507-201509

BRAZIL SPEC,MICRO SD CARD

main86271-53382i201610-201708

MICRO SD CARD; TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER,MICRO SD CARD; TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-76041i201410-201509

AUSTRALIA,NEW ZEALAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86807-06010i201309-201407

AUSTRALIA,NEW ZEALAND SPEC

main86807-06011i201408-201410

AUSTRALIA,NEW ZEALAND SPEC

main86807-0W220i201209-201308

MAP DISC(DOP)-WITH(MAP DISK(DEALER OPTION)); TAIWAN SPEC&MAP DISC(DOP)-WITH(MAP DISK(DEALER OPTION))

main86807-30101i201209-201408

HONGKONG,MACAO SPEC

main86807-30102i201409-201410

HONGKONG,MACAO SPEC

main86807-30120i201209-201308

AUSTRALIA,NEW ZEALAND SPEC

main86807-30141i201209-201408

SOUTH AFRICA SPEC

main86807-30142i201409-201410

SOUTH AFRICA SPEC

main86807-76010i201209-201408

BRAZIL SPEC

main86807-76011i201409-201410

BRAZIL SPEC

86271LHARD DISC

main86271-30712i201209-201301

main86271-30713i201302-201309

main86271-30714i201309-201401

main86271-30715i201401-201408

main86271-30716i201408-201410

main86271-30751i201209-201309

main86271-30752i201309-201408

main86271-30753i201408-201410

main86271-30781i201209-201309

SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-30782i201309-201408

MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-30810i201209-201410

main86271-30830i201209-201410

TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-53360i201410-201708

main86271-30700i201209-201309

FRANCE,REUNION,MONACO,ANDORRA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); FRANCE,REUNION,MONACO,ANDORRA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); ISRAEL SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); ISRAEL SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86271-30731i201209-201308

AUSTRALIA,NEW ZEALAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-30732i201309-201410

AUSTRALIA,NEW ZEALAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-30761i201209-201309

SOUTH AFRICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2

main86271-30762i201309-201408

SOUTH AFRICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2

main86271-30783i201408-201410

MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; MOROCCO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; SOUTHEAST ASIA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,10SPEAKER; THAILAND SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-30790i201209-201309

PHILIPPINES,VIETNAM SPEC

main86271-30820i201209-201410

LATIN AMERICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86271-30850i201409-201410

HONGKONG,MACAO SPEC; HONGKONG,MACAO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-30851i201209-201308

HONGKONG,MACAO SPEC; HONGKONG,MACAO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-30852i201309-201409

HONGKONG,MACAO SPEC; HONGKONG,MACAO SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-48250i201209-201210

BRAZIL SPEC
