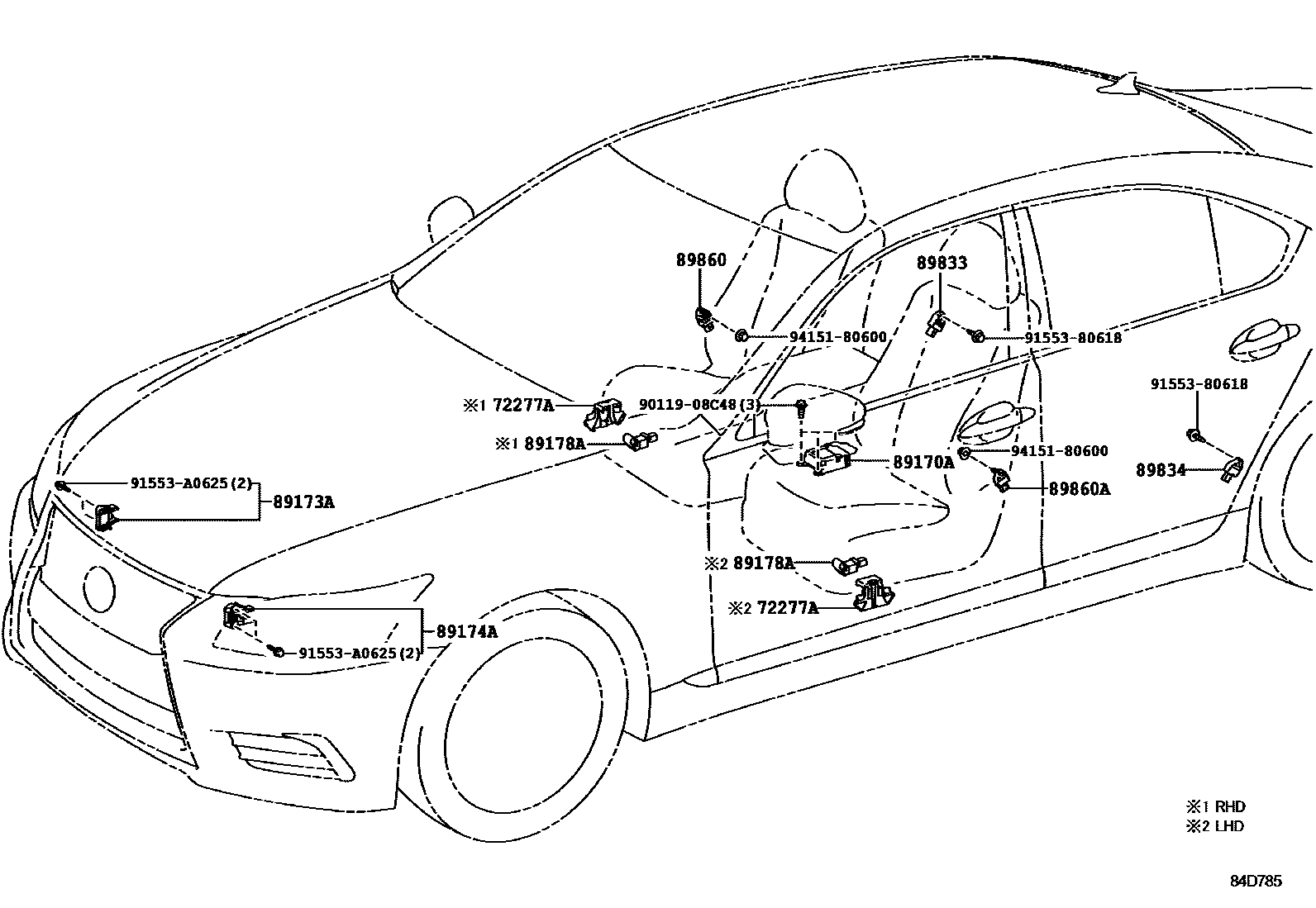

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89170ACOMPUTER ASSY, AIRBAG
TAIWAN SPEC&VERSION L
AUSTRALIA,NEW ZEALAND SPEC; HONGKONG,MACAO SPEC; SOUTHEAST ASIA SPEC; THAILAND SPEC
AUSTRALIA,NEW ZEALAND SPEC&VERSION L; HONGKONG,MACAO SPEC&VERSION L; SOUTHEAST ASIA SPEC&VERSION L; THAILAND SPEC&VERSION L
TAIWAN SPEC
EXECUTIVE PACKAGE(5SEAT)
VERSION L
EXECUTIVE PACKAGE(4SEAT); EXECUTIVE PACKAGE(5SEAT)
VERSION L&PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)
VERSION L
VERSION L&PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
89833SENSOR, AIRBAG, REAR RH
89834SENSOR, AIRBAG, REAR LH
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
9011908C48
main90119-08C48
9155380618
main91553-80618
91553A0625
main91553-A0625
9415180600
main94151-80600
13 parts on this diagram · 1 diagram in section
