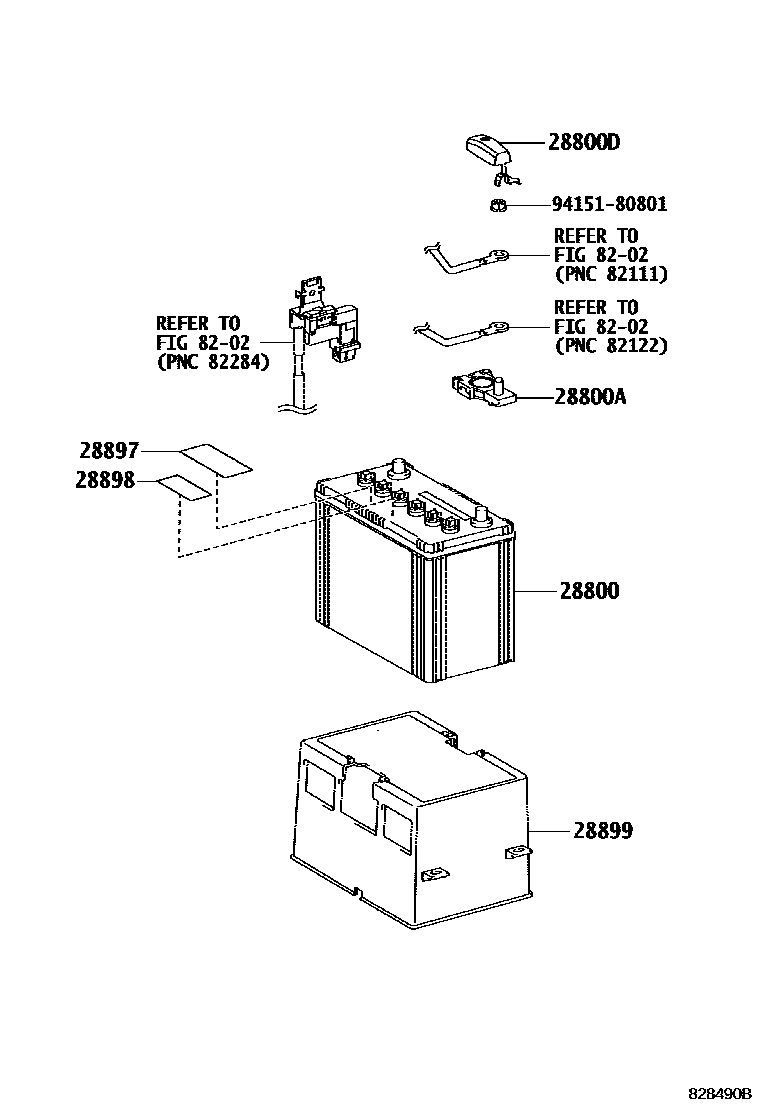

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38090i1URFSE..USF40,41..RHD201209-201708

105D31L

main28800-38110i1UR#..USF4#..LHD201209-201708

105D31R

main28800-28220i1URFE..USF41..EUR201403-201602

105D31R,BRAZIL SPEC

main28800-28221i1URFE..USF41..EUR201603-201708

105D31R,BRAZIL SPEC

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1URFSE..USF40,41..RHD201209

main90982-05062i1UR#..USF4#..LHD201209

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50460i1UR#..USF4#..LHD201209

main82821-50470i1URFSE..USF40,41..RHD201209

28897PLATE, BATTERY CAUTION

main28897-31010i1URFSE..USF41,46..CHI201209

main28897-31040i1URFSE..USF40,45..LHD..EUR; 1URFSE..USF46..EUR201209

RUSSIA SPEC

main28897-36030i1UR#..USF40,41..GCC201609

28898PLATE, BATTERY

main28898-46020i1UR#..USF4#..EUR; 1URFE..USF41..EUR; 1URFSE..USF40..RHD201209

AUSTRALIA,NEW ZEALAND SPEC; BRAZIL SPEC

28899INSULATOR, BATTERY

main28899-38041i1UR#..USF4#201209

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

8 parts on this diagram · 1 diagram in section
