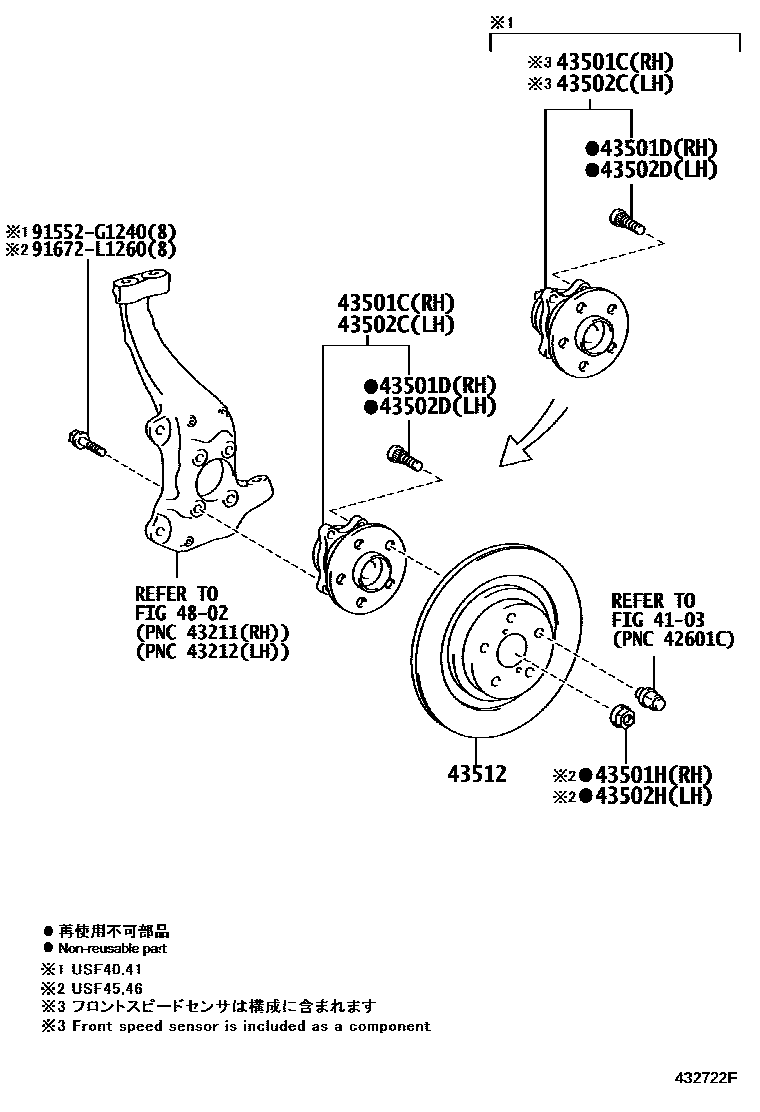

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-50043iUSF40,41201209-201708

main43550-50062iUSF45,46201209-201708

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×5iUSF4#201209

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iUSF45,46201209

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-50062iUSF45,46201209-201708

main43560-50013iUSF40,41201209-201708

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×5iUSF4#201209

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iUSF45,46201209

43512DISC, FRONT

main43512-50250supersedes 43512-50240iUSF41..LHD..D4..EUR; USF41..RHD;USF41..HTWC;USF40,45,46;USF41..D4..(CHI,GCC)201209-201708

PHILIPPINES,VIETNAM SPEC,RH; RH

main43516-50010iUSF41..LHD..D4..EUR; USF41..RHD;USF41..HTWC;USF40,45,46;USF41..D4..(CHI,GCC)201209-201708

LH; PHILIPPINES,VIETNAM SPEC,LH

main43512-0W080iUSF40..GCC; USF40..LHD..EUR201410-201509

RUSSIA SPEC&THE CRAFTED LINE,RH; THE CRAFTED LINE,RH

main43512-50240×2iUSF40,41..RHD; USF41..LHD..D4..EUR201209-201708

HONGKONG,MACAO SPEC

main43516-0W010iUSF40; USF40..RHD201210-201708

F SPORT,LH; HONGKONG,MACAO SPEC&F SPORT,LH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552G1240

main91552-G1240

91672L1260

main91672-L1260

11 parts on this diagram · 1 diagram in section
