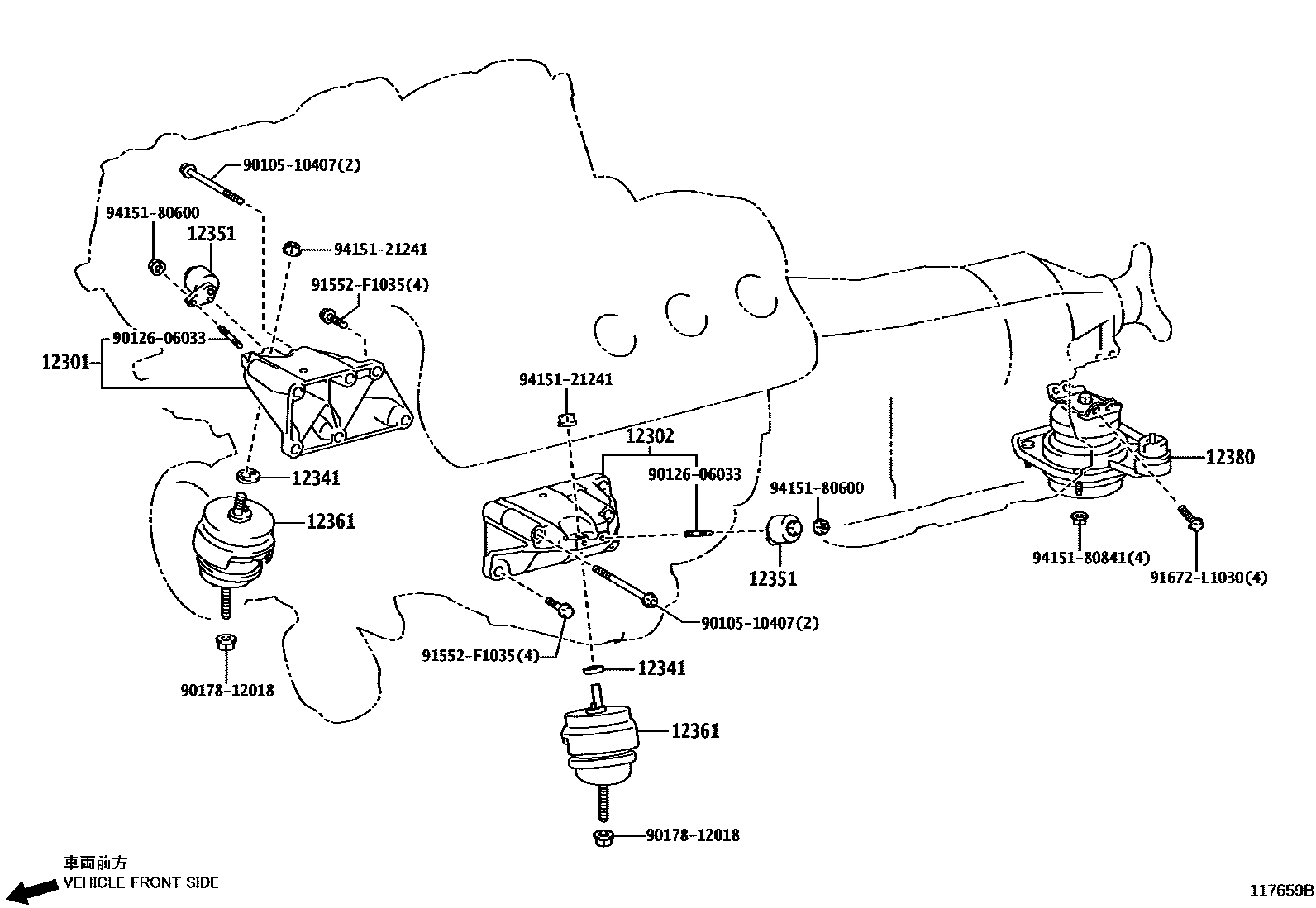

MOUNTING

0001 1 0002 1

12301BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH

main12301-38190i1UR#..USF40,41201209

12302BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT LH

main12302-38170i1UR#..USF40,41201209

12341SPACER, ENGINE MOUNTING

main12319-38010×2i1UR#..USF40,41; 1URFSE..USF45,46201209

NO.1

main12341-38010i1URFSE..USF45,46201209

NO.2

12351DAMPER, ENGINE MOUNTING

main12351-38010×2i1UR#..USF40,41201209

main12351-38020i1URFSE..USF45,46201209

NO.2

main12351-38030i1URFSE..USF45,46201209

NO.1

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38210×2i1URFSE..USF45,46201209

main12361-38281×2i1UR#..USF40,41201209

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-38030i1UR#..USF40,41201209-201504

main12380-38031i1UR#..USF40,41201505

9010510407

main90105-10407

9012606033

main90126-06033

9017812018

main90178-12018

91552F1035

main91552-F1035

91672L1030

main91672-L1030

9415121241

main94151-21241

9415180600

main94151-80600

9415180841

main94151-80841

14 parts on this diagram · 2 diagrams in section
