HORN

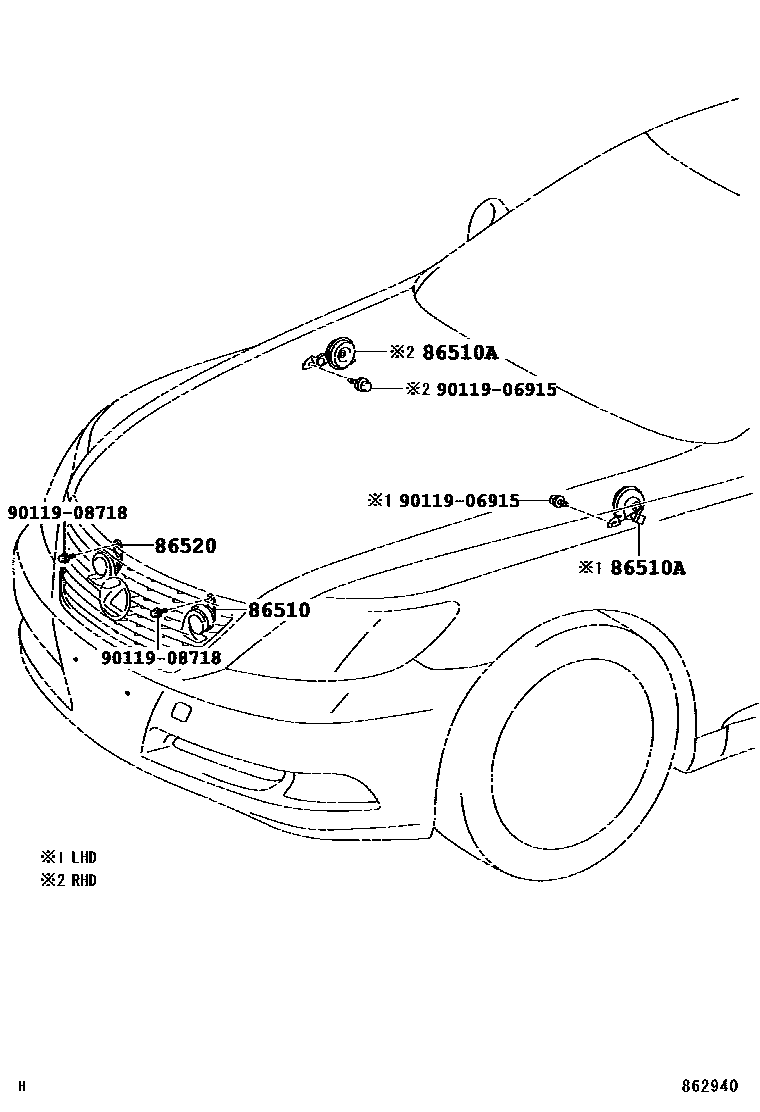

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-30700i200909

main86510-30690i200608-200610

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC

main86510-30691i200611-200809

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC

main86510-50200i201009

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC

86510AHORN ASSY, SECURITY

main86560-50010i200608-200809

ANTI-THEFT SYSTEM-WITH

main86560-50020i200608-200809

ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)

86520HORN ASSY, LOW PITCHED

main86520-30610i200608-200809

main86520-30600i200608-200610

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC

main86520-30601i200611-200809

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC

main86520-50170i201009

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC

9011906915

main90119-06915

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
