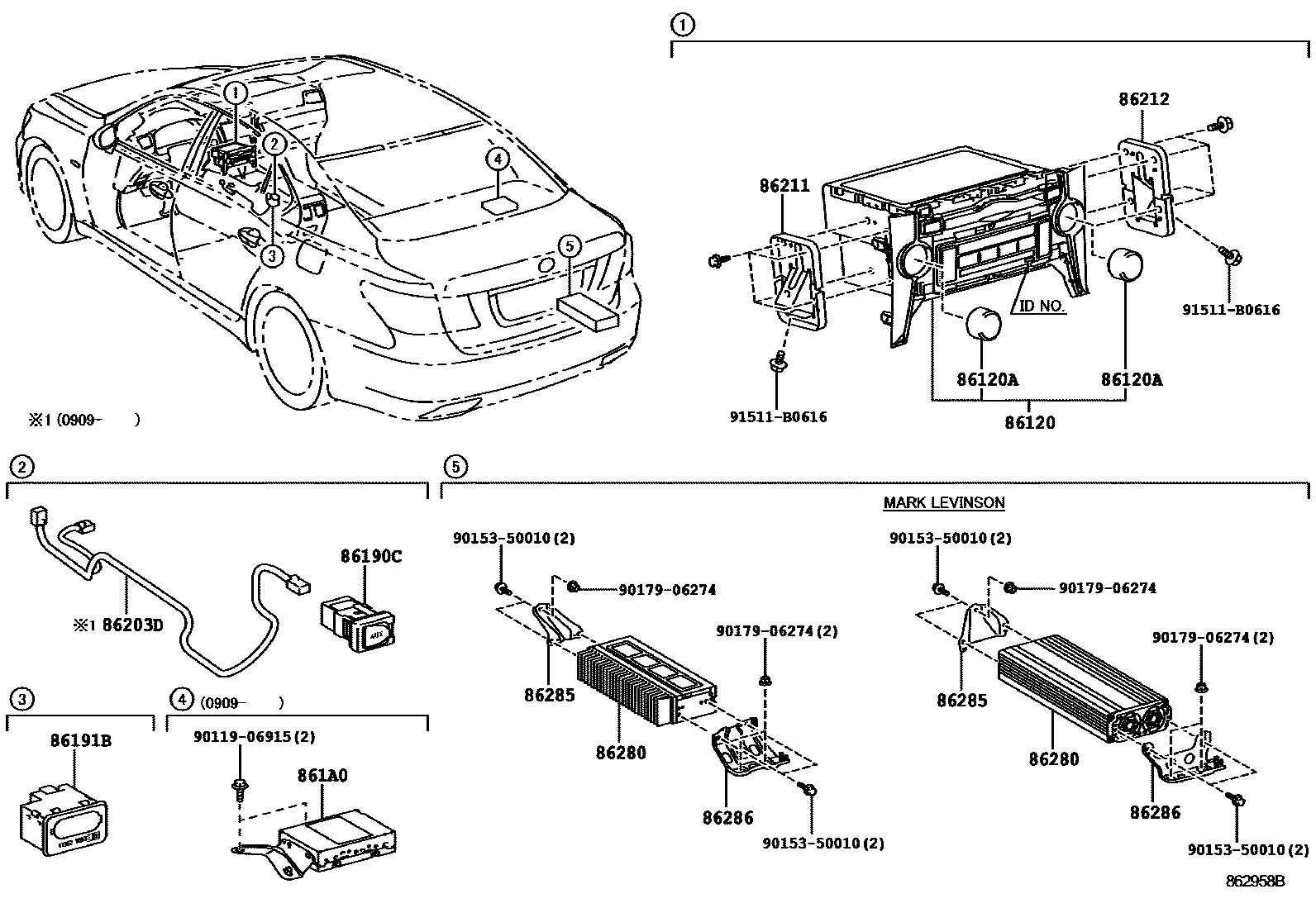

Toyota LEXUS LS460/460L — RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
86120AKNOB, RADIO RECEIVER SWITCH
86190CADAPTER ASSY, STEREO JACK, NO.1
86191BTERMINAL, VIDEO(VIDEO ADAPTER)
861A0COMPUTER ASSY, MULTI-MEDIA INTERFACE
86203DWIRE, STEREO COMPONENT, NO.1
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
9011906915
9015350010
9017906274
91511B0616
15 parts on this diagram · 3 diagrams in section
RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota LEXUS LS460/460L
This section contains 19 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota LEXUS LS460/460L. Key components include: CONDENSER, RADIO SETTING, FILTER, NOISE, RECEIVER ASSY, RADIO.
