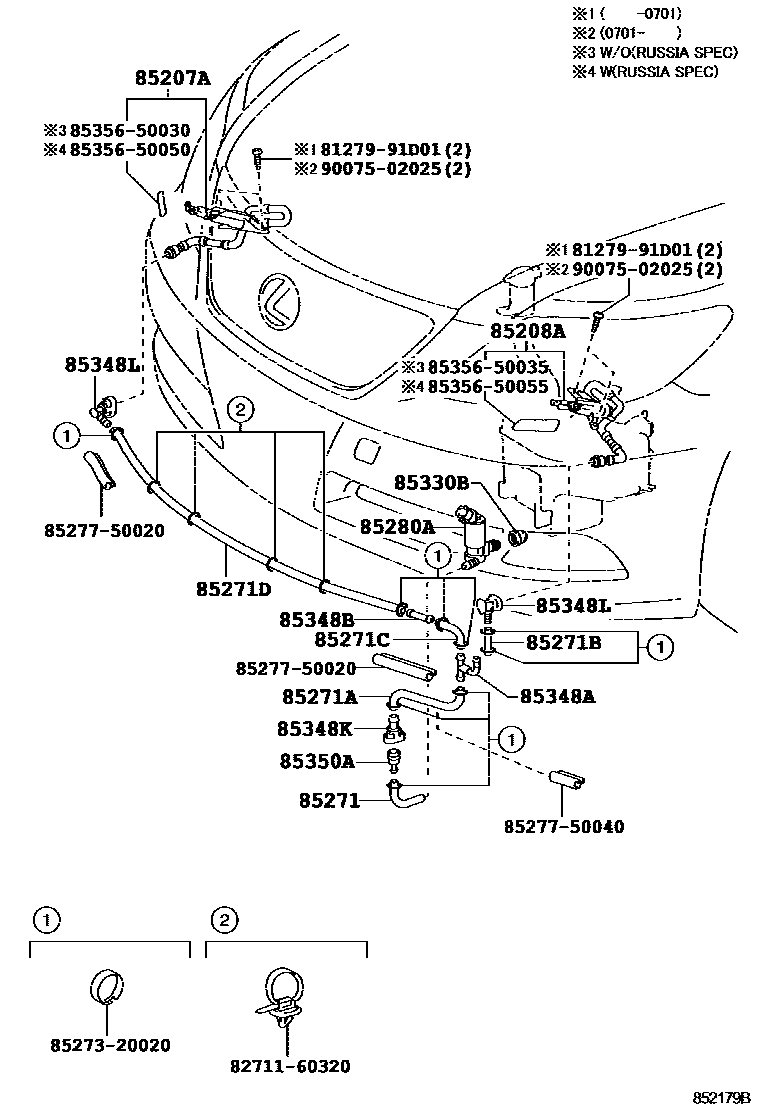

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
85271AHOSE, HEADLAMP CLEANER, NO.2
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWERSLIDE)
RUSSIA SPEC
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=50,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
L=50
L=50,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
L=50,RUSSIA SPEC
85271CHOSE, HEADLAMP CLEANER, NO.4
L=60,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
L=60
L=60,RUSSIA SPEC
L=60,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
85271DHOSE, HEADLAMP CLEANER, NO.5
L=70
L=1600,RUSSIA SPEC
L=1600
L=1600,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
L=1600,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
8127991D01WASHER, SIDE TURN SIGNAL LAMP
main81279-91D01
8271160320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60320
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527750020HOSE, HEADLAMP CLEANER, C
main85277-50020
8527750040HOSE, HEADLAMP CLEANER, C
main85277-50040
8535650030PACKING (FOR WINDSHIELD WASHER JAR)
main85356-50030
8535650035PACKING (FOR WINDSHIELD WASHER JAR)
main85356-50035
8535650050PACKING (FOR WINDSHIELD WASHER JAR)
main85356-50050
8535650055PACKING (FOR WINDSHIELD WASHER JAR)
main85356-50055
9007502025
main90075-02025
24 parts on this diagram · 2 diagrams in section
