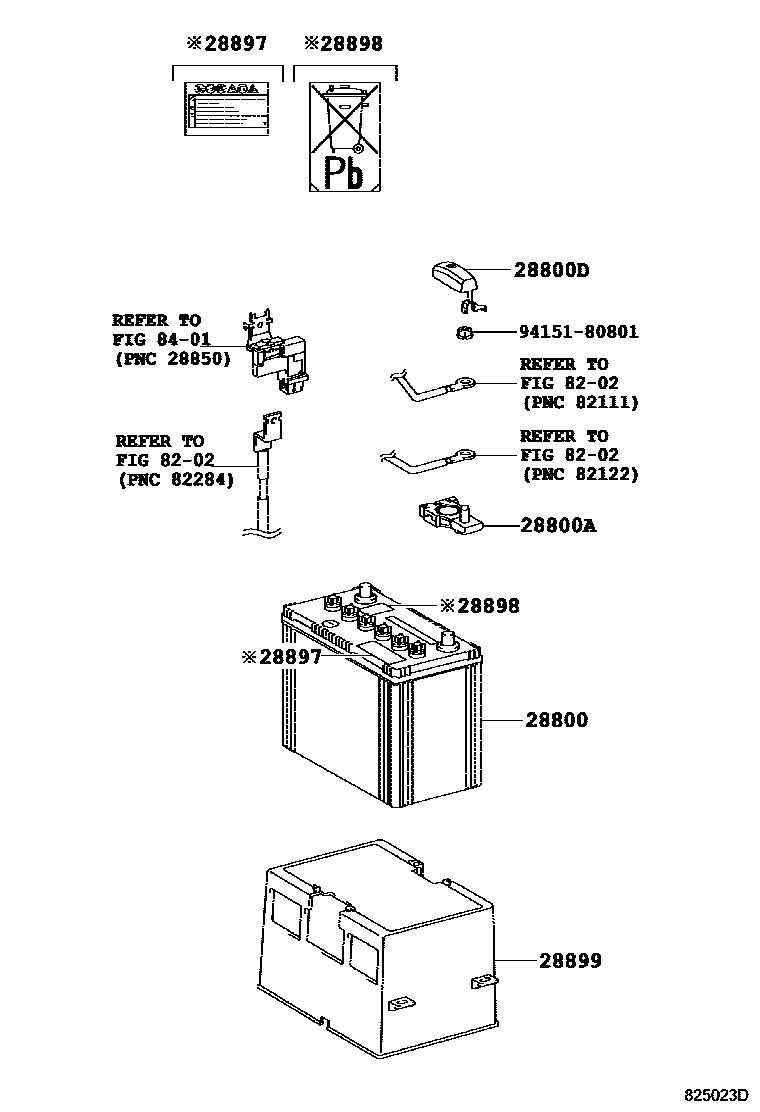

BATTERY & BATTERY CABLE
28800BATTERY
main28800-38100supersedes 28800-38110i1URFE..USF4#;1URFSE..USF41..LHD; 1URFSE..USF40..LHD200608-200809
80D26R; 80D26R,ANTI-THEFT SYSTEM-WITH; 80D26R,ANTI-THEFT SYSTEM-WITH(SIREN)
80D26L; 80D26L,ANTI-THEFT SYSTEM-WITH
105D31L; 105D31L,ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)
105D31R; 105D31R,ANTI-THEFT SYSTEM-WITH(SENSOR+SIREN)
28800ATERMINAL, BATTERY POSITIVE
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
28897PLATE, BATTERY CAUTION
BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC
28898PLATE, BATTERY
28899INSULATOR, BATTERY
main28899-38030supersedes 28899-38040i1URFE..USF4#;1URFSE..USF41; 1URFSE..USF40; 1URFSE..USF40..LHD200608-200809
ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH(SIREN)
ANTI-THEFT SYSTEM-WITH(SENSOR+SIREN)
ANTI-THEFT SYSTEM-WITH(SENSOR+SIREN); ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9415180801
main94151-80801
9 parts on this diagram · 1 diagram in section
