HEADLAMP
52133JREINFORCEMENT, FRONT BUMPER BAR, RH
52134JREINFORCEMENT, FRONT BUMPER BAR, LH
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
12V 65W,HALOGEN
12V 65W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
45V 35W
45V 35W
42V 35W
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81135ACAP, LOCKING
81136DCOVER, HEADLAMP
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
8505HEADLAMP CLEANER
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85663AMOTOR, HEADLAMP SWIVEL, RH
85664BMOTOR, HEADLAMP SWIVEL, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
8111950280SCREW, HEADLAMP
main81119-50280
9007501017
main90075-01017
9007502054
main90075-02054
9007502727
main90075-02727
9010506298
main90105-06298
9010906293
main90109-06293

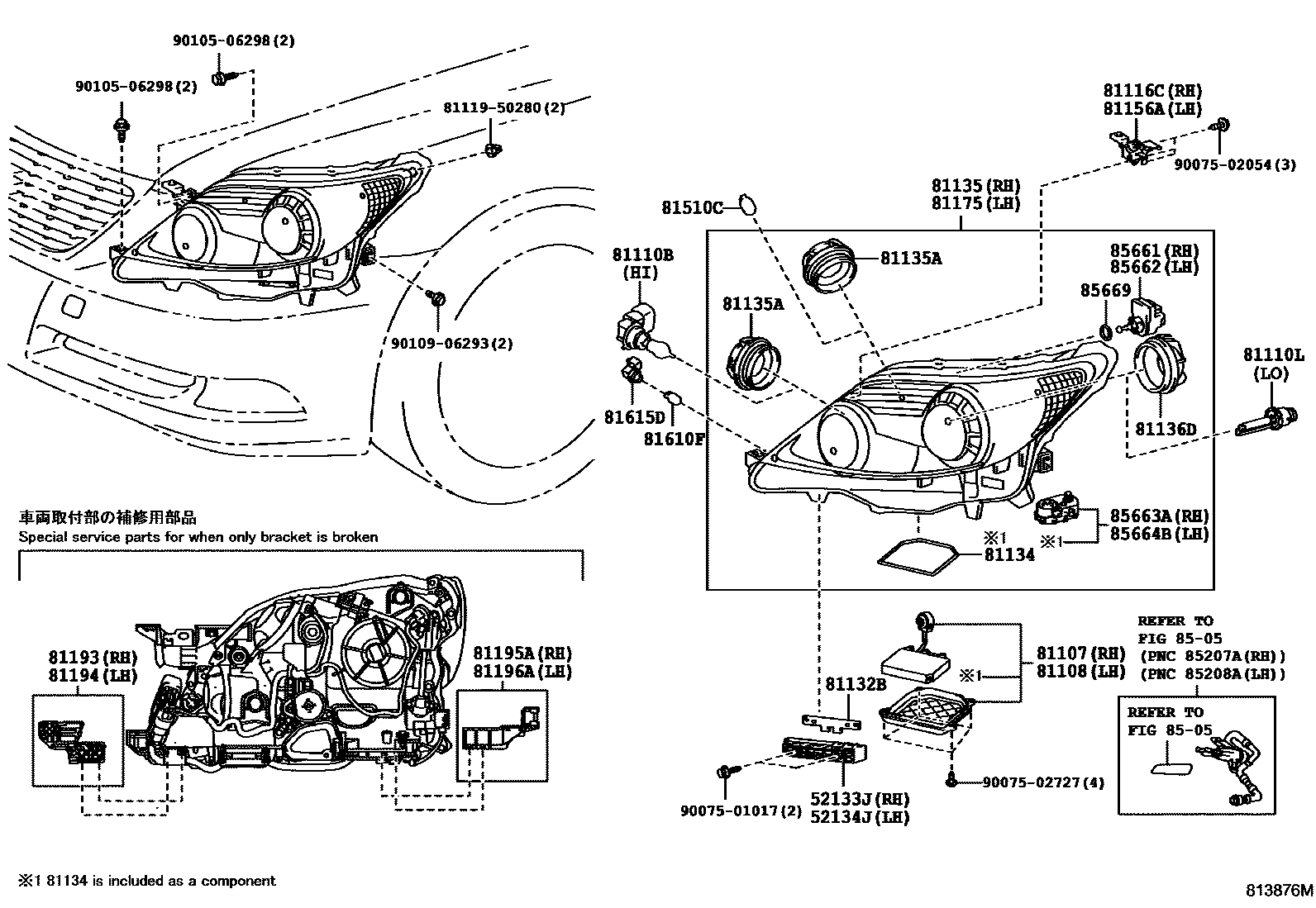

33 parts on this diagram · 4 diagrams in section
