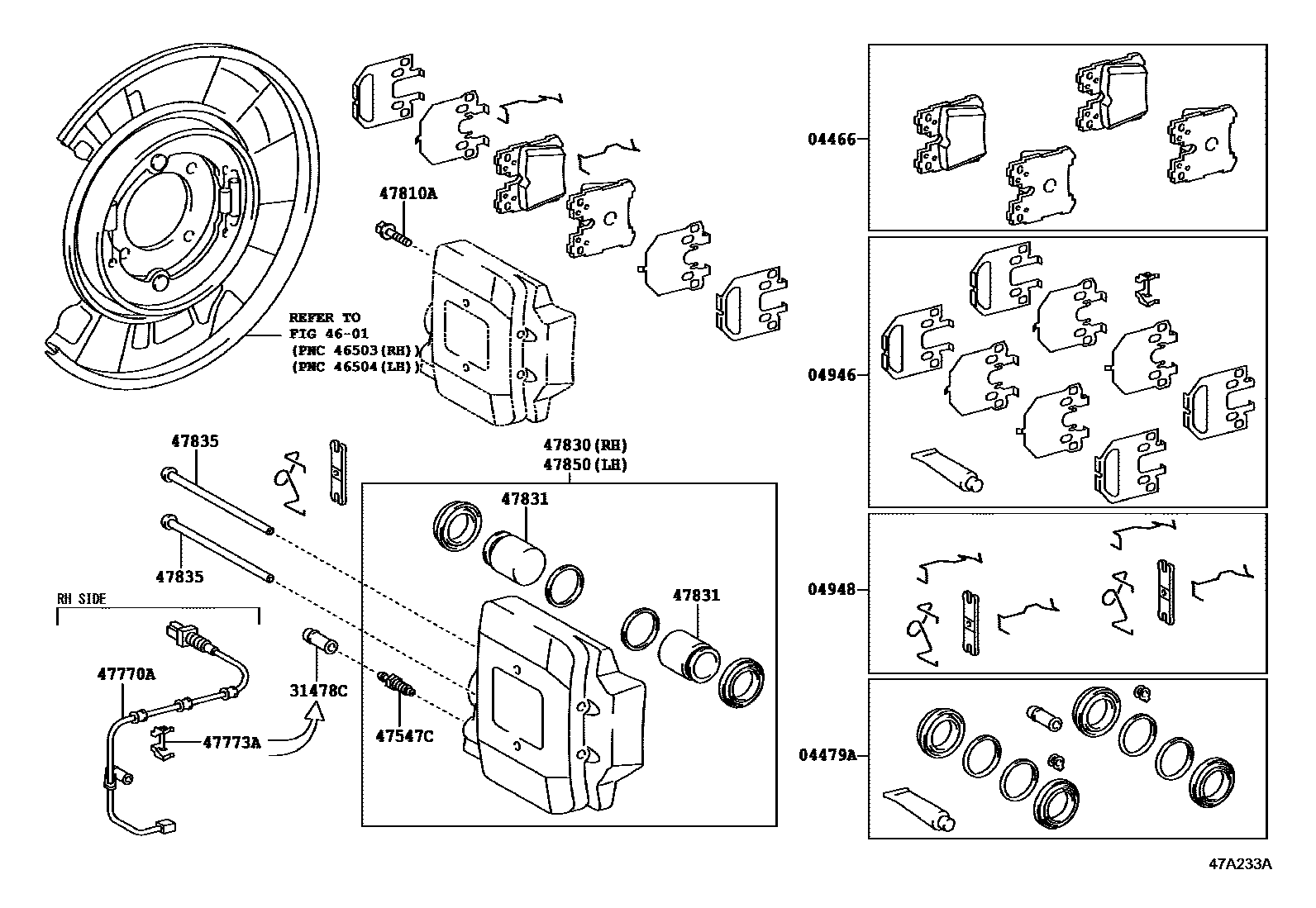

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK TEXTAR T4146
MARK TEXTAR T4146
MARK TEXTAR T4146
MARK ADVICS PV565H,FORMOSA SPEC; MARK ADVICS PV565H,HONG KONG SPEC; MARK ADVICS PV565H,SINGAPORE SPEC
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
FRONT WHEEL BRAKE-17INCHES DISC
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601PARKING BRAKE & CABLE
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47770AWIRE ASSY, PAD WEAR INDICATOR, RH
FORMOSA SPEC; HONG KONG SPEC; SINGAPORE SPEC
47773ARETAINER, PAD WEAR INDICATOR
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47830CYLINDER ASSY, DISC BRAKE, REAR RH
FORMOSA SPEC; HONG KONG SPEC; SINGAPORE SPEC
FRONT WHEEL BRAKE-19INCHES DISC
47831PISTON, REAR DISC BRAKE
47835PIN, REAR DISC BRAKE PAD GUIDE
47850CYLINDER ASSY, DISC BRAKE, REAR LH
FORMOSA SPEC; HONG KONG SPEC; SINGAPORE SPEC
FRONT WHEEL BRAKE-19INCHES DISC
14 parts on this diagram · 2 diagrams in section
