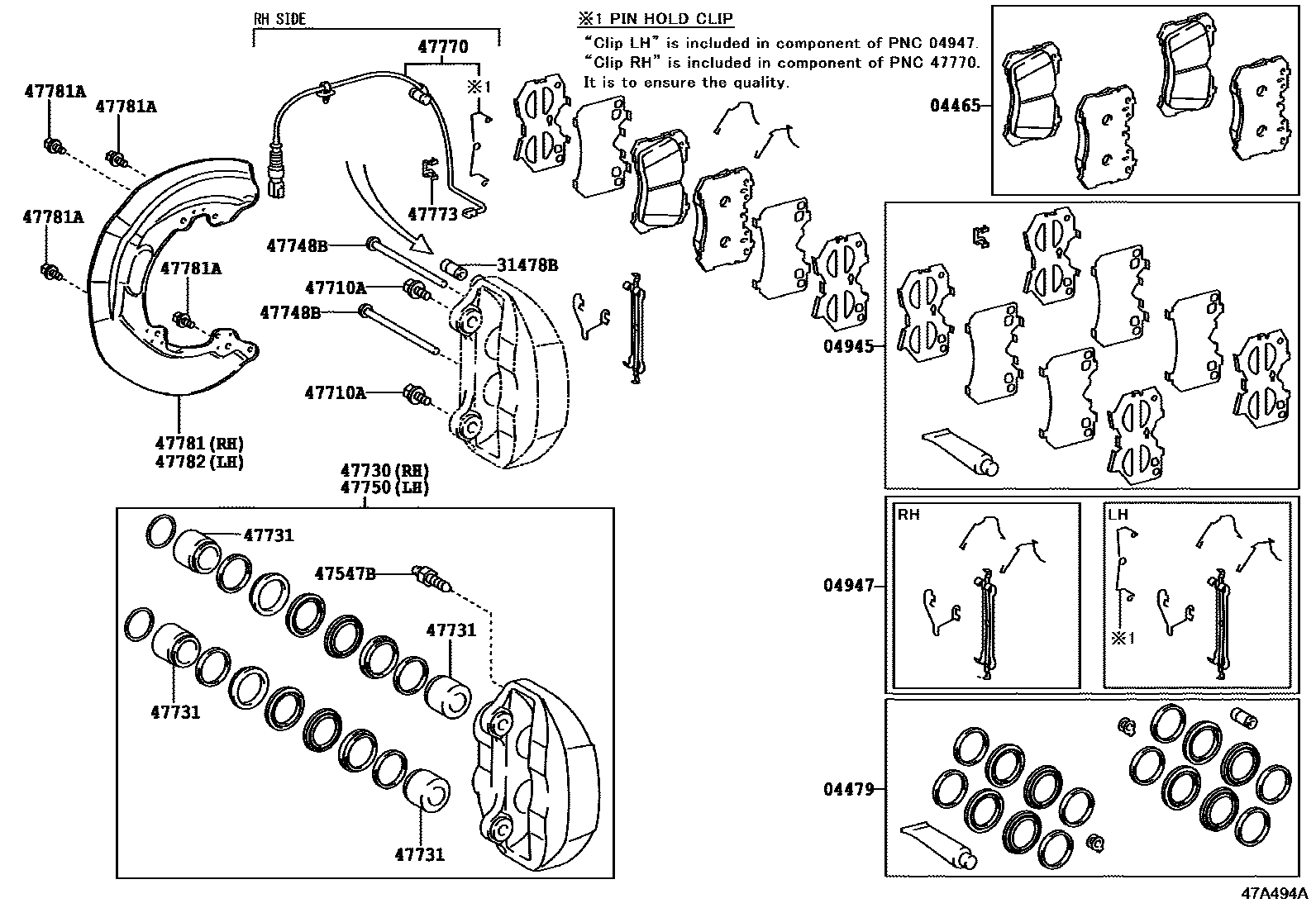

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1W/O(MAKER MARK=BREMBO) 0003 1W(MAKER MARK=BREMBO)

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W110iUSF4#200608-201209

TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-50040iUSF4#200608-200909

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50080iUSF4#200608-200909

main04945-50110iUSF4#200909

REFER ILLUST.

04947FITTING KIT, DISC BRAKE, FRONT

main04947-50120iUSF4#200608-200909

main04947-50130iUSF4#200909

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iUSF4#200608-200909

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iUSF4#200608-200909

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180iUSF4#200608-201209

*14-1.5PX40-35.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50210iUSF4#200608-200909

47731PISTON, FRONT DISC BRAKE

main47731-50200iUSF4#200608-200909

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50200iUSF4#200608-200909

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50210iUSF4#200608-200909

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50090iUSF4#200608-200909

47773RETAINER, PAD WEAR INDICATOR

main47773-50030iUSF4#200608-200909

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50060iUSF4#200608-201209

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508iUSF4#200608-201209

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50060iUSF4#200608-201209

16 parts on this diagram · 3 diagrams in section
