ENGINE OVERHAUL GASKET KIT

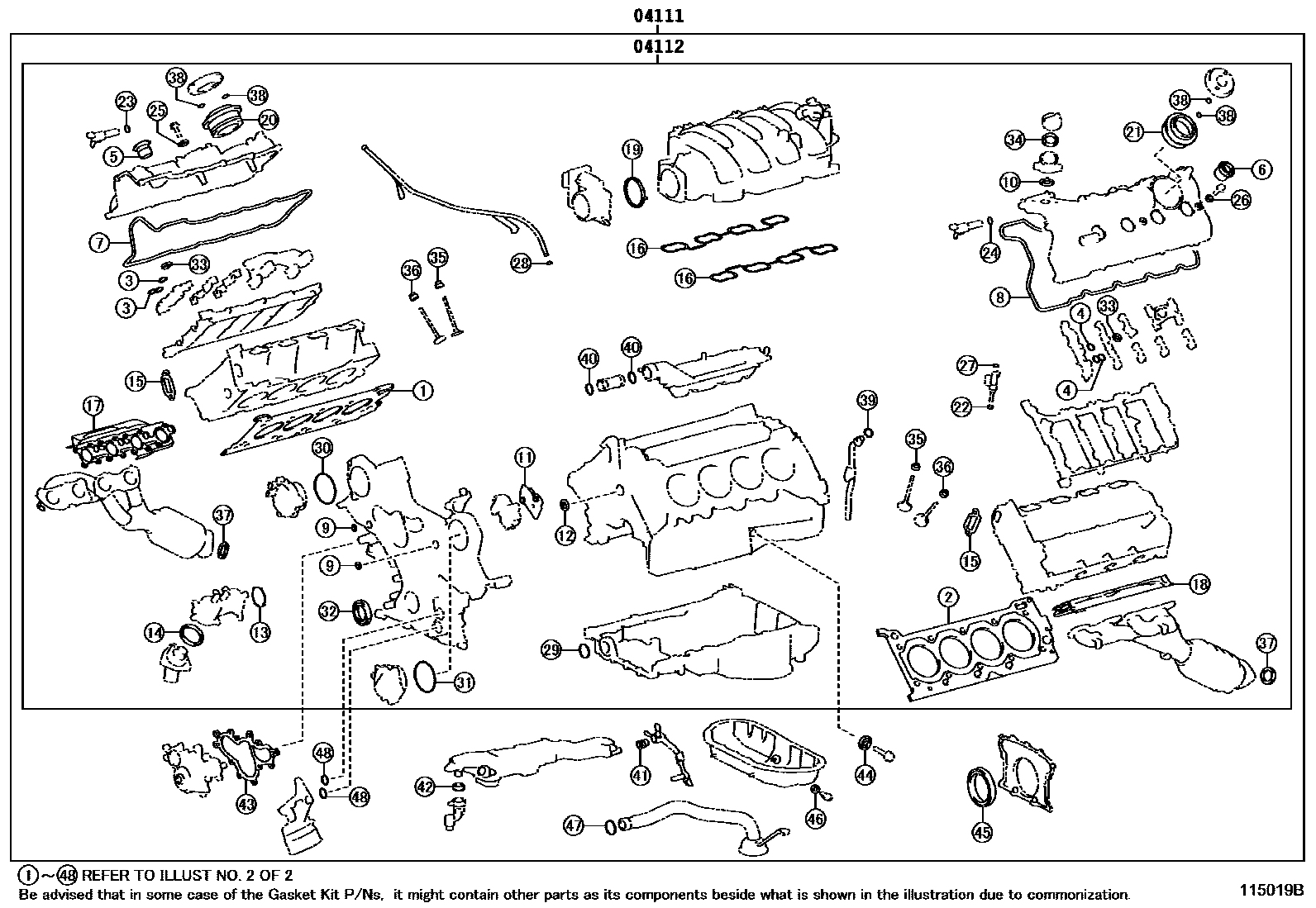

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-38080i200608-200705

main04111-38081i200705-200809

main04111-38082i201003

main04111-38100i200608-200705

main04111-38101i200809-200909

main04111-38102i201003

main04111-38171i200809-200909

main04111-38172i201003

04112GASKET KIT, ENGINE VALVE GRIND

main04112-38100i200608-200705

main04112-38101i200909-201003

main04112-38102i201003

main04112-38120i200608-200705

main04112-38121i200705-200809

main04112-38122i201003

main04112-38161i200909-201003

main04112-38162i201003

2 parts on this diagram · 4 diagrams in section
