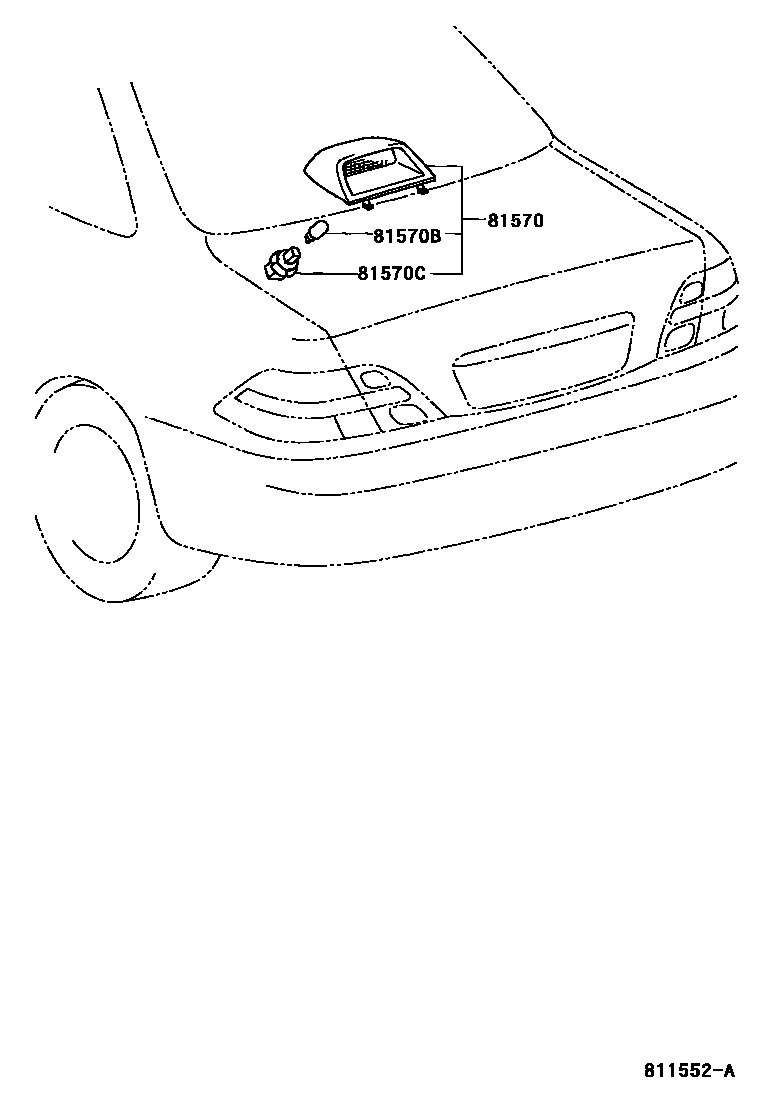

CENTER STOP LAMP
81570LAMP ASSY, CENTER STOP
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM04
CLOVEBROWN,TRIM03
W(PRIVACY GLASS),DK.CHARCOAL,TRIM1#
W(PRIVACY GLASS),BLACK,TRIM2#
W(PRIVACY GLASS),SANDAL WOOD,TRIM04
W(PRIVACY GLASS),CLOVEBROWN,TRIM03
81570BBULB (FOR CENTER STOP LAMP)
12V 21W
81570CSOCKET, CENTER STOP LAMP
3 parts on this diagram · 1 diagram in section
