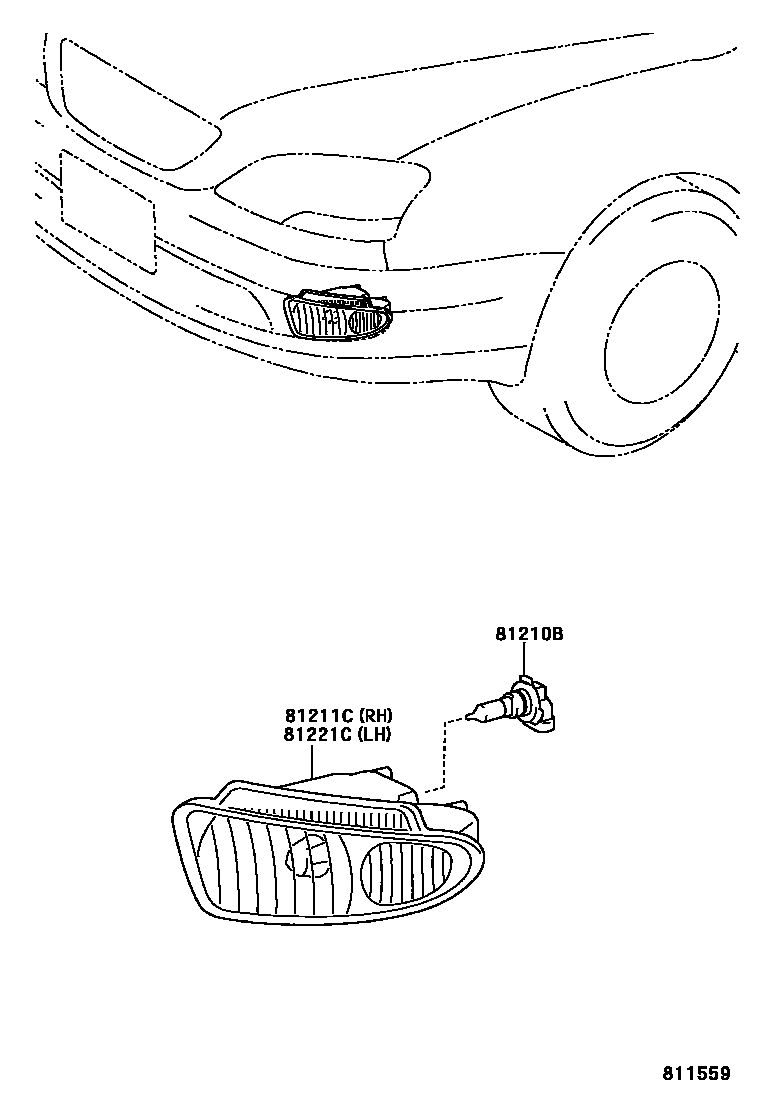

FOG LAMP

0001 1 0002 1

81210BBULB, FOG LAMP

main90080-81040iUCF30200008-200307

12V 51W

main90981-13047iUCF30200307

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-50050iUCF30200008-200108

main81211-50051iUCF30200108-200307

main81211-50070iUCF30200307

81221CLAMP UNIT, FOG LAMP, LH

main81221-50050iUCF30200008-200108

main81221-50051iUCF30200108-200307

main81221-50070iUCF30200307

3 parts on this diagram · 2 diagrams in section
