SEAT BELT & CHILD RESTRAINT SEAT

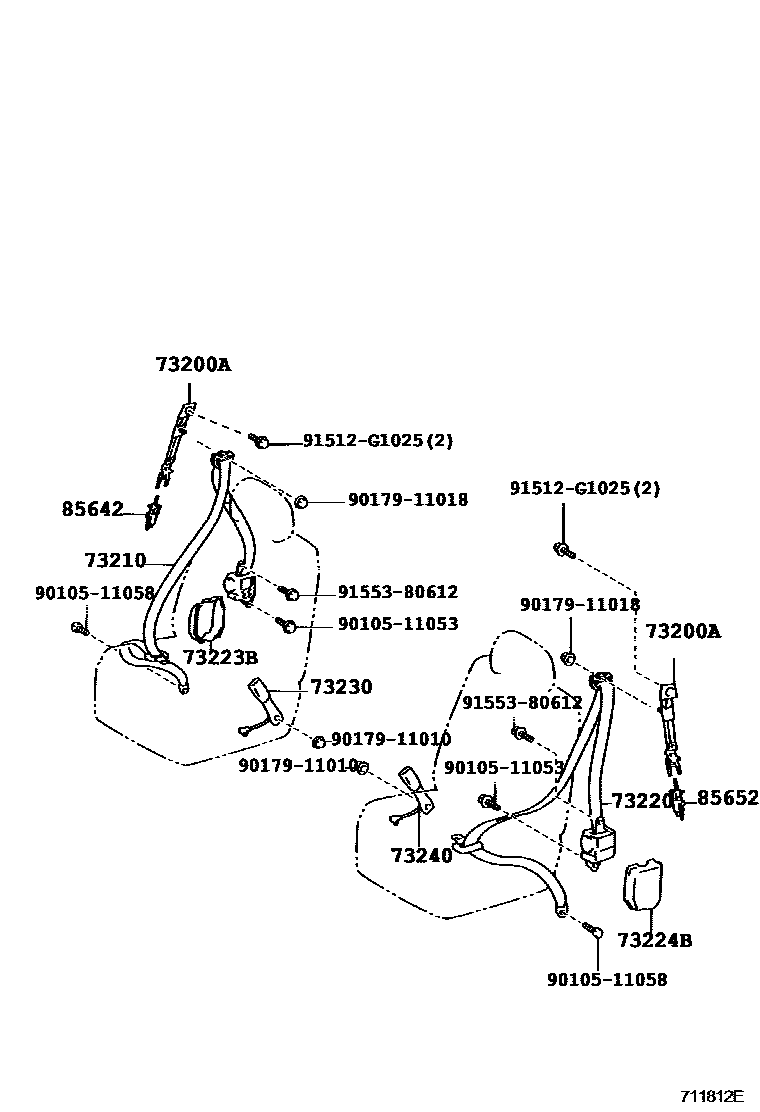

Parts diagram
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-50080×2i200008-200307
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-50200-A0i200107-200307
IVORY,TRIM04
main73210-50200-A1i200008-200107
ECRU,TRIM03
main73210-50200-A2i200307-200608
IVORY,TRIM07
main73210-50200-A3i200307-200608
ECRU,TRIM00
main73210-50200-B0i200107-200307
GRAY,TRIM1#
main73210-50200-B1i200307-200608
GRAY,TRIM1#
main73210-50200-C0i200107-200307
BLACK,TRIM2#
main73210-50200-C1i200307-200608
BLACK,TRIM21,24
main73210-50210-A0i200107-200307
IVORY,TRIM04
main73210-50210-A1i200107-200307
ECRU,TRIM03
main73210-50210-A2i200307-200608
IVORY,TRIM07
main73210-50210-A3i200307-200608
ECRU,TRIM00
main73210-50210-B0i200107-200307
GRAY,TRIM1#
main73210-50210-B1i200307-200608
GRAY,TRIM1#
main73210-50210-C0i200107-200307
BLACK,TRIM2#
main73210-50210-C1i200307-200608
BLACK,TRIM21,24
main73210-50211-A2i200307-200405
CHINA SPEC,IVORY,TRIM07
main73210-50211-A3i200307-200405
CHINA SPEC,ECRU,TRIM00
main73210-50211-B1i200307-200405
CHINA SPEC,GRAY,TRIM1#
main73210-50211-C1i200307-200405
CHINA SPEC,BLACK,TRIM21,24
main73210-50212-A2i200405-200608
CHINA SPEC,IVORY,TRIM07
main73210-50212-A3i200405-200608
CHINA SPEC,ECRU,TRIM00
main73210-50212-B1i200405-200608
CHINA SPEC,GRAY,TRIM1#
main73210-50212-C1i200405-200608
CHINA SPEC,BLACK,TRIM21,24
main73210-50280-A0i200408-200608
PRE-COLLISION SYSTEM,IVORY,TRIM07
main73210-50280-A1i200408-200608
PRE-COLLISION SYSTEM,ECRU,TRIM00
main73210-50280-B0i200408-200608
PRE-COLLISION SYSTEM,GRAY,TRIM1#
main73210-50280-C0i200408-200608
PRE-COLLISION SYSTEM,BLACK,TRIM21,24
main73210-50290-A0i200408-200608
PRE-COLLISION SYSTEM,IVORY,TRIM07
main73210-50290-A1i200408-200608
PRE-COLLISION SYSTEM,ECRU,TRIM00
main73210-50290-B0i200408-200608
PRE-COLLISION SYSTEM,GRAY,TRIM1#
main73210-50290-C0i200408-200608
PRE-COLLISION SYSTEM,BLACK,TRIM21,24
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-50170-A0i200107-200307
IVORY,TRIM04
main73220-50170-A1i200107-200307
ECRU,TRIM03
main73220-50170-A2i200307-200608
IVORY,TRIM07
main73220-50170-A3i200307-200608
ECRU,TRIM00
main73220-50170-B0i200107-200307
GRAY,TRIM1#
main73220-50170-B1i200307-200608
GRAY,TRIM1#
main73220-50170-C0i200107-200307
BLACK,TRIM2#
main73220-50170-C1i200307-200608
BLACK,TRIM21,24
main73220-50171-A2i200307-200405
CHINA SPEC,IVORY,TRIM07
main73220-50171-A3i200307-200405
CHINA SPEC,ECRU,TRIM00
main73220-50171-B1i200307-200405
CHINA SPEC,GRAY,TRIM1#
main73220-50171-C1i200307-200405
CHINA SPEC,BLACK,TRIM21,24
main73220-50172-A2i200405-200608
CHINA SPEC,IVORY,TRIM07
main73220-50172-A3i200405-200608
CHINA SPEC,ECRU,TRIM00
main73220-50172-B1i200405-200608
CHINA SPEC,GRAY,TRIM1#
main73220-50172-C1i200405-200608
CHINA SPEC,BLACK,TRIM21,24
main73220-50190-A0i200107-200307
IVORY,TRIM04
main73220-50190-A1i200107-200307
ECRU,TRIM03
main73220-50190-A2i200307-200608
IVORY,TRIM07
main73220-50190-A3i200307-200608
ECRU,TRIM00
main73220-50190-B0i200107-200307
GRAY,TRIM1#
main73220-50190-B1i200307-200608
GRAY,TRIM1#
main73220-50190-C0i200107-200307
BLACK,TRIM2#
main73220-50190-C1i200307-200608
BLACK,TRIM21,24
main73220-50260-A0i200408-200608
PRE-COLLISION SYSTEM,IVORY,TRIM07
main73220-50260-A1i200408-200608
PRE-COLLISION SYSTEM,ECRU,TRIM00
main73220-50260-B0i200408-200608
PRE-COLLISION SYSTEM,GRAY,TRIM1#
main73220-50260-C0i200408-200608
PRE-COLLISION SYSTEM,BLACK,TRIM21,24
main73220-50270-A0i200408-200608
PRE-COLLISION SYSTEM,IVORY,TRIM07
main73220-50270-A1i200408-200608
PRE-COLLISION SYSTEM,ECRU,TRIM00
main73220-50270-B0i200408-200608
PRE-COLLISION SYSTEM,GRAY,TRIM1#
main73220-50270-C0i200408-200608
PRE-COLLISION SYSTEM,BLACK,TRIM21,24
73223COVER, SEAT BELT RETRACTOR
main73207-50010i200008-200307
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-50010i200008-200307
main73223-50030i200307
main73223-50040i200408
PRE-COLLISION SYSTEM
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-50010i200008-200307
main73224-50020i200307
main73224-50030i200408
PRE-COLLISION SYSTEM
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-50100-A0i200008-200107
IVORY,TRIM04
main73230-50100-A1i200008-200107
ECRU,TRIM03
main73230-50100-B0i200008-200107
MD.CHARCOAL,TRIM1#
main73230-50100-C0i200008-200107
BLACK,TRIM2#
main73230-50101-A0i200107-200209
IVORY,TRIM04
main73230-50101-A1i200107-200209
ECRU,TRIM03
main73230-50101-B0i200107-200209
MD.CHARCOAL,TRIM1#
main73230-50101-C0i200107-200209
BLACK,TRIM2#
main73230-50102-A0i200209-200307
IVORY,TRIM04
main73230-50102-A1i200307-200608
ECRU,TRIM00
main73230-50102-A2i200307-200608
NEW IVORY,TRIM07
main73230-50102-B0i200209-200307
MD.CHARCOAL,TRIM1#
main73230-50102-B1i200307-200608
NEW GRAY,TRIM1#
main73230-50102-C0i200307-200608
BLACK,TRIM21,24
main73230-50110-A0i200008-200307
IVORY,TRIM04
main73230-50110-A1i200307-200608
ECRU,TRIM00
main73230-50110-A2i200307-200608
NEW IVORY,TRIM07
main73230-50110-B0i200008-200307
MD.CHARCOAL,TRIM1#
main73230-50110-B1i200307-200608
NEW GRAY,TRIM1#
main73230-50110-C0i200008-200307
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-50100-A0i200008-200107
IVORY,TRIM04
main73230-50100-A1i200008-200107
ECRU,TRIM03
main73230-50100-B0i200008-200107
MD.CHARCOAL,TRIM1#
main73230-50100-C0i200008-200107
BLACK,TRIM2#
main73230-50101-A0i200107-200209
IVORY,TRIM04
main73230-50101-A1i200107-200209
ECRU,TRIM03
main73230-50101-B0i200107-200209
MD.CHARCOAL,TRIM1#
main73230-50101-C0i200107-200209
BLACK,TRIM2#
main73230-50102-A0i200209-200307
IVORY,TRIM04
main73230-50102-A1i200307-200608
ECRU,TRIM00
main73230-50102-A2i200307-200608
NEW IVORY,TRIM07
main73230-50102-B0i200209-200307
MD.CHARCOAL,TRIM1#
main73230-50102-B1i200307-200608
NEW GRAY,TRIM1#
main73230-50102-C0i200209-200307
BLACK,TRIM2#
main73230-50110-A0i200008-200307
IVORY,TRIM04
main73230-50110-A1i200008-200307
ECRU,TRIM03
main73230-50110-A2i200307-200608
NEW IVORY,TRIM07
main73230-50110-B0i200008-200307
MD.CHARCOAL,TRIM1#
main73230-50110-B1i200307-200608
NEW GRAY,TRIM1#
main73230-50110-C0i200008-200307
BLACK,TRIM2#
85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH
main85642-50040i200307
main85642-50050i200307
85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH
main85642-50040i200008-200307
main85642-50050i200008-200307
9010511053
main90105-11053
9010511058
main90105-11058
9017911010
main90179-11010
9017911018
main90179-11018
91512G1025
main91512-G1025
9155380612
main91553-80612

16 parts on this diagram · 2 diagrams in section
