REAR DOOR LOCK & HANDLE

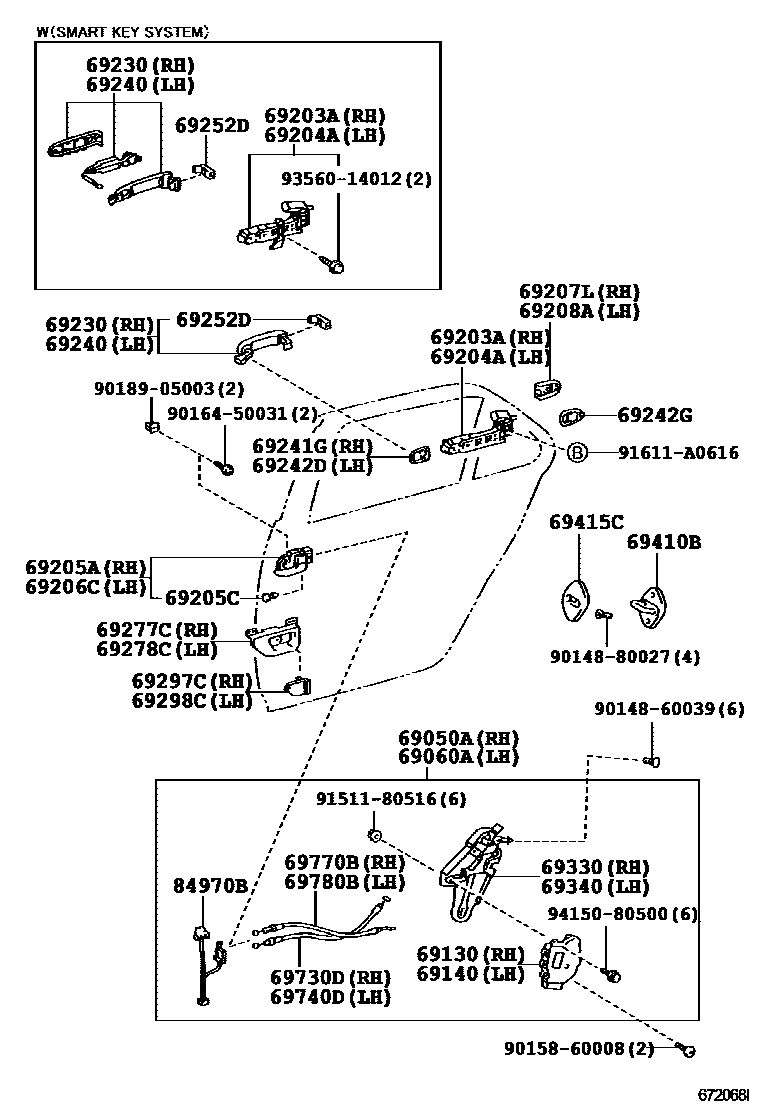

Parts diagram
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
main69050-50060i200008-200312
sub69050-50061
main69050-50061i200312
main69050-50070i200008-200312
W(DOUBLE-LOCK)
sub69050-50071
main69050-50071i200312
W(DOUBLE-LOCK)
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-50060i200008-200312
sub69060-50061
main69060-50061i200312
main69060-50070i200008-200312
W(DOUBLE-LOCK)
sub69060-50071
main69060-50071i200312
W(DOUBLE-LOCK)
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-50060i200008-200307
main69130-50070i200008-200307
W(DOUBLE-LOCK),RH
main69140-50070i200008-200307
W(DOUBLE-LOCK),LH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
main69140-50060i200008-200307
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-50010i200008-200307
main69203-50020i200008-200307
W(SMART KEY SYSTEM)
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-50010i200008-200307
main69204-50020i200008-200307
W(SMART KEY SYSTEM)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-50030-A0i200008-200307
IVORY,TRIM04
sub69205-50030
main69205-50030-A1i200008-200307
ECRU,TRIM03
sub69205-50030
main69205-50030-A1i200307-200608
ECRU,TRIM00
sub69205-50030
main69205-50030-A2i200307-200608
NEW IVORY,TRIM07
sub69205-50030
main69205-50030-B0i200008-200307
MD.CHARCOAL,TRIM1#
sub69205-50030
main69205-50030-B1i200307-200608
NEW GRAY,TRIM1#
sub69205-50030
main69205-50030-C0i200008-200307
BLACK,TRIM2#
sub69205-50030
main69205-50030-C0i200307-200608
BLACK,TRIM21,24
sub69205-50030
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04014i200008-200307
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-50030-A0i200008-200307
IVORY,TRIM04
sub69206-50030
main69206-50030-A1i200307-200608
ECRU,TRIM00
sub69206-50030
main69206-50030-A1i200008-200307
ECRU,TRIM03
sub69206-50030
main69206-50030-A2i200307-200608
NEW IVORY,TRIM07
sub69206-50030
main69206-50030-B0i200008-200307
MD.CHARCOAL,TRIM1#
sub69206-50030
main69206-50030-B1i200307-200608
NEW GRAY,TRIM1#
sub69206-50030
main69206-50030-C0i200008-200307
BLACK,TRIM2#
sub69206-50030
main69206-50030-C0i200307-200608
BLACK,TRIM21,24
sub69206-50030
69207LPLUG SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69207-50010-A0i200008-200608
WHITE PEARL CS.,062
main69207-50010-A1i200008-200307
IVORY PEARL CS.,066
main69207-50010-A2i200307-200608
SILKY WHITE PEARL CS,072
main69207-50010-B1i200008-200307
SILVER ME.,1C0
main69207-50010-B2i200307-200608
DK.GRAY MC.,1E0
main69207-50010-B3i200307-200608
PREMIUM SILVER,1F2
main69207-50010-C0i200008-200608
BLACK,202
main69207-50010-D0i200008-200608
BORDEAUX MC.,3P2
main69207-50010-D1i200008-200107
ROSE M.M.,3P4
main69207-50010-E0i200008-200608
BEIGE ME.,4P7
main69207-50010-E1i200307-200608
GRAYISH BROWN M.M.,4S1
main69207-50010-G0i200008-200307
GREEN M.M.,6S5
main69207-50010-G1i200008-200307
DARK GREEN M.M.,6S6
main69207-50010-G2i200307-200608
OLIVE M.M.,6T7
main69207-50010-J0i200008-200608
DARK BLUE MC.,8P8
main69207-50010-J1i200107-200307
LT. BLUE M.M.,8P7
69208APLUG SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69208-50010-A0i200008-200608
WHITE PEARL CS.,062
main69208-50010-A1i200008-200307
IVORY PEARL CS.,066
main69208-50010-A2i200307-200608
SILKY WHITE PEARL CS,072
main69208-50010-B1i200008-200307
SILVER ME.,1C0
main69208-50010-B2i200307-200608
DK.GRAY MC.,1E0
main69208-50010-B3i200307-200608
PREMIUM SILVER,1F2
main69208-50010-C0i200008-200608
BLACK,202
main69208-50010-D0i200008-200608
BORDEAUX MC.,3P2
main69208-50010-D1i200008-200107
ROSE M.M.,3P4
main69208-50010-E0i200008-200608
BEIGE ME.,4P7
main69208-50010-E1i200307-200608
GRAYISH BROWN M.M.,4S1
main69208-50010-G0i200008-200307
GREEN M.M.,6S5
main69208-50010-G1i200008-200307
DARK GREEN M.M.,6S6
main69208-50010-G2i200307-200608
OLIVE M.M.,6T7
main69208-50010-J0i200008-200608
DARK BLUE MC.,8P8
main69208-50010-J1i200107-200307
LT. BLUE M.M.,8P7
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-50040-A0i200008-200307
W(SMART KEY SYSTEM),WHITE PEARL CS.,062
main69210-50040-A1i200008-200307
W(SMART KEY SYSTEM),IVORY PEARL CS.,066
main69210-50040-B1i200008-200307
W(SMART KEY SYSTEM),SILVER ME.,1C0
main69210-50040-C0i200008-200307
W(SMART KEY SYSTEM),BLACK,202
main69210-50040-D0i200008-200307
W(SMART KEY SYSTEM),BORDEAUX MC.,3P2
main69210-50040-D1i200008-200107
W(SMART KEY SYSTEM),ROSE M.M.,3P4
main69210-50040-E0i200008-200307
W(SMART KEY SYSTEM),BEIGE ME.,4P7
main69210-50040-G0i200008-200307
W(SMART KEY SYSTEM),GREEN M.M.,6S5
main69210-50040-G1i200008-200307
W(SMART KEY SYSTEM),DARK GREEN MC.,6S6
main69210-50040-J0i200008-200307
W(SMART KEY SYSTEM),DARK BLUE MC.,8P8
main69210-50040-J1i200107-200307
W(SMART KEY SYSTEM),LT. BLUE M.M.,8P7
main69210-50050-A0i200008-200608
WHITE PEARL CS.,062
sub69210-50050
main69210-50050-A1i200008-200307
IVORY PEARL CS.,066
sub69210-50050
main69210-50050-A3i200307-200608
SILKY WHITE PEARL CS,072
sub69210-50050
main69210-50050-B1i200008-200307
SILVER ME.,1C0
sub69210-50050
main69210-50050-B3i200307-200608
DK.GRAY MC.,1E0
sub69210-50050
main69210-50050-B4i200307-200608
PREMIUM SILVER,1F2
sub69210-50050
main69210-50050-C0i200008-200608
BLACK,202
sub69210-50050
main69210-50050-D0i200008-200608
BORDEAUX MC.,3P2
sub69210-50050
main69210-50050-D1i200008-200107
ROSE M.M.,3P4
sub69210-50050
main69210-50050-E0i200008-200608
BEIGE ME.,4P7
sub69210-50050
main69210-50050-E2i200307-200608
GRAYISH BROWN M.M.,4S1
sub69210-50050
main69210-50050-G0i200008-200307
GREEN M.M.,6S5
sub69210-50050
main69210-50050-G1i200008-200307
DARK GREEN MC.,6S6
sub69210-50050
main69210-50050-G2i200307-200608
OLIVE M.M.,6T7
sub69210-50050
main69210-50050-J0i200008-200608
DARK BLUE MC.,8P8
sub69210-50050
main69210-50050-J2i200107-200307
LT. BLUE M.M.,8P7
sub69210-50050
main69210-50060-A0i200307-200608
W(SMART KEY SYSTEM),WHITE PEARL CS.,062
main69210-50060-A1i200307-200608
W(SMART KEY SYSTEM),SILKY WHITE PEARL CS,072
main69210-50060-B0i200307-200608
W(SMART KEY SYSTEM),DK.GRAY MC.,1E0
main69210-50060-B1i200307-200608
W(SMART KEY SYSTEM),PREMIUM SILVER,1F2
main69210-50060-C0i200307-200608
W(SMART KEY SYSTEM),BLACK,202
main69210-50060-D0i200307-200608
W(SMART KEY SYSTEM),BORDEAUX MC.,3P2
main69210-50060-E0i200307-200608
W(SMART KEY SYSTEM),BEIGE ME.,4P7
main69210-50060-E1i200307-200608
W(SMART KEY SYSTEM),GRAYISH BROWN M.M.,4S1
main69210-50060-G0i200307-200608
W(SMART KEY SYSTEM),OLIVE M.M.,6T7
main69210-50060-J0i200307-200608
W(SMART KEY SYSTEM),DARK BLUE MC.,8P8
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69210-50040-A0i200008-200307
W(SMART KEY SYSTEM),WHITE PEARL CS.,062
main69210-50040-A1i200008-200307
W(SMART KEY SYSTEM),IVORY PEARL CS.,066
main69210-50040-B1i200008-200307
W(SMART KEY SYSTEM),SILVER ME.,1C0
main69210-50040-C0i200008-200307
W(SMART KEY SYSTEM),BLACK,202
main69210-50040-D0i200008-200307
W(SMART KEY SYSTEM),BORDEAUX MC.,3P2
main69210-50040-D1i200008-200107
W(SMART KEY SYSTEM),ROSE M.M.,3P4
main69210-50040-E0i200008-200307
W(SMART KEY SYSTEM),BEIGE ME.,4P7
main69210-50040-G0i200008-200307
W(SMART KEY SYSTEM),GREEN M.M.,6S5
main69210-50040-G1i200008-200307
W(SMART KEY SYSTEM),DARK GREEN MC.,6S6
main69210-50040-J0i200008-200307
W(SMART KEY SYSTEM),DARK BLUE MC.,8P8
main69210-50040-J1i200107-200307
W(SMART KEY SYSTEM),LT. BLUE M.M.,8P7
main69210-50050-A0i200008-200608
WHITE PEARL CS.,062
sub69210-50050
main69210-50050-A1i200008-200307
IVORY PEARL CS.,066
sub69210-50050
main69210-50050-A3i200307-200608
SILKY WHITE PEARL CS,072
sub69210-50050
main69210-50050-B1i200008-200307
SILVER ME.,1C0
sub69210-50050
main69210-50050-B3i200307-200608
DK.GRAY MC.,1E0
sub69210-50050
main69210-50050-B4i200307-200608
PREMIUM SILVER,1F2
sub69210-50050
main69210-50050-C0i200008-200608
BLACK,202
sub69210-50050
main69210-50050-D0i200008-200608
BORDEAUX MC.,3P2
sub69210-50050
main69210-50050-D1i200008-200107
ROSE M.M.,3P4
sub69210-50050
main69210-50050-E0i200008-200608
BEIGE ME.,4P7
sub69210-50050
main69210-50050-E2i200307-200608
GRAYISH BROWN M.M.,4S1
sub69210-50050
main69210-50050-G0i200008-200307
GREEN M.M.,6S5
sub69210-50050
main69210-50050-G1i200008-200307
DARK GREEN MC.,6S6
sub69210-50050
main69210-50050-G2i200307-200608
OLIVE M.M.,6T7
sub69210-50050
main69210-50050-J0i200008-200608
DARK BLUE MC.,8P8
sub69210-50050
main69210-50050-J2i200107-200307
LT. BLUE M.M.,8P7
sub69210-50050
main69210-50060-A0i200307-200608
W(SMART KEY SYSTEM),WHITE PEARL CS.,062
main69210-50060-A1i200307-200608
W(SMART KEY SYSTEM),SILKY WHITE PEARL CS,072
main69210-50060-B0i200307-200608
W(SMART KEY SYSTEM),DK.GRAY MC.,1E0
main69210-50060-B1i200307-200608
W(SMART KEY SYSTEM),PREMIUM SILVER,1F2
main69210-50060-C0i200307-200608
W(SMART KEY SYSTEM),BLACK,202
main69210-50060-D0i200307-200608
W(SMART KEY SYSTEM),BORDEAUX MC.,3P2
main69210-50060-E0i200307-200608
W(SMART KEY SYSTEM),BEIGE ME.,4P7
main69210-50060-E1i200307-200608
W(SMART KEY SYSTEM),GRAYISH BROWN M.M.,4S1
main69210-50060-G0i200307-200608
W(SMART KEY SYSTEM),OLIVE M.M.,6T7
main69210-50060-J0i200307-200608
W(SMART KEY SYSTEM),DARK BLUE MC.,8P8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-50020i200008-200307
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
main69241-50020i200008-200307
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-50020i200008-200307
69252DGUIDE, DOOR OUTSIDE HANDLE
main69252-50010i200008-200205
W(SMART KEY SYSTEM)
main69252-50011i200205-200307
W(SMART KEY SYSTEM)
main69252-50011i200307-200608
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
main69287-50010-A0i200008-200307
IVORY,TRIM04
main69287-50010-A1i200008-200307
ECRU,TRIM03
main69287-50010-A1i200307-200608
ECRU,TRIM00
main69287-50010-A2i200307-200608
NEW IVORY,TRIM07
main69287-50010-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69287-50010-B1i200307-200608
NEW GRAY,TRIM1#
main69287-50010-C0i200307-200608
BLACK,TRIM21,24
main69287-50010-C0i200008-200307
BLACK,TRIM2#
main69287-50020-A0i200008-200307
W(REAR AIR CONDITIONER),IVORY,TRIM04
main69287-50020-A1i200008-200307
W(REAR AIR CONDITIONER),ECRU,TRIM03
main69287-50020-A1i200307-200608
W(REAR AIR CONDITIONER),ECRU,TRIM00
main69287-50020-A2i200307-200608
W(REAR AIR CONDITIONER),NEW IVORY,TRIM07
main69287-50020-B0i200008-200307
W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#
main69287-50020-B1i200307-200608
W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#
main69287-50020-C0i200008-200307
W(REAR AIR CONDITIONER),BLACK,TRIM2#
main69287-50020-C0i200307-200608
W(REAR AIR CONDITIONER),BLACK,TRIM21,24
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
main69288-50010-A0i200008-200307
IVORY,TRIM04
main69288-50010-A1i200008-200307
ECRU,TRIM03
main69288-50010-A1i200307-200608
ECRU,TRIM00
main69288-50010-A2i200307-200608
NEW IVORY,TRIM07
main69288-50010-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69288-50010-B1i200307-200608
NEW GRAY,TRIM1#
main69288-50010-C0i200307-200608
BLACK,TRIM21,24
main69288-50010-C0i200008-200307
BLACK,TRIM2#
main69288-50020-A0i200008-200307
W(REAR AIR CONDITIONER),IVORY,TRIM04
main69288-50020-A1i200008-200307
W(REAR AIR CONDITIONER),ECRU,TRIM03
main69288-50020-A1i200307-200608
W(REAR AIR CONDITIONER),ECRU,TRIM00
main69288-50020-A2i200307-200608
W(REAR AIR CONDITIONER),NEW IVORY,TRIM07
main69288-50020-B0i200008-200307
W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#
main69288-50020-B1i200307-200608
W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#
main69288-50020-C0i200307-200608
W(REAR AIR CONDITIONER),BLACK,TRIM21,24
main69288-50020-C0i200008-200307
W(REAR AIR CONDITIONER),BLACK,TRIM2#
69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH
main69297-50020-A0i200008-200307
IVORY,TRIM04
main69297-50020-A1i200307-200608
ECRU,TRIM00
main69297-50020-A1i200008-200307
ECRU,TRIM03
main69297-50020-A2i200307-200608
NEW IVORY,TRIM07
main69297-50020-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69297-50020-B1i200307-200608
NEW GRAY,TRIM1#
main69297-50020-C0i200307-200608
BLACK,TRIM21,24
main69297-50020-C0i200008-200307
BLACK,TRIM2#
69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH
main69298-50020-A0i200008-200307
IVORY,TRIM04
main69298-50020-A1i200008-200307
ECRU,TRIM03
main69298-50020-A1i200307-200608
ECRU,TRIM00
main69298-50020-A2i200307-200608
NEW IVORY,TRIM07
main69298-50020-B0i200008-200307
MD.CHARCOAL,TRIM1#
main69298-50020-B1i200307-200608
NEW GRAY,TRIM1#
main69298-50020-C0i200008-200307
BLACK,TRIM2#
main69298-50020-C0i200307-200608
BLACK,TRIM21,24
69330LOCK ASSY, REAR DOOR, RH
main69330-50050i200008-200312
sub69330-50051
main69330-50051i200312
main69330-50060i200008-200312
W(DOUBLE-LOCK)
sub69330-50061
main69330-50061i200312
W(DOUBLE-LOCK)
69340LOCK ASSY, REAR DOOR, LH
main69340-50050i200008-200312
sub69340-50051
main69340-50051i200312
main69340-50060i200008-200312
W(DOUBLE-LOCK)
sub69340-50061
main69340-50061i200312
W(DOUBLE-LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33020i200311
main69410-51010i200008-200311
69415CCOVER, DOOR LOCK STRIKER, REAR
main69415-30020i200008-200311
main69415-33010i200311
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-50020i200008-200307
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-50020i200008-200307
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-50040i200008-200307
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-50040i200008-200307
84970BSWITCH ASSY, COMBINATION
main84970-50010i200008-200307
RH
main84970-50060i200008-200307
LH
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9016450031
main90164-50031
9018905003
main90189-05003
9151180516
main91511-80516
91611A0616
main91611-A0616
9356014012
main93560-14012
9415080500
main94150-80500

39 parts on this diagram · 1 diagram in section

REAR DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
