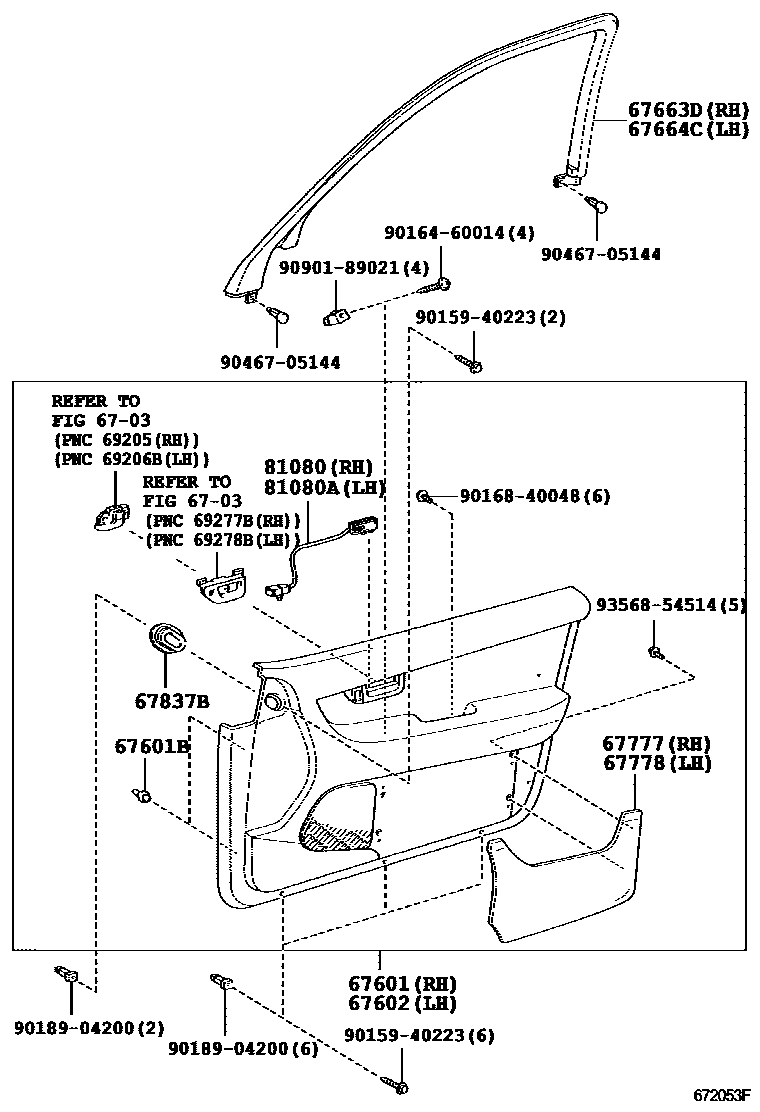

FRONT DOOR PANEL & GLASS
6703
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
TRIM = TYPE A-*104,GRAY,TRIM1#
TRIM = TYPE B-*104 & HONG KONG, SOUTH AFRICA, THAILAND OR SINGAPOLE SPEC,ECRU,TRIM03
sub67610-50340
TRIM = TYPE B-*104 & HONG KONG, SOUTH AFRICA, THAILAND OR SINGAPOLE SPEC,IVORY,TRIM04
sub67610-50340
TRIM = TYPE B-*104 & HONG KONG, SOUTH AFRICA, THAILAND OR SINGAPOLE SPEC,BLACK,TRIM2#
sub67610-50340
TRIM = TYPE A-*104,ECRU,TRIM00
TRIM = TYPE A-*104,IVORY,TRIM07
TRIM = TYPE A-*104,BLACK,TRIM2#
TRIM = TYPE A-*104 & W(REAR MEMORY POWER SEAT),BLACK,TRIM2#
TRIM = TYPE B-*104,BLACK,TRIM2#
TRIM = TYPE B-*104 & SOUTH AMERICA, KOREA, TAIWAN, CHINA OR ISRAEL SPEC,ECRU,TRIM03
TRIM = TYPE B-*104,ECRU,TRIM03
TRIM = TYPE B-*104 & SOUTH AMERICA, KOREA, TAIWAN, CHINA OR ISRAEL SPEC,IVORY,TRIM04
TRIM = TYPE B-*104,IVORY,TRIM04
TRIM = TYPE B-*104,MD CHARCOAL,TRIM1#
TRIM = TYPE B-*104 & SOUTH AMERICA, KOREA, TAIWAN, CHINA OR ISRAEL SPEC,MD CHARCOAL,TRIM1#
TRIM = TYPE B-*104 & SOUTH AMERICA, KOREA, TAIWAN, CHINA OR ISRAEL SPEC,BLACK,TRIM2#
TRIM = TYPE B-*104,BLACK,TRIM2#
TRIM = TYPE A-*104,ECRU,TRIM00
TRIM = TYPE A-*104,IVORY,TRIM07
TRIM = TYPE A-*104,GRAY,TRIM1#
TRIM = TYPE A-*104,BLACK,TRIM2#
TRIM = TYPE A-*104,BLACK,TRIM2#
TRIM = TYPE B-*104,BLACK,TRIM2#
TRIM = TYPE B-*104 & WOOD GRAIN(SUNBURST),BLACK,BLACK,TRIM2#
sub67610-50461
TRIM = TYPE B-*104,BLACK,BLACK,TRIM2#
TRIM = TYPE B-*104 & WOOD GRAIN(SUNBURST),BLACK,BLACK,TRIM2#
sub67610-50471
TRIM = TYPE B-*104,BLACK,BLACK,TRIM2#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
TRIM = TYPE A-*104,GRAY,TRIM1#
TRIM = TYPE B-*104,ECRU,TRIM03
TRIM = TYPE B-*104 & HONG KONG, SOUTH AFRICA, THAILAND OR SINGAPOLE SPEC,ECRU,TRIM03
TRIM = TYPE B-*104,IVORY,TRIM04
TRIM = TYPE B-*104 & HONG KONG, SOUTH AFRICA, THAILAND OR SINGAPOLE SPEC,IVORY,TRIM04
TRIM = TYPE B-*104,BLACK,TRIM2#
TRIM = TYPE B-*104 & HONG KONG, SOUTH AFRICA, THAILAND OR SINGAPOLE SPEC,BLACK,TRIM2#
TRIM = TYPE A-*104,ECRU,TRIM00
TRIM = TYPE A-*104,IVORY,TRIM07
TRIM = TYPE A-*104,BLACK,TRIM2#
TRIM = TYPE A-*104 & W(REAR MEMORY POWER SEAT),BLACK,TRIM2#
TRIM = TYPE B-*104,BLACK,TRIM2#
TRIM = TYPE B-*104,ECRU,TRIM03
TRIM = TYPE B-*104 & SOUTH AMERICA, KOREA, TAIWAN, CHINA OR ISRAEL SPEC,ECRU,TRIM03
TRIM = TYPE B-*104 & SOUTH AMERICA, KOREA, TAIWAN, CHINA OR ISRAEL SPEC,IVORY,TRIM04
TRIM = TYPE B-*104,IVORY,TRIM04
TRIM = TYPE B-*104 & SOUTH AMERICA, KOREA, TAIWAN, CHINA OR ISRAEL SPEC,MD CHARCOAL,TRIM1#
TRIM = TYPE B-*104,MD CHARCOAL,TRIM1#
TRIM = TYPE B-*104,BLACK,TRIM2#
TRIM = TYPE B-*104 & SOUTH AMERICA, KOREA, TAIWAN, CHINA OR ISRAEL SPEC,BLACK,TRIM2#
TRIM = TYPE A-*104,ECRU,TRIM00
TRIM = TYPE A-*104,IVORY,TRIM07
TRIM = TYPE A-*104,GRAY,TRIM1#
TRIM = TYPE A-*104,BLACK,TRIM2#
TRIM = TYPE A-*104,BLACK,TRIM2#
TRIM = TYPE B-*104,BLACK,TRIM2#
TRIM = TYPE B-*104 & WOOD GRAIN(SUNBURST),BLACK,BLACK,TRIM2#
sub67620-50451
TRIM = TYPE B-*104,BLACK,BLACK,TRIM2#
TRIM = TYPE B-*104 & WOOD GRAIN(SUNBURST),BLACK,BLACK,TRIM2#
sub67620-50461
TRIM = TYPE B-*104,BLACK,BLACK,TRIM2#
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67777POCKET, FRONT DOOR TRIM, RH
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM21,24
67778POCKET, FRONT DOOR TRIM, LH
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM21,24
BLACK,TRIM2#
67837BSEAL, FRONT DOOR DUST PROOF
DARK CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM21,24
CLOVE BROWN,TRIM00
CLOVE BROWN,TRIM03
SANDAL WOOD,TRIM07
SANDAL WOOD,TRIM04
81080LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080ALAMP ASSY, INTERIOR ILLUMINATION, NO.1
9015940223
main90159-40223
9016460014
main90164-60014
9016840048
main90168-40048
9018904200
main90189-04200
9046705144
main90467-05144
9090189021
main90901-89021
9356854514
main93568-54514
18 parts on this diagram · 6 diagrams in section
