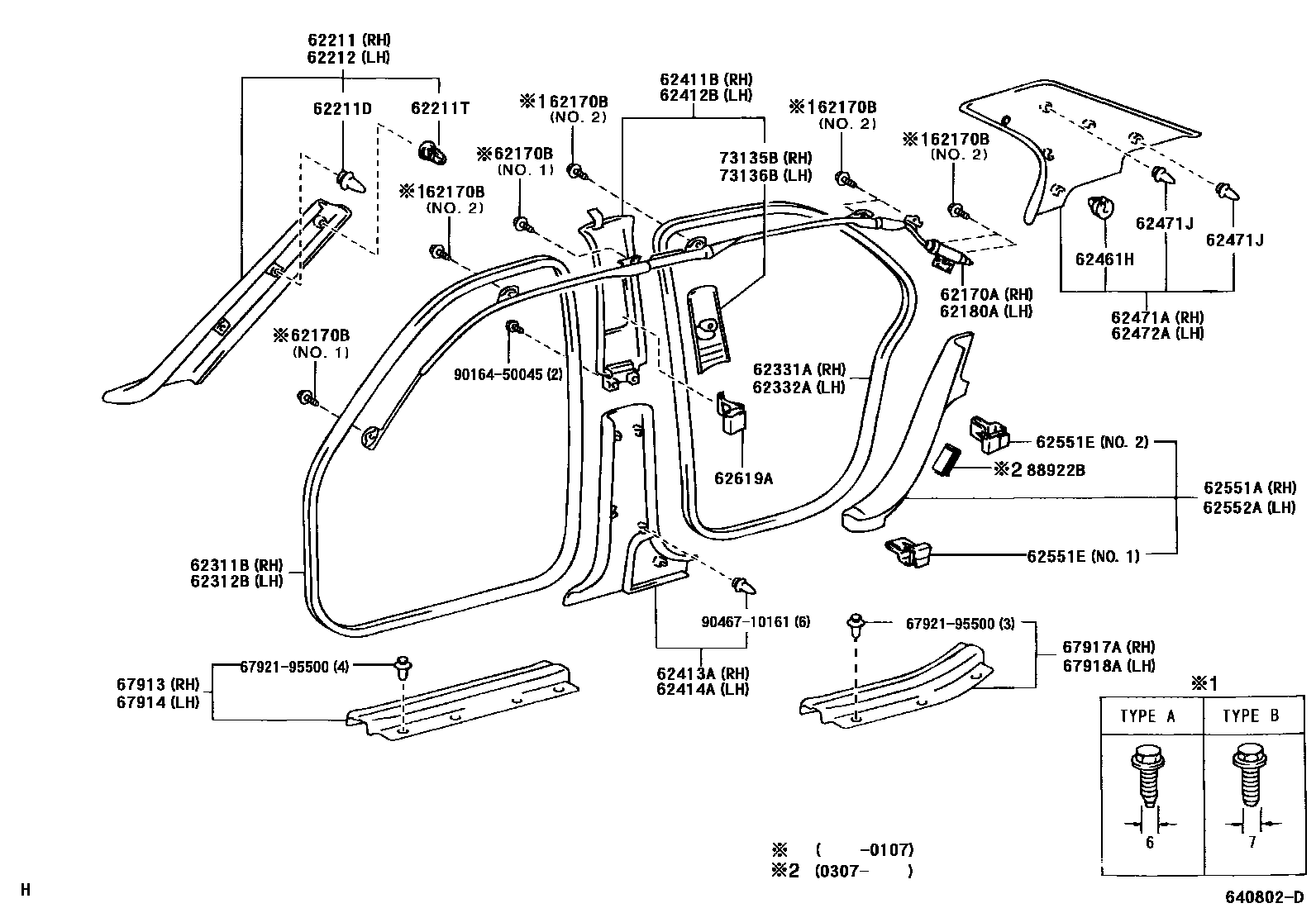

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-50010iUCF30200008-200107

main62170-50011iUCF30200107-200307

62170BBOLT, W/WASHER

main90119-06575×4iUCF30200008-200107

NO.1

main90119-06869×12iUCF30200307

TYPE A:REFER TO ILLUSTRATION,NO.2

main90159-70003iUCF30200307

TYPE B:REFER TO ILLUSTRATION,NO.2

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-50010iUCF30200008-200107

main62180-50011iUCF30200107-200307

62211GARNISH, FRONT PILLAR, RH

main62211-50010-A0iUCF30200008-200208

IVORY,TRIM04

main62211-50010-A1iUCF30200008-200208

ECRU,TRIM03

main62211-50010-B0iUCF30200008-200208

MEDIUM CHARCOAL,TRIM1#,20

main62211-50011-A0iUCF30200208-200307

IVORY,TRIM04

main62211-50011-A1iUCF30200307-200608

ECRU,TRIM00

main62211-50011-A2iUCF30200307-200608

NEW IVORY,TRIM01,07

main62211-50011-B0iUCF30200208-200307

MEDIUM CHARCOAL,TRIM1#,20

main62211-50011-B1iUCF30200307-200608

NEW GRAY,TRIM1#,20,21,24

main62211-50020-A0iUCF30..EUR200008-200208

ECRU,TRIM05

main62211-50020-B0iUCF30..EUR200008-200208

CHARCOAL,TRIM27,28,29

main62211-50021-A0iUCF30..EUR200208-200307

ECRU,TRIM05

main62211-50021-B0iUCF30..EUR200208-200307

CHARCOAL,TRIM27,28,29

main62211-50021-B1iUCF30..EUR200307-200608

NEW GRAY,TRIM2#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×4iUCF30200307-200608

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90950-08001×2iUCF30200008-200307

62212GARNISH, FRONT PILLAR, LH

main62212-50010-A0iUCF30200008-200208

IVORY,TRIM04

main62212-50010-A1iUCF30200008-200208

ECRU,TRIM03

main62212-50010-B0iUCF30200008-200208

MEDIUM CHARCOAL,TRIM1#,20

main62212-50011-A0iUCF30200208-200307

IVORY,TRIM04

main62212-50011-A1iUCF30200307-200608

ECRU,TRIM00

main62212-50011-A2iUCF30200307-200608

NEW IVORY,TRIM01,07

main62212-50011-B0iUCF30200208-200307

MEDIUM CHARCOAL,TRIM1#,20

main62212-50011-B1iUCF30200307-200608

NEW GRAY,TRIM1#,20,21,24

main62212-50020-A0iUCF30..EUR200008-200208

ECRU,TRIM05

main62212-50020-B0iUCF30..EUR200008-200208

CHARCOAL,TRIM27,28,29

main62212-50021-A0iUCF30..EUR200208-200307

ECRU,TRIM05

main62212-50021-B0iUCF30..EUR200208-200307

CHARCOAL,TRIM27,28,29

main62212-50021-B1iUCF30..EUR200307-200608

NEW GRAY,TRIM2#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-50030-B0iUCF30200008-200307

DARKCHARCOAL,TRIM1#

main62311-50030-C0iUCF30200008-200307

BLACK,TRIM2#

main62311-50030-E0iUCF30200008-200307

CLOVEBROWN,TRIM03

main62311-50030-E1iUCF30200008-200307

SANDALWOOD,TRIM04

main62311-50031-B1iUCF30200307-200608

MD.GRAY,TRIM1#

main62311-50031-C0iUCF30200307-200608

BLACK,TRIM21,24

main62311-50031-E0iUCF30200307-200608

CLOVEBROWN,TRIM00

main62311-50031-E1iUCF30200307-200608

SANDALWOOD,TRIM07

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-50030-B0iUCF30200008-200307

DARKCHARCOAL,TRIM1#

main62312-50030-C0iUCF30200008-200307

BLACK,TRIM2#

main62312-50030-E0iUCF30200008-200307

CLOVEBROWN,TRIM03

main62312-50030-E1iUCF30200008-200307

SANDALWOOD,TRIM04

main62312-50031-B1iUCF30200307-200608

MD.GRAY,TRIM1#

main62312-50031-C0iUCF30200307-200608

BLACK,TRIM21,24

main62312-50031-E0iUCF30200307-200608

CLOVEBROWN,TRIM00

main62312-50031-E1iUCF30200307-200608

SANDALWOOD,TRIM07

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-50030-B0iUCF30200008-200307

DARKCHARCOAL,TRIM1#

main62331-50030-C0iUCF30200008-200307

BLACK,TRIM2#

main62331-50030-E0iUCF30200008-200307

CLOVEBROWN,TRIM03

main62331-50030-E1iUCF30200008-200307

SANDALWOOD,TRIM04

main62331-50031-B1iUCF30200307-200608

MD.GRAY,TRIM1#

main62331-50031-C0iUCF30200307-200608

BLACK,TRIM21,24

main62331-50031-E0iUCF30200307-200608

CLOVEBROWN,TRIM00

main62331-50031-E1iUCF30200307-200608

SANDALWOOD,TRIM07

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-50030-B0iUCF30200008-200307

DARKCHARCOAL,TRIM1#

main62332-50030-C0iUCF30200008-200307

BLACK,TRIM2#

main62332-50030-E0iUCF30200008-200307

CLOVEBROWN,TRIM03

main62332-50030-E1iUCF30200008-200307

SANDALWOOD,TRIM04

main62332-50031-B1iUCF30200307-200608

MD.GRAY,TRIM1#

main62332-50031-C0iUCF30200307-200608

BLACK,TRIM21,24

main62332-50031-E0iUCF30200307-200608

CLOVEBROWN,TRIM00

main62332-50031-E1iUCF30200307-200608

SANDALWOOD,TRIM07

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-50030-A0iUCF30200008-200107

IVORY,TRIM04

main62411-50030-A1iUCF30200008-200107

ECRU,TRIM03

main62411-50030-B0iUCF30200008-200107

MEDIUM CHARCOAL,TRIM1#,2#

main62411-50031-A0iUCF30200107-200208

IVORY,TRIM04

main62411-50031-A1iUCF30200107-200208

ECRU,TRIM03

main62411-50031-B0iUCF30200107-200208

MEDIUM CHARCOAL,TRIM1#,2#

main62411-50040-A0iUCF30..EUR200008-200107

ECRU,TRIM05

main62411-50040-B0iUCF30..EUR200008-200107

CHARCOAL,TRIM2#

main62411-50041-A0iUCF30..EUR200107-200208

ECRU,TRIM05

main62411-50041-B0iUCF30..EUR200107-200208

CHARCOAL,TRIM2#

main62411-50060-A0iUCF30200208-200307

IVORY,TRIM04

main62411-50060-A1iUCF30200208-200307

ECRU,TRIM03

main62411-50060-A2iUCF30200307-200608

PILLAR GARNISH = TYPE A-*104,NEW IVORY,TRIM01,07

main62411-50060-B0iUCF30200208-200307

MEDIUM CHARCOAL,TRIM1#,2#

main62411-50060-B1iUCF30200307-200608

PILLAR GARNISH = TYPE A-*104,NEW GRAY,TRIM1#,20,21,24

main62411-50070-A0iUCF30..EUR200208-200307

ECRU,TRIM05

main62411-50070-B0iUCF30..EUR200208-200307

CHARCOAL,TRIM2#

main62411-50070-B1iUCF30..EUR200307-200608

PILLAR GARNISH = TYPE B-*104,NEW GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-50030-A0iUCF30200008-200107

IVORY,TRIM04

main62412-50030-A1iUCF30200008-200107

ECRU,TRIM03

main62412-50030-B0iUCF30200008-200107

MEDIUM CHARCOAL,TRIM1#,2#

main62412-50031-A0iUCF30200107-200208

IVORY,TRIM04

main62412-50031-A1iUCF30200107-200208

ECRU,TRIM03

main62412-50031-B0iUCF30200107-200208

MEDIUM CHARCOAL,TRIM1#,2#

main62412-50040-A0iUCF30..EUR200008-200107

ECRU,TRIM05

main62412-50040-B0iUCF30..EUR200008-200107

CHARCOAL,TRIM2#

main62412-50041-A0iUCF30..EUR200107-200208

ECRU,TRIM05

main62412-50041-B0iUCF30..EUR200107-200208

CHARCOAL,TRIM2#

main62412-50060-A0iUCF30200208-200307

IVORY,TRIM04

main62412-50060-A1iUCF30200307-200608

PILLAR GARNISH = TYPE A-*104,ECRU,TRIM00

main62412-50060-A2iUCF30200307-200608

PILLAR GARNISH = TYPE A-*104,NEW IVORY,TRIM01,07

main62412-50060-B0iUCF30200208-200307

MEDIUM CHARCOAL,TRIM1#,2#

main62412-50060-B1iUCF30200307-200608

PILLAR GARNISH = TYPE A-*104,NEW GRAY,TRIM1#,20,21,24

main62412-50070-A0iUCF30..EUR200208-200307

ECRU,TRIM05

main62412-50070-B0iUCF30..EUR200208-200307

CHARCOAL,TRIM2#

main62412-50070-B1iUCF30..EUR200307-200608

PILLAR GARNISH = TYPE B-*104,NEW GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-50050-A0iUCF30200008-200208

IVORY,TRIM04

main62413-50050-A1iUCF30200008-200208

ECRU,TRIM03

main62413-50050-B0iUCF30200008-200208

MD.CHARCOAL,TRIM1#

main62413-50050-C0iUCF30200008-200208

BLACK,TRIM2#

main62413-50070-A0iUCF30200208-200301

IVORY,TRIM04

main62413-50070-A1iUCF30200208-200301

ECRU,TRIM03

main62413-50070-B0iUCF30200208-200301

MD.CHARCOAL,TRIM1#

main62413-50070-C0iUCF30200208-200301

BLACK,TRIM2#

main62413-50071-A0iUCF30200301-200307

IVORY,TRIM04

main62413-50071-A1iUCF30200307-200608

ECRU,TRIM00

main62413-50071-A2iUCF30200307-200608

NEW IVORY,TRIM01,07

main62413-50071-B0iUCF30200301-200307

MD.CHARCOAL,TRIM1#

main62413-50071-B1iUCF30200307-200608

NEW GRAY,TRIM1#

main62413-50071-C0iUCF30200307-200608

BLACK,TRIM20,21,24

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-50050-A0iUCF30200008-200208

IVORY,TRIM04

main62414-50050-A1iUCF30200008-200208

ECRU,TRIM03

main62414-50050-B0iUCF30200008-200208

MD.CHARCOAL,TRIM1#

main62414-50050-C0iUCF30200008-200208

BLACK,TRIM2#

main62414-50070-A0iUCF30200208-200301

IVORY,TRIM04

main62414-50070-A1iUCF30200208-200301

ECRU,TRIM03

main62414-50070-B0iUCF30200208-200301

MD.CHARCOAL,TRIM1#

main62414-50070-C0iUCF30200208-200301

BLACK,TRIM2#

main62414-50071-A0iUCF30200301-200307

IVORY,TRIM04

main62414-50071-A1iUCF30200301-200307

ECRU,TRIM03

main62414-50071-B0iUCF30200301-200307

MD.CHARCOAL,TRIM1#

main62414-50071-C0iUCF30200301-200307

BLACK,TRIM2#

main62414-50072-A1iUCF30200307-200608

ECRU,TRIM00

main62414-50072-A2iUCF30200307-200608

NEW IVORY,TRIM07

main62414-50072-B1iUCF30200307-200608

NEW GRAY,TRIM1#

main62414-50072-C0iUCF30200307-200608

BLACK,TRIM21,24

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90950-08002×2iUCF30200307

62471AGARNISH, ROOF SIDE, INNER RH

main62471-50010-A0iUCF30200008-200307

IVORY,TRIM04

main62471-50010-A1iUCF30200307-200608

ECRU,TRIM00

main62471-50010-A2iUCF30200307-200608

NEW IVORY,TRIM01,07

main62471-50010-B1iUCF30200008-200307

MEDIUM CHARCOAL,TRIM1#,2#

main62471-50010-B2iUCF30200307-200608

NEW GRAY,TRIM1#,20,21,24

main62471-50020-A0iUCF30..EUR200008-200307

ECRU,TRIM05

main62471-50020-B0iUCF30..EUR200008-200307

CHARCOAL,TRIM2#

main62471-50020-B1iUCF30..EUR200307-200608

NEW GRAY,TRIM2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×8iUCF30200008-200307

main90467-10167×2iUCF30200008-200307

BLUE

62472AGARNISH, ROOF SIDE, INNER LH

main62472-50010-A0iUCF30200008-200307

IVORY,TRIM04

main62472-50010-A1iUCF30200307-200608

ECRU,TRIM00

main62472-50010-A2iUCF30200307-200608

NEW IVORY,TRIM01,07

main62472-50010-B0iUCF30200008-200307

MEDIUM CHARCOAL,TRIM1#,2#

main62472-50010-B1iUCF30200307-200608

NEW GRAY,TRIM1#,20,21,24

main62472-50020-A0iUCF30..EUR200008-200307

ECRU,TRIM05

main62472-50020-B0iUCF30..EUR200008-200307

CHARCOAL,TRIM2#

main62472-50020-B1iUCF30..EUR200307-200608

NEW GRAY,TRIM2#

62551ACOVER, REAR SEAT SIDE, RH

main62551-50060-A0iUCF30200008-200307

IVORY,TRIM04

main62551-50060-A1iUCF30200008-200307

ECRU,TRIM03

main62551-50060-A2iUCF30200307-200608

NEW IVORY,TRIM07

main62551-50060-B0iUCF30200008-200307

MD.CHARCOAL,TRIM1#

main62551-50060-B1iUCF30200307-200608

NEW GRAY,TRIM1#

main62551-50060-C0iUCF30200307-200608

BLACK,TRIM21,24

main62551-50070-A0iUCF30200307-200608

W(REAR AIR CONDITIONER),ECRU,TRIM00

main62551-50070-A1iUCF30200307-200608

W(REAR AIR CONDITIONER),NEW IVORY,TRIM07

main62551-50070-B0iUCF30200307-200608

W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#

main62551-50070-C0iUCF30200307-200608

W(REAR AIR CONDITIONER),BLACK,TRIM21,24

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main67923-50020×2iUCF30200307

NO.1

main67924-30050×4iUCF30200307

NO.2

62552ACOVER, REAR SEAT SIDE, LH

main62552-50040-A0iUCF30200008-200307

IVORY,TRIM04

main62552-50040-A1iUCF30200008-200307

ECRU,TRIM03

main62552-50040-A2iUCF30200307-200309

NEW IVORY,TRIM07

main62552-50040-B0iUCF30200008-200307

MD.CHARCOAL,TRIM1#

main62552-50040-B1iUCF30200307-200309

NEW GRAY,TRIM1#

main62552-50040-C0iUCF30200307-200309

BLACK,TRIM21,24

main62552-50041-A1iUCF30200309-200608

ECRU,TRIM00

main62552-50041-A2iUCF30200309-200608

NEW IVORY,TRIM07

main62552-50041-B1iUCF30200309-200608

NEW GRAY,TRIM1#

main62552-50041-C0iUCF30200309-200608

BLACK,TRIM21,24

main62552-50050-A0iUCF30200307-200608

W(REAR AIR CONDITIONER),ECRU,TRIM00

main62552-50050-A1iUCF30200307-200608

W(REAR AIR CONDITIONER),NEW IVORY,TRIM07

main62552-50050-B0iUCF30200307-200608

W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#

main62552-50050-C0iUCF30200307-200608

W(REAR AIR CONDITIONER),BLACK,TRIM21,24

62619APLATE, SIDE TRIM SET

main62619-30020×4iUCF30200008-200009

main62619-30030×4iUCF30200503

main62619-50020×4iUCF30200009-200307

67913PLATE, FRONT DOOR SCUFF, RH

main67913-50070-B0iUCF30200008-200307

DK.CHARCOAL,TRIM1#

main67913-50070-B1iUCF30200307-200608

MD.GRAY,TRIM1#

main67913-50070-C0iUCF30200307-200608

BLACK,TRIM21,24

main67913-50070-E0iUCF30200008-200307

SANDAL WOOD,TRIM04

main67913-50070-E1iUCF30200008-200307

CLOVEBROWN,TRIM03

67914PLATE, FRONT DOOR SCUFF, LH

main67914-50070-B0iUCF30200008-200307

DK.CHARCOAL,TRIM1#

main67914-50070-B1iUCF30200307-200608

MD.GRAY,TRIM1#

main67914-50070-C0iUCF30200307-200608

BLACK,TRIM21,24

main67914-50070-E0iUCF30200008-200307

SANDAL WOOD,TRIM04

main67914-50070-E1iUCF30200008-200307

CLOVEBROWN,TRIM03

67917APLATE, REAR DOOR SCUFF, RH

main67917-50070-B0iUCF30200008-200307

DK.CHARCOAL,TRIM1#

main67917-50070-B1iUCF30200307-200608

MD.GRAY,TRIM1#

main67917-50070-C0iUCF30200307-200608

BLACK,TRIM21,24

main67917-50070-E0iUCF30200008-200307

SANDAL WOOD,TRIM04

main67917-50070-E1iUCF30200008-200307

CLOVEBROWN,TRIM03

67918APLATE, REAR DOOR SCUFF, LH

main67918-50070-B0iUCF30200008-200307

DK.CHARCOAL,TRIM1#

main67918-50070-B1iUCF30200307-200608

MD.GRAY,TRIM1#

main67918-50070-C0iUCF30200307-200608

BLACK,TRIM21,24

main67918-50070-E0iUCF30200307-200608

SANDAL WOOD,TRIM07

main67918-50070-E1iUCF30200008-200307

CLOVEBROWN,TRIM03

73135BCOVER, SHOULDER BELT ANCHOR, RH

main73135-50060-A0iUCF30200008-200107

IVORY,TRIM04

main73135-50060-A1iUCF30200008-200107

ECRU,TRIM03

main73135-50060-B0iUCF30200008-200107

MD.CHARCOAL,TRIM1#,2#

main73135-50061-A0iUCF30200107-200307

IVORY,TRIM04

main73135-50061-A1iUCF30200307-200608

ECRU,TRIM00

main73135-50061-A2iUCF30200307-200608

NEW IVORY,TRIM07

main73135-50061-B0iUCF30200107-200307

MD.CHARCOAL,TRIM1#,2#

main73135-50061-B1iUCF30200307-200608

NEW GRAY,TRIM1#,21,24

73136BCOVER, SHOULDER BELT ANCHOR, RH

main73136-50060-A0iUCF30200008-200107

IVORY,TRIM04

main73136-50060-A1iUCF30200008-200107

ECRU,TRIM03

main73136-50060-B0iUCF30200008-200107

MD.CHARCOAL,TRIM1#,2#

main73136-50061-A0iUCF30200107-200307

IVORY,TRIM04

main73136-50061-A1iUCF30200107-200307

ECRU,TRIM03

main73136-50061-A2iUCF30200307-200608

NEW IVORY,TRIM07

main73136-50061-B0iUCF30200107-200307

MD.CHARCOAL,TRIM1#,2#

main73136-50061-B1iUCF30200307-200608

NEW GRAY,TRIM1#,21,24

88922BFILTER AIR

main88922-50010×2iUCF30200307-200608

6792195500RETAINER, FRONT DOOR SCUFF PLATE

main67921-95500

9016450045

main90164-50045

9046710161

main90467-10161

33 parts on this diagram · 1 diagram in section
