431230
›

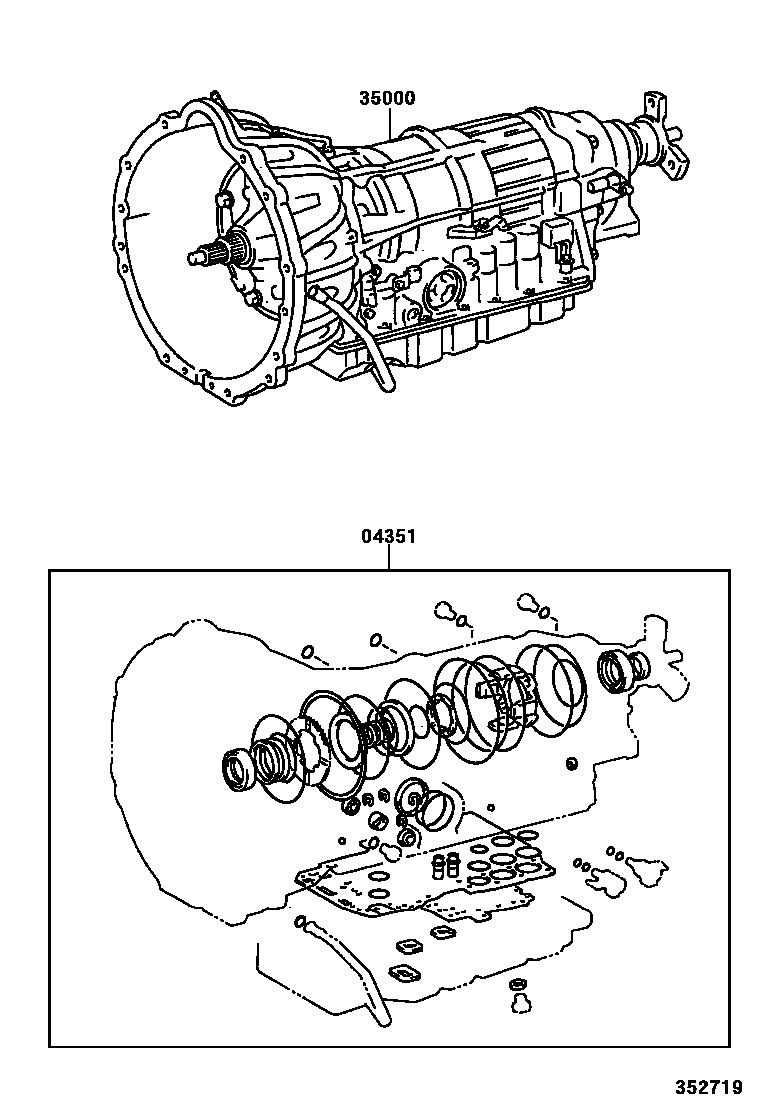

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)
TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)
0001 1A650E
0002 1A761E
04351
GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
main
04351-30490
i
UCF30
200008-200210
main
04351-30491
i
UCF30
200210-200307
main
04351-30590
i
UCF30
200307
35000
TRANSMISSION ASSY, AUTOMATIC
main
35000-50130
i
UCF30..ARL
200008-200307
A650E
main
35000-50140
i
UCF30..EUR,GCC
200008-200307
A650E
main
35000-50150
i
UCF30
200307
A761E
2 parts on this diagram · 2 diagrams in section
