OIL FILTER

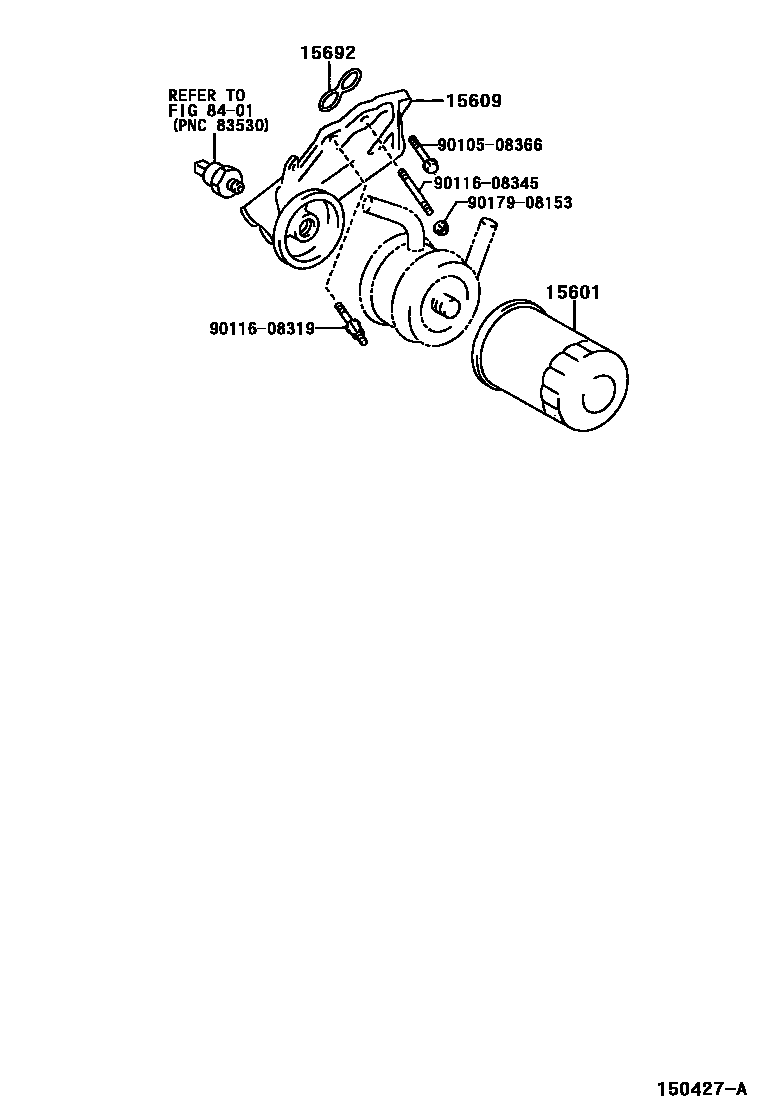

Parts diagram

15601FILTER SUB-ASSY, OIL

main90915-20004i200307

15609BRACKET SUB-ASSY, OIL FILTER

main15609-50070i200012-200307

CHINA OR SOUTH AMERICA OR ISRAEL OR FORMOSA OR KOREA SPEC; HONG KONG OR SINGAPORE OR THAILAND SPEC

main15609-50120i200008-200307

15692GASKET, OIL FILTER BRACKET

main15692-50020i200307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508366

main90105-08366

9011608319

main90116-08319

9011608345

main90116-08345

9017908153

main90179-08153

8 parts on this diagram · 1 diagram in section
