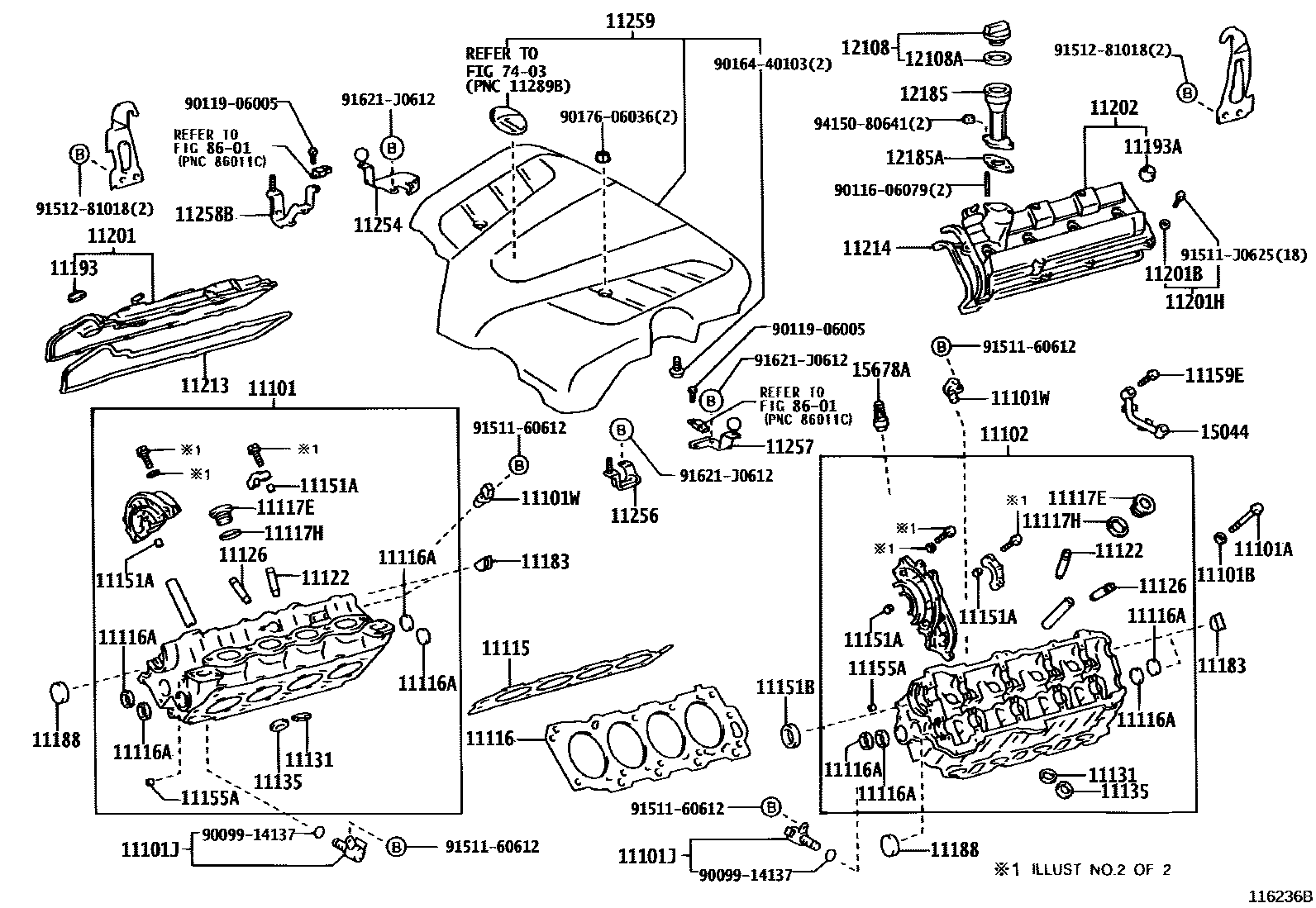

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
sub90910-02177
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
RH
LH
11101WSENSOR, CRANK POSITION, NO.1
11102HEAD, CYLINDER, LH
sub11102-59066
REFER13-02:PNC 13715
11115GASKET, CYLINDER HEAD
11116GASKET, CYLINDER HEAD, NO.2
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,REFER13-02:PNC 13715
STD
STD,REFER13-02:PNC 13715
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=7,OD=10
11155APIN, RING W/HEAD
11159EBOLT(FOR CAMSHAFT OIL FEED PIPE)
11183PLUG, SEMICIRCULAR
11188PLUG, CAMSHAFT HOUSING
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11254BRACKET, V-BANK COVER, NO.1
11256BRACKET, V-BANK COVER, NO.2
11257BRACKET, V-BANK COVER, NO.3
11258BBRACKET, V-BANK COVER, NO.4
11259COVER, V-BANK
12108CAP SUB-ASSY, OIL FILLER
CHINA OR SOUTH AMERICA OR ISRAEL OR FORMOSA OR KOREA SPEC
sub12180-50031
CHINA OR SOUTH AMERICA OR ISRAEL OR FORMOSA OR KOREA SPEC
CHINA OR SOUTH AMERICA OR ISRAEL OR FORMOSA SPEC
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
15044PIPE SUB-ASSY, CAMSHAFT OIL FEED
15678AFILTER, OIL CONTROL VALVE
7403
8601
9009914137
main90099-14137
9011606079
main90116-06079
9011906005
main90119-06005
9016440103
main90164-40103
9017606036
main90176-06036
9151160612
main91511-60612
91511J0625
main91511-J0625
9151281018
main91512-81018
91621J0612
main91621-J0612
9415080641
main94150-80641
52 parts on this diagram · 2 diagrams in section
