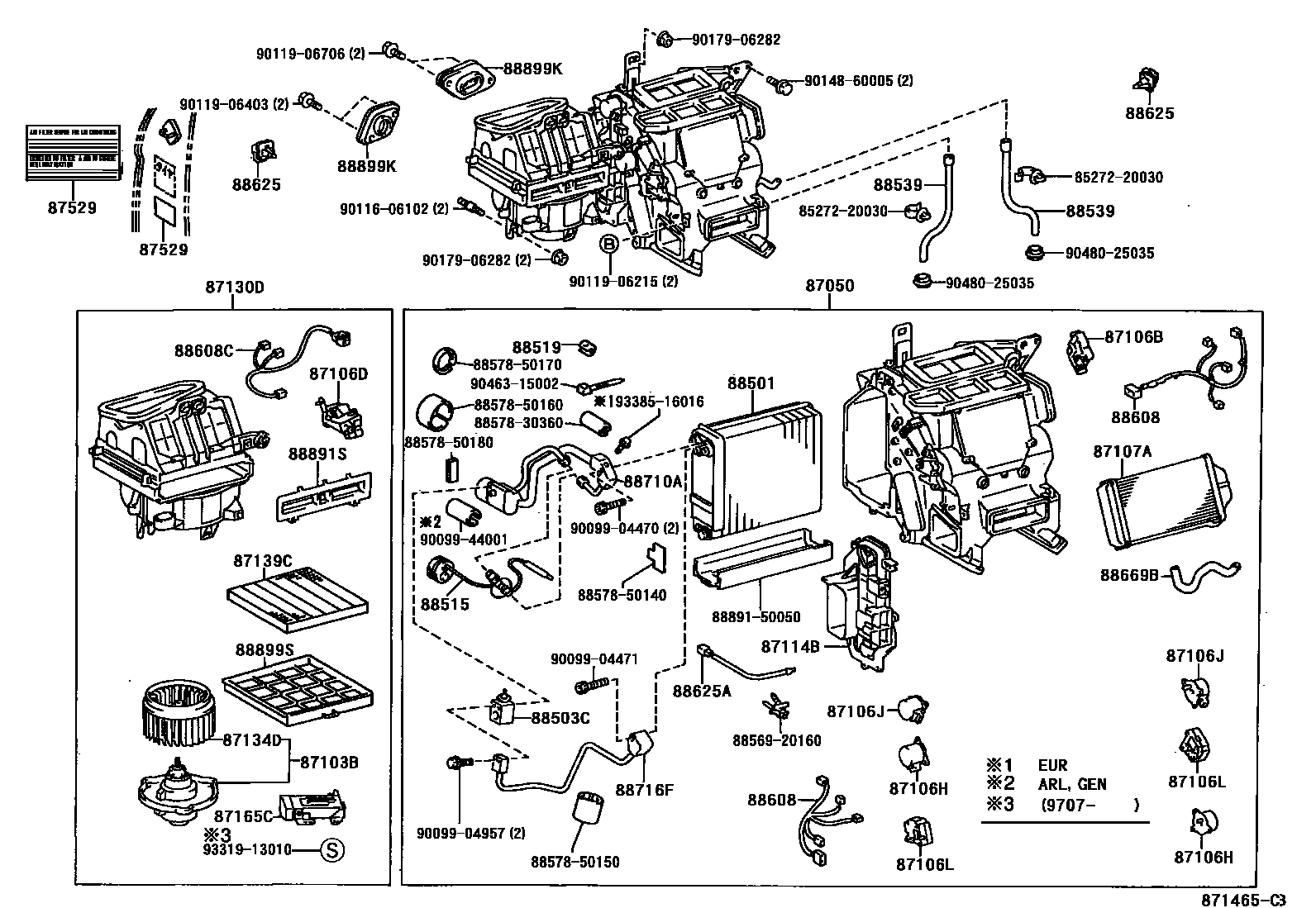

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1REAR COOLER 0004 1O RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-50011iUCF20..LHD..EUR199707-200008

main87050-50020iUCF20..LHD199410-199602

main87050-50021iUCF20..V;UCF20..LHD..EUR..4FC199602-200008

main87050-50030iUCF20..ARL,GEN199410-199602

sub87050-50050

main87050-50031iUCF20..ARL,GEN199602-199703

main87050-50032iUCF20..RHD..5FC;UCF20..(ARL,GEN)..4FC199703-200008

main87050-50040iUCF20..RHD..EUR199410-199602

sub87050-50060

main87050-50041iUCF20..RHD..EUR199602-199703

main87050-50042iUCF20..RHD..EUR199703-199707

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50030iUCF20..LHD199410-199707

main87103-50040iUCF20..RHD199410

main87103-50050iUCF20..LHD199707-200001

main87103-60250iUCF20..LHD200001

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-50220iUCF20199410

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-50240iUCF20..LHD199410-199707

main87106-50250iUCF20..RHD199410-199707

main87106-50260iUCF20..LHD199707

main87106-50270iUCF20..RHD199707

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-50160×2iUCF20..RHD199410

main87106-50170×2iUCF20..LHD199410

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-50160×2iUCF20..LHD199410

main87106-50170×2iUCF20..RHD199410

87106LSERVO SUB-ASSY, DAMPER

main87106-50180iUCF20..LHD199410

DRIVER SIDE

main87106-50190iUCF20..LHD199410

PASSENGER SIDE

main87106-50200iUCF20..RHD199410

DRIVER SIDE

main87106-50210iUCF20..RHD199410

PASSENGER SIDE

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-50030iUCF20199410

87114BCOVER, HEATER

main87114-50010iUCF20..LHD199410

main87114-50020iUCF20..RHD199410

87130DBLOWER ASSY

main87130-50010iUCF20..LHD199410-199707

main87130-50020iUCF20..RHD199410-199707

main87130-50030iUCF20..LHD199707

main87130-50040iUCF20..RHD199707

87134DFAN, BLOWER, NO.2

main87134-50010iUCF20..LHD199410

main87134-50020iUCF20..RHD199410

87139CFILTER, CLEAN AIR

main87139-50010iUCF20199410-200008

87165CCONTROL, BLOWER MOTOR

main87165-22040iUCF20..RHD199707-200004

main87165-22050iUCF20..LHD199707-200004

main87165-50010iUCF20199410-199707

sub87165-50020

87529PLATE, AIR FILTER CAUTION

main87529-50010iUCF20199707

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-50130iUCF20..LHD199410

main88501-50140iUCF20..RHD199410

88503CREGULATOR SUB-ASSY, PRESSURE

main88503-50170iUCF20199410

88515VALVE, COOLER EXPANSION

main88515-50120iUCF20..V..5FC;UCF20..(EUR,V)..4FC199410

main88515-50140iUCF20..RHD..5FC;UCF20..(ARL,GEN)..4FC199410

main88515-50150iUCF20..LHD..EUR199707

88519HOLDER, REMOTE BULB

main88519-22030iUCF20199410

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-50040×2iUCF20199410

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-50140iUCF20199410-199510

DRIVER SIDE

main88608-50150iUCF20..LHD199410

PASSENGER SIDE

main88608-50170iUCF20..RHD199410

PASSENGER SIDE

main88608-50220iUCF20..LHD199510

DRIVER SIDE

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-50180iUCF20199410-199707

main88608-50230iUCF20199707

88625THERMISTOR, COOLER, NO.1

main88625-50130×2iUCF20199410

88625ATHERMISTOR, COOLER NO.2

main88625-50140iUCF20199410

88669BHOSE, COOLER AIR

main88669-50030iUCF20..LHD199410

main88669-50040iUCF20..RHD199410

88710ATUBE ASSY, AIR CONDITIONER

main88710-50481iUCF20..LHD..EUR199707

main88710-50490iUCF20..LHD199410-199502

main88710-50491iUCF20..V;UCF20..LHD..EUR..4FC199502

main88710-50500iUCF20..ARL,GEN199410-199502

main88710-50501iUCF20..RHD..5FC;UCF20..(ARL,GEN)..4FC199502

main88710-50510iUCF20..RHD..EUR199410-199502

main88710-50511iUCF20..RHD..EUR199502-199707

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-50340iUCF20..LHD199410

main88716-50350iUCF20..RHD199410

88891SCOVER, COOLER, NO.1

main88891-50030iUCF20199410

88899KPLATE, COVER

main88899-50020iUCF20199410

COOLER

main88899-50030iUCF20..LHD199410

HEATER

main88899-50040iUCF20..RHD199410-199703

HEATER

main88899-50041iUCF20..RHD199703

HEATER

88899SFRAME, FRONT COOLER

main88899-50050iUCF20199410

8527220030CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20030

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857830360PAKING, COOLER AIR DUCT

main88578-30360

8857850140PAKING, COOLER AIR DUCT

main88578-50140

8857850150PAKING, COOLER AIR DUCT

main88578-50150

8857850160PAKING, COOLER AIR DUCT

main88578-50160

8857850170PAKING, COOLER AIR DUCT

main88578-50170

8857850180PAKING, COOLER AIR DUCT

main88578-50180

8889150050PACKING (FOR COOLER)

main88891-50050

9009904470

main90099-04470

9009904471

main90099-04471

9009904957

main90099-04957

9009944001

main90099-44001

9011606102

main90116-06102

9011906215

main90119-06215

9011906403

main90119-06403

9011906706

main90119-06706

9014860005

main90148-60005

9017906282

main90179-06282

9046315002

main90463-15002

9048025035

main90480-25035

9331913010

main93319-13010

9338516016

main93385-16016

52 parts on this diagram · 4 diagrams in section
