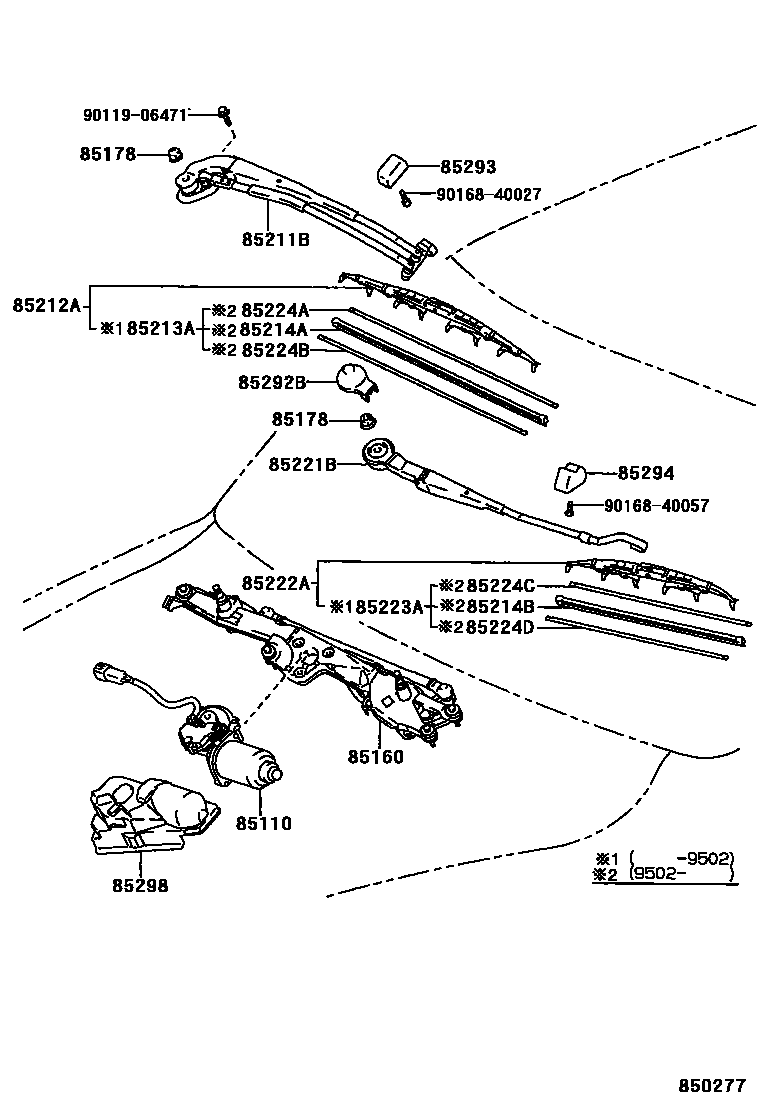

WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
RH
LH
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85213ARUBBER, WIPER BLADE, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85223ARUBBER, FRONT WIPER BLADE, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85292BCAP, FRONT WIPER ARM HEAD
85293STEP, LINEAR WIPER, RH
85294STEP, LINEAR WIPER, LH
9011906471
main90119-06471
9016840027
main90168-40027
9016840057
main90168-40057
22 parts on this diagram · 2 diagrams in section
