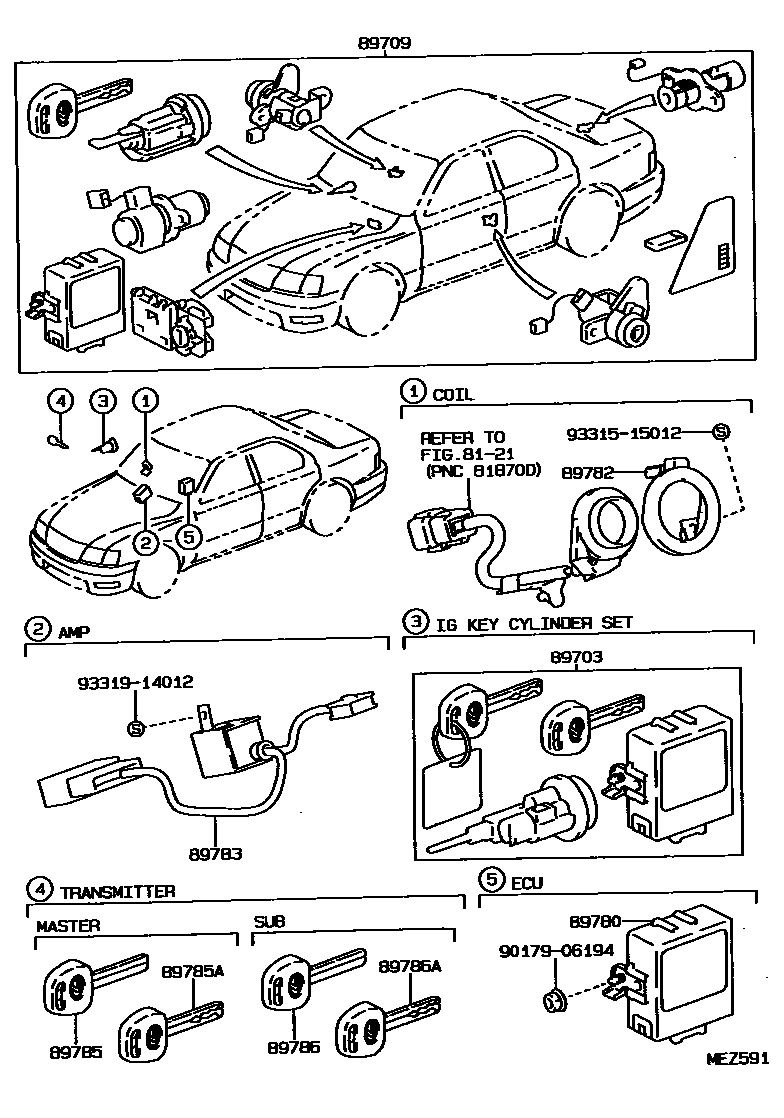

ANTI-THEFT DEVICE

0001 1 0002 1 0003 1 0004 1 0005 1

8121INTERIOR LAMP

→ Go to FIG 81-21

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-50010iUCF20..RHD..EUR199508-199608

main89703-50020iUCF20..LHD..EUR199508-199707

89709COMPUTER SET, TRANSPONDER KEY

main89709-50010iUCF20..GEN; UCF20..RHD..(ARL,EUR)199608-199707

HONG KONG SPEC

main89709-50020iUCF20..LHD..EUR199508-199707

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-50010iUCF20..GEN; UCF20..RHD..(ARL,EUR)199608-199707

HONG KONG SPEC

main89780-50020iUCF20..LHD..EUR199508-199707

89782COIL, TRANSPONDER KEY

main89782-30010iUCF20..ARL,EUR;UCF20..(GEN,V)..5FC199608

89783AMPLIFIER, TRANSPONDER KEY

main89783-50010iUCF20..GEN; UCF20..RHD..(ARL,EUR)199608-199707

HONG KONG SPEC

main89783-50020iUCF20..LHD..EUR199508-199608

main89783-50030iUCF20..LHD..EUR199608-199707

main89783-50040iUCF20..RHD199707

main89783-50050iUCF20..LHD199707

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-30020iUCF20..EUR199508-199608

main89785-50030iUCF20199707

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-50010iUCF20..EUR199508-199608

main89785-50040iUCF20199707

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-30020iUCF20..EUR199508-199608

main89786-50030iUCF20199707

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50010iUCF20..EUR199508-199608

main89786-50040iUCF20199707

9017906194

main90179-06194

9331515012

main93315-15012

9331914012

main93319-14012

13 parts on this diagram · 5 diagrams in section
