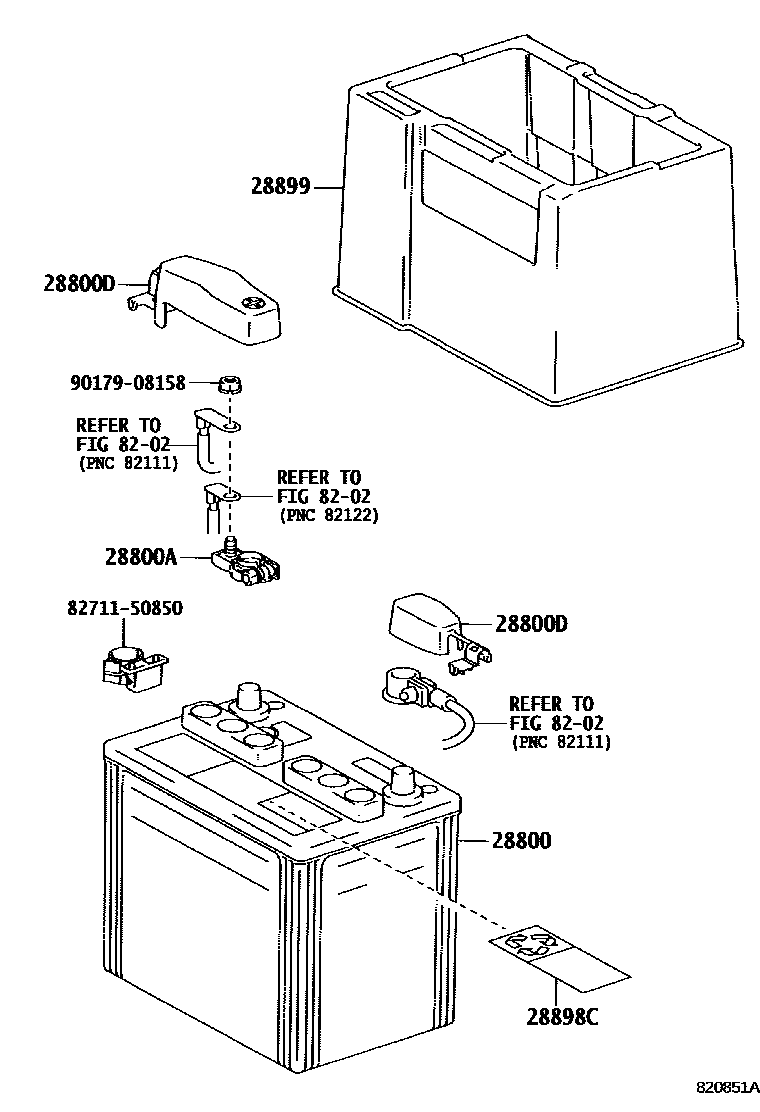

BATTERY & BATTERY CABLE

28800BATTERY

main28800-64130i1UZFE..UCF20199410

80D26L,YUASA

main28800-76080i1UZFE..UCF20200001

80D26L,PANASONIC

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i1UZFE..UCF20199410

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50050i1UZFE..UCF20199410

POSITIVE SIDE

main82821-50060i1UZFE..UCF20199410

NEGATIVE SIDE

28898CPLATE, BATTERY

main28898-46010i1UZFE..UCF20..LHD..EUR199410-199707

NORWAY SPEC

28899INSULATOR, BATTERY

main28899-50030i1UZFE..UCF20199410

8202WIRING & CLAMP

→ Go to FIG 82-02

8271150850WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50850

9017908158

main90179-08158

8 parts on this diagram · 1 diagram in section
