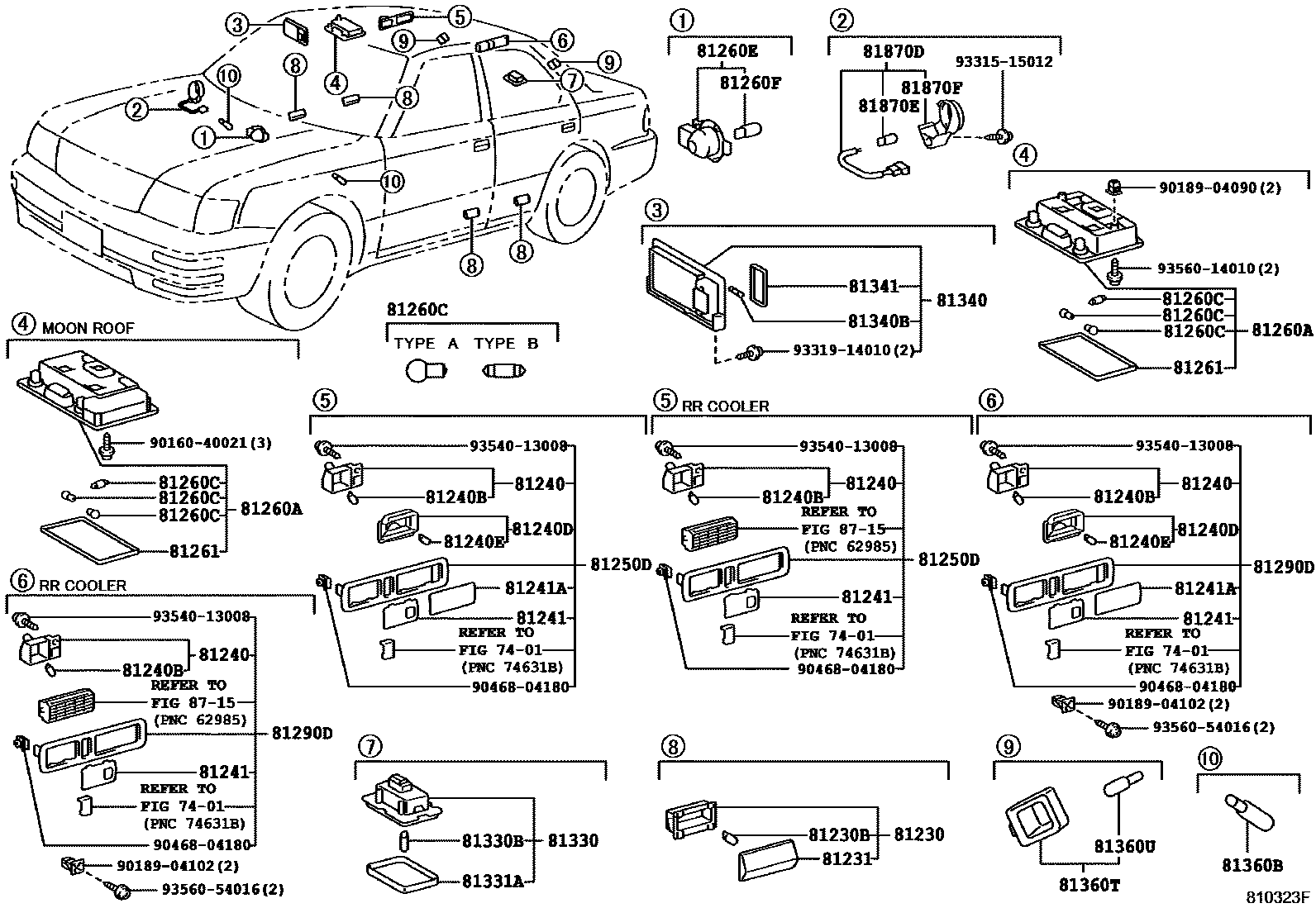

INTERIOR LAMP
7401ARMREST & VISOR
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#,RH
DK.BLUE GRAY,TRIM1#,2#,RH
AGATE,TRIM6#,RH
IVORY,TRIM0#,LH
DK.BLUE GRAY,TRIM1#,2#,LH
AGATE,TRIM6#,LH
IVORY,TRIM0#,RH
BLUE GRAY,TRIM1#,2#,RH
AGATE,TRIM6#,RH
IVORY,TRIM0#,LH
BLUE GRAY,TRIM1#,2#,LH
AGATE,TRIM6#,LH
IVORY,TRIM0#,RH; W(REAR COOLER),IVORY,TRIM0#,RH
BLUE GRAY,TRIM1#,2#,RH; W(REAR COOLER),BLUE GRAY,TRIM1#,2#,RH
W(REAR COOLER),AGETE,TRIM6#,RH
IVORY,TRIM0#,LH; W(REAR COOLER),IVORY,TRIM0#,LH
BLUE GRAY,TRIM1#,2#,LH; W(REAR COOLER),BLUE GRAY,TRIM1#,2#,LH
W(REAR COOLER),AGETE,TRIM6#,LH
81240BBULB, ROOM LAMP, NO.1
12V 5W
81240DLAMP ASSY, ROOM, NO.2
81240EBULB, ROOM LAMP, NO.2
12V 5W
81241ALENS, ROOM LAMP, NO.2
81250DLAMP ASSY, REAR ROOM, RH
IVORY,TRIM0#
DARK BLUE GRAY,TRIM1#,2#
AGATE,TRIM6#
IVORY,TRIM0#; W(REAR AIR CONDITIONER),IVORY,TRIM0#
DARK BLUE GRAY,TRIM1#,2#; W(REAR AIR CONDITIONER),DARK BLUE GRAY,TRIM1#,2#
W(REAR AIR CONDITIONER),AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#,2#
AGATE,TRIM6#
IVORY,TRIM0#; W(REAR COOLER),IVORY,TRIM0#
BLUE GRAY,TRIM1#,2#; W(REAR COOLER),BLUE GRAY,TRIM1#,2#
W(REAR COOLER),AGATE,TRIM6#
81260ALAMP ASSY, MAP
IVORY,TRIM0#
BLUE GRAY,TRIM1#,2#
AGATE,TRIM6#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),BLUE GRAY,TRIM1#,2#
W(MOON ROOF),AGATE,TRIM6#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),BLUE GRAY,TRIM1#,2#
W(MOON ROOF),AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#,2#
AGATE,TRIM6#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),BLUE GRAY,TRIM1#,2#
W(MOON ROOF),AGATE,TRIM6#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),BLUE GRAY,TRIM1#,2#
W(MOON ROOF),AGATE,TRIM6#
81260CBULB(FOR MAP LAMP)
12V 8W,TYPE A:REFER TO ILLUSTRATION
12V 10W,TYPE A:REFER TO ILLUSTRATION
12V 8W,TYPE B:REFER TO ILLUSTRATION
12V 10W,TYPE B:REFER TO ILLUSTRATION
81260ELAMP ASSY, GLOVE BOX, NO.2
81260FBULB(FOR GLOVE BOX LAMP)
12V 1.2W W/O SOCKET
81261LENS AND COVER, MAP LAMP
W(MOON ROOF)
W(MOON ROOF)
81290DLAMP ASSY, REAR ROOM, LH
IVORY,TRIM0#
DARK BLUE GRAY,TRIM1#,2#
AGATE,TRIM6#
IVORY,TRIM0#; W(REAR AIR CONDITIONER),IVORY,TRIM0#
DARK BLUE GRAY,TRIM1#,2#; W(REAR AIR CONDITIONER),DARK BLUE GRAY,TRIM1#,2#
W(REAR AIR CONDITIONER),AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#,2#
AGATE,TRIM6#
IVORY,TRIM0#; W(REAR COOLER),IVORY,TRIM0#
BLUE GRAY,TRIM1#,2#; W(REAR COOLER),BLUE GRAY,TRIM1#,2#
W(REAR COOLER),AGATE,TRIM6#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
IVORY,TRIM0#,LH
BLUE GRAY,TRIM1#,2#,LH
AGATE,TRIM6#,LH
IVORY,TRIM0#,LH
BLUE GRAY,TRIM1#,2#,LH
AGATE,TRIM6#,LH
IVORY,TRIM0#,LH
BLUE GRAY,TRIM1#,2#,LH
AGATE,TRIM6#,LH
IVORY,TRIM0#,RH
BLUE GRAY,TRIM1#,2#,RH
AGATE,TRIM6#,RH
IVORY,TRIM0#,RH
BLUE GRAY,TRIM1#,2#,RH
AGATE,TRIM6#,RH
IVORY,TRIM0#,RH
BLUE GRAY,TRIM1#,2#,RH
AGATE,TRIM6#,RH
81340BBULB (FOR VANITY LAMP)
12V 3W
81341LENS, VANITY LAMP
81360BBULB, STEP OR SPOT LAMP
14V 1.4W
81360TLAMP ASSY, SPOT
IVORY,TRIM0#,RH
BLUE GRAY,TRIM1#,2#,RH
AGATE,TRIM6#,RH
IVORY,TRIM0#,LH
BLUE GRAY,TRIM1#,2#,LH
AGATE,TRIM6#,LH
81360UBULB, SPOT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12V 1.2W W/O SOCKET
81870FCAP, KEY CYLINDER LAMP BULB
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9016040021
main90160-40021
9018904090
main90189-04090
9018904102
main90189-04102
9046804180
main90468-04180
9331515012
main93315-15012
9331914010
main93319-14010
9354013008
main93540-13008
9356014010
main93560-14010
9356054016
main93560-54016
39 parts on this diagram · 1 diagram in section
