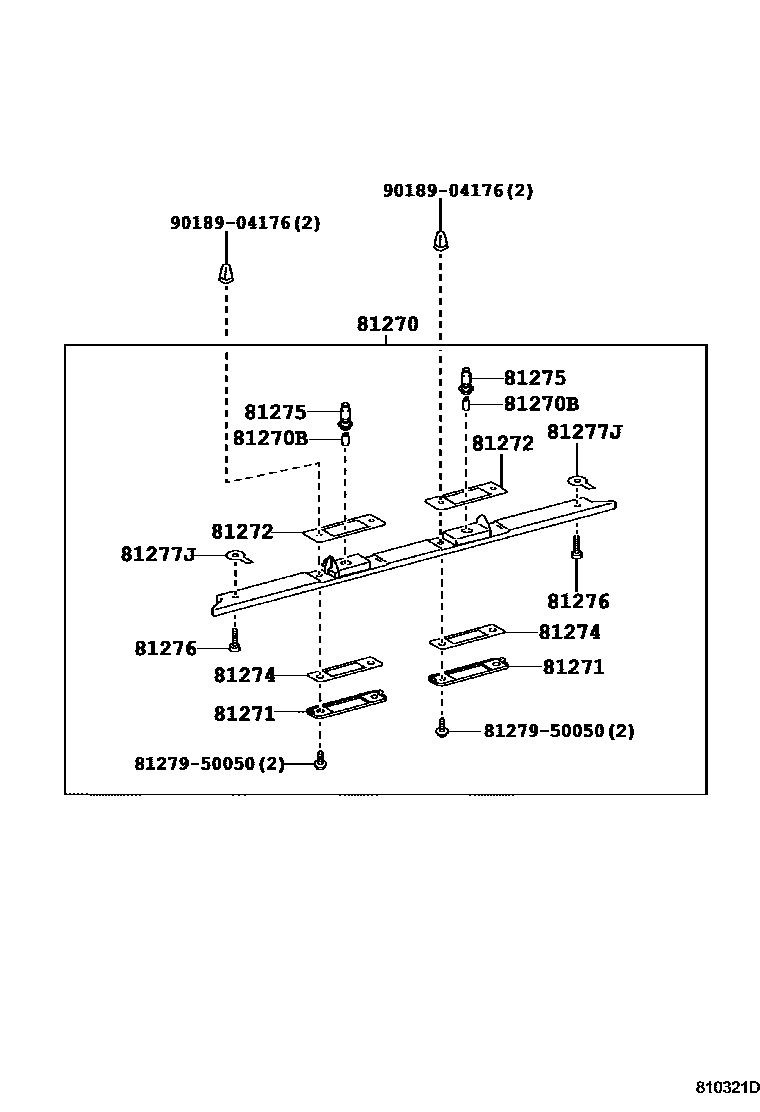

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-50050iUCF20..GEN,V199410-199707

main81270-50060iUCF20..ARL,EUR199410-199707

main81270-50070iUCF20..GEN,V199707

main81270-50080iUCF20..ARL,EUR199707

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iUCF20199410

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-50050iUCF20199410

RH

main81278-50050iUCF20199410

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-50050×2iUCF20199410

81274GASKET, LICENSE PLATE LAMP BODY

main81274-50050×2iUCF20199410

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main90075-99011×2iUCF20199410

81276RIM, LICENSE PLATE LAMP

main81276-50050×2iUCF20199410

81277JGASKET, LICENSE PLATE LAMP BODY, NO.2

main81277-50050×2iUCF20199410

8127950050WASHER, SIDE TURN SIGNAL LAMP

main81279-50050

9018904176

main90189-04176

10 parts on this diagram · 1 diagram in section
