HEADLAMP

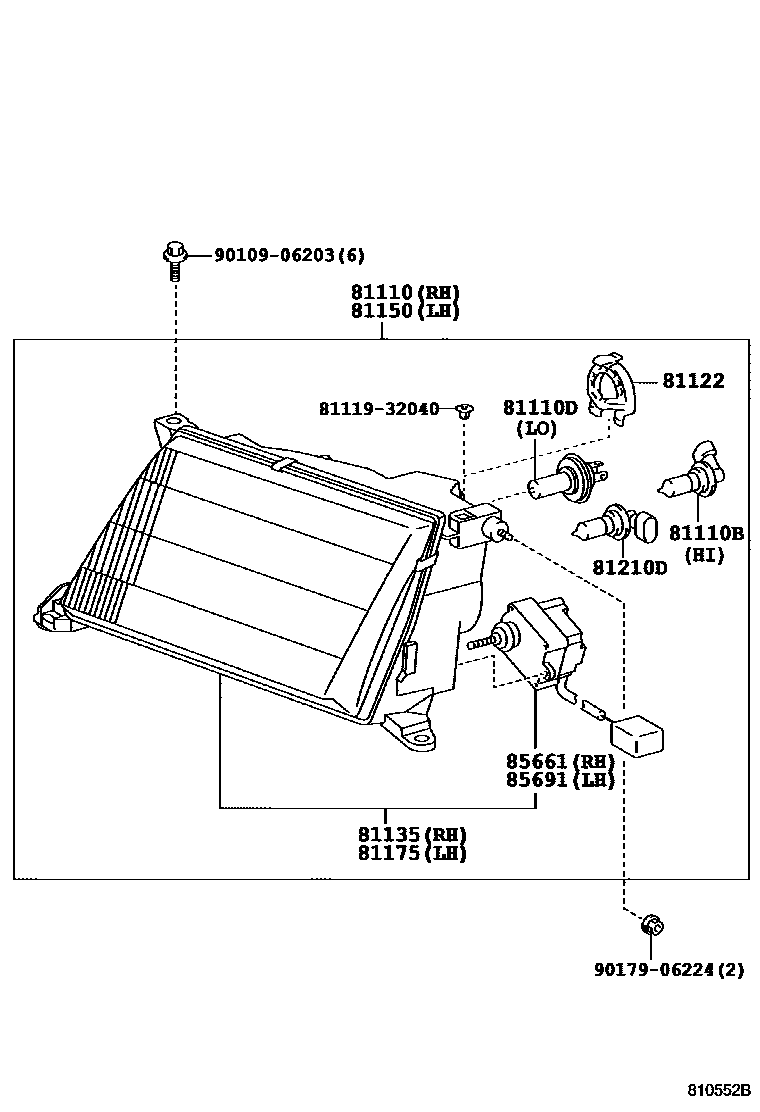

Parts diagram

81110HEADLAMP ASSY, RH

main81110-50120i199410-199707

main81110-50130i199410-199707

main81110-50140i199410-199707

SOUTH AFRICA SPEC

main81110-50150i199410-199707

main81110-50190i199707

main81110-50200i199707

LATIN AMERICA SPEC OR CHINA SPEC

main81110-50210i199707

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i199410-199507

12V 65W

main90981-13046×2i199410-199707

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-20002×2i199707

85V 35W

main90981-22002×2i199410-199707

12V 60/55W,*HAL *WH

81122HOLDER, HEADLAMP

main81122-50100×2i199410-199707

main81122-50180×2i199707

81135UNIT ASSY, HEADLAMP, RH

main81130-50120i199410-199707

main81130-50130i199410-199707

main81130-50140i199410-199707

SOUTH AFRICA SPEC

main81130-50150i199410-199707

main81130-50190i199707

main81130-50200i199707

LATIN AMERICA SPEC OR CHINA SPEC

main81130-50210i199707

81150HEADLAMP ASSY, LH

main81150-50120i199410-199707

main81150-50130i199410-199707

main81150-50140i199410-199707

SOUTH AFRICA SPEC

main81150-50150i199410-199707

main81150-50190i199707

main81150-50200i199707

LATIN AMERICA SPEC OR CHINA SPEC

main81150-50210i199707

81175UNIT ASSY, HEADLAMP, LH

main81170-50120i199410-199707

main81170-50130i199410-199707

main81170-50140i199410-199707

SOUTH AFRICA SPEC

main81170-50150i199410-199707

main81170-50190i199707

main81170-50200i199707

LATIN AMERICA SPEC OR CHINA SPEC

main81170-50210i199707

81210DBULB, FOG LAMP

main90080-81040×2i199410-199507

12V 51W

main90981-13047×2i199410-199707

12V 51W,HALOGEN

85661MOTOR, HEADLAMP LEVELING, RH

main85661-50020i199410-199707

main85661-50030i199707

85691MOTOR, HEADLAMP LEVELING, LH

main85661-50020i199410-199707

8111932040SCREW, HEADLAMP

main81119-32040

9010906203

main90109-06203

9017906224

main90179-06224

13 parts on this diagram · 3 diagrams in section
