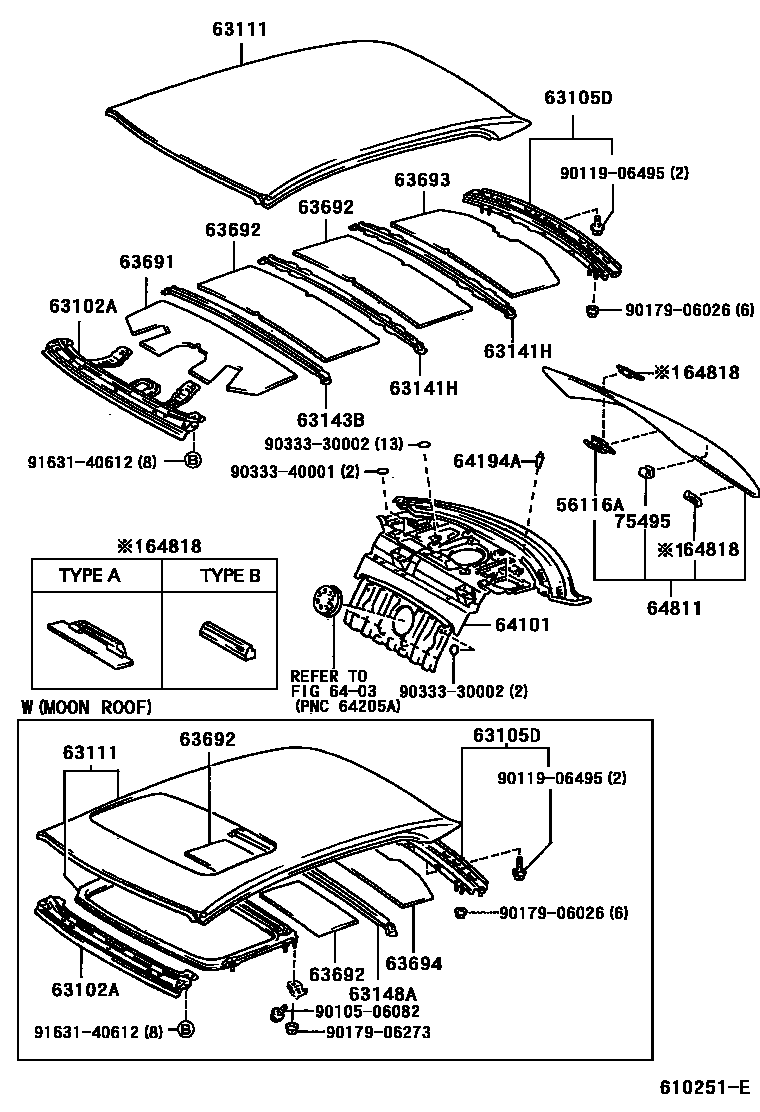

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56116ASPACER, WINDSHIELD GLASS

main56116-22080×2iUCF20199410-199707

main56116-50020×2iUCF20199707

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-50030iUCF20199410-199808

main63102-50031iUCF20199808

main63102-50040iUCF20199410-199808

W(MOON ROOF)

main63102-50041iUCF20199808

W(MOON ROOF)

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-50020iUCF20199410

63111PANEL, ROOF

main63111-50030iUCF20199410-199808

main63111-50031iUCF20199808

main63111-50900iUCF20199410-199808

W(MOON ROOF)

main63111-50901iUCF20199808

W(MOON ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-50020×2iUCF20199410

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-50020iUCF20199410

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-50020iUCF20199410

63691PAD, ROOF SILENCER, NO.21

main63691-50020iUCF20199410-199707

main63691-50030iUCF20199707

63692PAD, ROOF SILENCER, NO.22

main63692-50010×2iUCF20199410-199707

main63692-50020×2iUCF20199410

W(MOON ROOF)

main63692-50030×2iUCF20199707

63693PAD, ROOF SILENCER, NO.23

main63693-50010iUCF20199410-199707

main63693-50020iUCF20199707

63694PAD, ROOF SILENCER, NO.24

main63694-50010iUCF20199410-199707

main63694-50020iUCF20199707

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

64101PANEL SUB-ASSY, UPPER BACK

main64101-50080iUCF20..EUR,GEN199410-199904

main64101-50081iUCF20..EUR,GEN199904-200008

main64101-50090iUCF20..ARL199410-199904

main64101-50091iUCF20..ARL199904-199908

main64101-50101iUCF20..ARL199908-200008

main64101-50110iUCF20..GEN199410-199707

W(REAR AIR CONDITIONER)

main64101-50111iUCF20..V199904-200008

W(REAR COOLER)

main64101-50120iUCF20..ARL199707-199904

W(REAR COOLER)

main64101-50121iUCF20..ARL199904-199908

W(REAR COOLER)

main64101-50122iUCF20..ARL199908-200008

W(REAR COOLER)

main64101-50130iUCF20..ARL; UCF20..V199808-199904

SINGAPORE OR THAILAND SPEC; W(REAR POWER SEAT)

main64101-50131iUCF20..ARL; UCF20..V199904-200008

SINGAPORE OR THAILAND SPEC; W(REAR POWER SEAT)

64194APAD, BACK PANEL SILENCER, UPPER

main64194-30010iUCF20199707

64811GLASS, BACK WINDOW

main64810-50180iUCF20199410-199707

*TT,T=4.0,GREEN

main64810-50270iUCF20199707

*UVCT,T=5.0,GREEN

64818SPACER, BACK WINDOW GLASS

main56115-30090×2iUCF20199410-199707

TYPE A:REFER TO ILLUSTRATION

main64818-50030×3iUCF20199410

TYPE B:REFER TO ILLUSTRATION

75495CLIP, OUTSIDE MOULDING, NO.4

main75495-50030iUCF20199410-199707

main75495-50040iUCF20199707

9010506082

main90105-06082

9011906495

main90119-06495

9017906026

main90179-06026

9017906273

main90179-06273

9033330002

main90333-30002

9033340001

main90333-40001

9163140612

main91631-40612

24 parts on this diagram · 2 diagrams in section
