SIDE MEMBER

53834BPLATE, FRONT FENDER SUPPORT

main53834-30040iUCF20199410-199707

T=2.0

main53834-30050iUCF20199410-199707

T=1.0

58377CRETAINER, LOWER BACK TRIM, RH

main58377-50020iUCF20199410

58378FRETAINER, LOWER BACK TRIM, LH

main58378-50020iUCF20199410

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-50020iUCF20199410-199605

main61037-50022iUCF20199605-199707

main61037-50030iUCF20199707

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-50020iUCF20199410-199605

main61038-50022iUCF20199605-199707

main61038-50030iUCF20199707

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-50030iUCF20..RHD199410

main61101-50040iUCF20..RHD199410

W(MOON ROOF)

main61101-50050iUCF20..LHD199410

main61101-50060iUCF20..LHD199410

W(MOON ROOF)

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-50030iUCF20..RHD199410

main61102-50040iUCF20..RHD199410

W(MOON ROOF)

main61102-50050iUCF20..LHD199410-199608

main61102-50051iUCF20..LHD199608

main61102-50060iUCF20..LHD199410-199608

W(MOON ROOF)

main61102-50061iUCF20..LHD199608

W(MOON ROOF)

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-50010iUCF20199410-199605

main61106-50011iUCF20199605

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-50010iUCF20..RHD199410-199604

main61107-50011iUCF20..LHD199410-199604

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-50010iUCF20199605

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-50010iUCF20199605

61113BCUSHION(FOR CENTER PILLER)

main90541-10027×2iUCF20199410

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-50020iUCF20199410-199605

main61131-50021iUCF20199605

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-50020iUCF20199410-199605

main61132-50021iUCF20199605

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-50020iUCF20199410

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-50020iUCF20199410

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-50020iUCF20..LHD199410

61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH

main61182-50020iUCF20..RHD199410

61195DBRACKET, COWL SIDE TRIM, LH

main61195-50030iUCF20..LHD199608

61211RAIL, ROOF SIDE, OUTER RH

main61211-50020iUCF20199410

61212RAIL, ROOF SIDE, OUTER LH

main61212-50020iUCF20199410

61231RAIL, ROOF SIDE, INNER RH

main61231-50020iUCF20199410

61232RAIL, ROOF SIDE, INNER LH

main61232-50020iUCF20199410

61261CHANNEL, ROOF DRIP, RH

main61261-50020iUCF20199410

61261EPOP NUT

main61159-50020×3iUCF20199410

61262CHANNEL, ROOF DRIP, LH

main61262-50020iUCF20199410

61262DPOP NUT

main61159-50020×3iUCF20199410

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-50020iUCF20199410

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-50020iUCF20199410

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-50020×2iUCF20199410

61311BPILLAR, CENTER BODY, OUTER RH

main61311-50010iUCF20199410

61312BPILLAR, CENTER BODY, OUTER LH

main61312-50010iUCF20199410

61339BSEAL, CENTER BODY PILLAR, INNER NO.1

main61339-50020×2iUCF20199410

61343APILLAR, CENTER BODY, INNER RH

main61343-50020iUCF20199410

61344APILLAR, CENTER BODY, INNER LH

main61344-50020iUCF20199410-199704

main61344-50021iUCF20199704

61427REINFORCEMENT, ROCKER PANEL, NO.5 RH

main61427-50010iUCF20199410

61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH

main61428-50010iUCF20199410

61611PANEL, QUARTER, RH

main61601-50030iUCF20199410

61612PANEL, QUARTER, LH

main61602-50050iUCF20199410-199507

main61602-50051iUCF20199707-200008

W(POLE ANTENNA)

main61602-50060iUCF20..LHD..EUR199707-199708

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-50020iUCF20199410

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-50020iUCF20199410

61623AEXTENSION, QUARTER PANEL, OUTER RH

main61623-50010iUCF20199410

61624AEXTENSION, QUARTER PANEL, OUTER LH

main61624-50010iUCF20199410

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-50010iUCF20199410

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-50010iUCF20199410

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-50010iUCF20199410

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-50010iUCF20199410

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-50928iUCF20199410-200008

main61607-50929iUCF20..LHD..EUR199410-200008

W(AIR SUSPENSION)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-50918iUCF20199410-200008

main61608-50919iUCF20..LHD..EUR199410-200008

W(AIR SUSPENSION)

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-50020iUCF20..GEN..5FC;UCF20..ARL,EUR,V199410

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-50020iUCF20..GEN..5FC;UCF20..ARL,EUR,V199410

61649APLATE, QUARTER WHEEL HOUSE

main61649-50010iUCF20199410

61649CPLATE, QUARTER WHEEL HOUSE, LH

main61649-50010iUCF20199410

61711PANEL, ROOF SIDE, OUTER RH

main61711-50020iUCF20199410

61712PANEL, ROOF SIDE, OUTER LH

main61712-50020iUCF20199410

61731BPANEL, ROOF SIDE, INNER RH

main61731-50010iUCF20199410

61732BPANEL, ROOF SIDE, INNER LH

main61732-50010iUCF20199410

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-50010iUCF20199410

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-50010iUCF20199410

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-50030iUCF20199410-199707

main61815-50040iUCF20..EUR,V199707

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61816-50030iUCF20199410-199707

main61816-50040iUCF20..EUR,V199707

61824DPLATE, NOISE CONTROL, NO.1

main61824-50020×2iUCF20..EUR,V;UCF20..(ARL,GEN)..4FC199410

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-50030iUCF20199410-199608

main62381-50031iUCF20199608

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-50030iUCF20199410-199608

main62382-50031iUCF20199608

62385DSEAL, SIDE WINDOW, NO.1

main62385-50010×2iUCF20199609

64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH

main64201-50900iUCF20199410-200008

64202ASTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH

main64202-50900iUCF20199410-200008

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-50010×2iUCF20199410

9017908040

main90179-08040

9026905010

main90269-05010

9033330002

main90333-30002

9033340001

main90333-40001

9046805045

main90468-05045

9048022022

main90480-22022

9095001362

main90950-01362

9095001392

main90950-01392

9095001841

main90950-01841

9162160816

main91621-60816

9165140612

main91651-40612

9165540820

main91655-40820

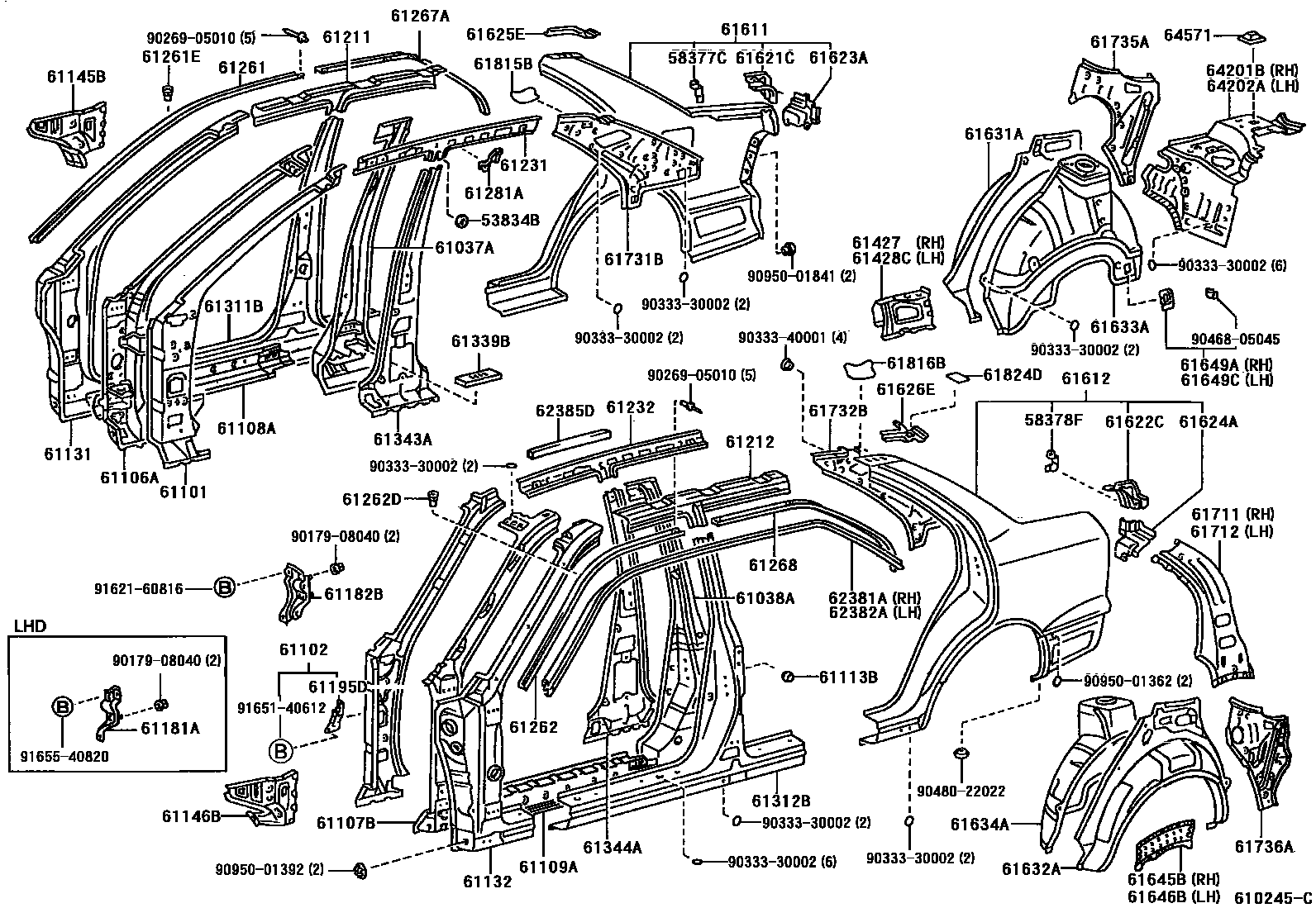

80 parts on this diagram · 1 diagram in section
